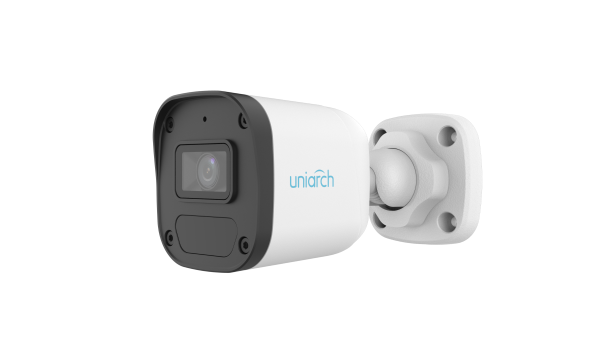

UNV - IPC-B134-AF40-ECO - 4MP Fixed IR Mini Bullet Network Camera
Product Overview
The Uniview IPC-B134-AF40-ECO is a 4MP fixed infrared mini bullet network camera with a 4.0 mm lens. It delivers detailed 2560 × 1440 video, Smart IR night vision, accurate Human Body Detection 2.0, and an integrated microphone for dependable surveillance.
The compact camera supports Ultra 265 compression, PoE power, ROI encoding, and IP67 weather protection for indoor and outdoor installations.
Key Configuration
Model: IPC-B134-AF40-ECO | Resolution: 4MP, 2560 × 1440 at up to 25 fps | Lens: 4.0 mm fixed, F2.0 | Connectivity: 10/100 Mbps RJ45 with IEEE 802.3af PoE | Protection: IP67
Key Features
- · 4MP 1/3.0-inch CMOS sensor with 2560 × 1440 video at up to 25 fps
- · 4.0 mm fixed lens with 74.6° horizontal field of view
- · Smart IR illumination up to 30 m with automatic or manual control
- · Ultra 265, H.265, and H.264 video compression
- · 2D/3D digital noise reduction, DWDR, HLC, BLC, and digital defog
- · ROI encoding and dual-stream video transmission
- · Motion detection, audio detection, and Human Body Detection 2.0
- · Built-in microphone with G.711U, G.711A, and AAC-LC audio support
- · IEEE 802.3af PoE power with maximum consumption of 2.5 W
- · IP67 housing, 4 kV surge protection, and operation from -30°C to 60°C
Technical Context
The 4.0 mm lens provides a more focused field of view than the 2.8 mm version, making it suitable for scenes requiring narrower coverage. Smart IR maintains clear monochrome images in low-light conditions up to 30 m, while Ultra 265 and ROI encoding help reduce network bandwidth and storage requirements.
Installation Notes
The mini bullet housing supports 3-axis adjustment and PoE installation through a 10/100 Mbps Ethernet connection. Its IP67 enclosure is suitable for outdoor use, with optional junction-box, pole-mount, cable-gland, and corner-mount accessories available.
| Product Information | |
| Product Model | IPC-B134-AF40-ECO |
| Product Type | 4MP fixed IR mini bullet network camera |
| Image Sensor | 1/3.0" CMOS |
| Lens | 4.0 mm fixed lens, F2.0 |
| Mounting Adjustment | 3-axis adjustment |
| Video and Lens | |
| Maximum Resolution | 4MP (2560 × 1440) |
| Frame Rates | 4MP: up to 25 fps 3MP: up to 30 fps 1080p: up to 30 fps |
| Minimum Illumination | 0.003 lux at F2.0, AGC on 0 lux with IR illumination |
| Day/Night | IR-cut filter with automatic switching |
| Shutter | Auto / Manual, 1–1/100,000 s |
| Signal-to-Noise Ratio | >52 dB |
| WDR | DWDR |
| Horizontal Field of View | 74.6° |
| Vertical Field of View | 40.5° |
| Diagonal Field of View | 89.1° |
| DORI Distance | |
| Detect | 90.0 m (295.3 ft) |
| Observe | 36.0 m (118.1 ft) |
| Recognize | 18.0 m (59.1 ft) |
| Identify | 9.0 m (29.5 ft) |
| IR Illumination | |
| IR Illumination Distance | Up to 30 m (98.4 ft) |
| Supplemental Light | IR |
| Wavelength | 850 nm |
| IR Control | Auto / Manual |
| Video | |
| Main Stream | 4MP (2560 × 1440) at up to 25 fps 3MP (2304 × 1296) at up to 30 fps 1080p (1920 × 1080) at up to 30 fps |
| Sub Stream | 640 × 360, 2CIF (704 × 288), or CIF (352 × 288) at up to 30 fps |
| Video Compression | Ultra 265, H.265, H.264 |
| H.264 Profiles | Baseline, Main, High |
| Video Bit Rate | 128 Kbps–6144 Kbps |
| Video Streams | Dual streams |
| U-Code | Supported |
| OSD | Up to 4 OSD areas |
| Privacy Masking | Up to 4 areas |
| ROI | Supported |
| Image and Detection Features | |
| Image Functions | Auto/outdoor/fine-tune/sodium lamp/locked/Auto2/area white balance, 2D/3D DNR, Smart IR, HLC, BLC, and digital defog |
| Flip Modes | Normal, vertical, horizontal, and 180° |
| Basic Detection | Motion detection, audio detection, and Human Body Detection 2.0 |
| Audio and Network | |
| Microphone | Built-in microphone |
| Audio Compression | G.711U, G.711A, AAC-LC |
| Audio Bit Rate | G.711U/G.711A: 64 Kbps AAC-LC: 128 Kbps |
| Two-Way Audio | Not available |
| Audio Suppression | Supported |
| Sampling Rate | G.711U/G.711A: 8 kHz AAC-LC: 8 kHz, 16 kHz, 48 kHz |
| Network Interface | 1 × RJ-45 10/100 Mbps Base-TX Ethernet |
| Network Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, RTMP, and SNMP |
| Interoperability | SDK |
| Client Software | Mobile application and Uniarch client |
| Web Browser | Plug-in-free live view with Chrome 57+, Firefox 58+, and Edge 16+ |
| User Management | Up to 32 users with Administrator, Common User, and Operator levels |
| Security | Strong password, RTSP basic and digest authentication, HTTP digest authentication, WSSE and digest authentication for ONVIF, and encrypted log export |
| Interfaces | |
| Audio I/O | Not available |
| Alarm I/O | Not available |
| Built-in Speaker | Not available |
| Wi-Fi | Not available |
| Video Output | Not available |
| Electrical and Environmental | |
| Power Supply | PoE IEEE 802.3af |
| Power Consumption | Maximum 2.5 W |
| Ingress Protection | IP67 |
| Material | Plastic |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Storage Temperature | -30°C to 60°C (-22°F to 140°F) |
| Storage Humidity | ≤95% RH, non-condensing |
| Dimensions | 140 × 61 × 65 mm 5.5 × 2.4 × 2.6 in |
| Weight | 0.14 kg The datasheet lists 1.32 lb; this does not correspond to the stated metric weight. |
| Surge Protection | 4 kV |
| Certifications | |
| Certifications | CE-EMC, FCC, CE-LVD, CE-RoHS, WEEE |
