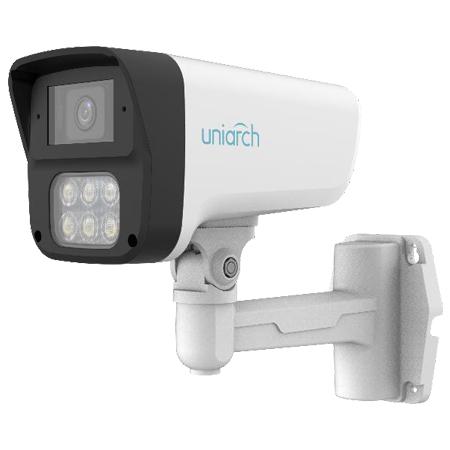

Uniarch 3mp Dual Light Bullet
Features:
Optics
• Day/night functionality
• Smart IR, up to 50m (164ft) IR distance
• Optical glass window with higher light transmittance
• IR anti-reflection window to increase the infrared transmittance
• 2D/3D DNR (Digital Noise Reduction)
• Built-in Mic
Compression
• Ultra 265, H.265, H.264
• ROI (Region of Interest)
Network
• ONVIF Conformance
Structure
• Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
• Wide voltage range of ±25%
• IP67
| IPC-B213-APF40W | |||||
| Camera | |||||
| Sensor | 1/2.8", progressive scan, CMOS | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on | ||||
| WDR | DWDR | ||||
| Lens | |||||
| Lens Type | 4.0mm @2.0, Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Angle of View (H) | 89.0° | ||||
| Angle of View (V) | 46.9° | ||||
| Angle of View (O) | 93.8° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4.0 | 73.5 | 29.4 | 14.7 | 7.3 | |
| Illuminator | |||||
| IR Range | Up to 50m (164ft) IR range | ||||
| White Light Range | Up to 30m (98ft) White light range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264 | ||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||
| Frame Rate | Main Stream: 3MP (2304*1296), Max 25fps;1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 4CIF (704*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||
| Video Bit Rate | 128 Kbps~6 Mbps | ||||
| U-code | Supported | ||||
| 9:16 Corridor Mode | N/A | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Smart IR | Supported | ||||
| Flip | Normal/Vertical/Horizontal/180° | ||||
| Dewarping | N/A | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Basic Detection | motion detection, human body detection, audio detection | ||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, RTMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Client | Uniarch Client Uniarch APP | ||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | |||||
| Interface | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Built-in Mic | Supported | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 6.0W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (L × W × H) | 170 × 86 × 93mm (6.7” × 3.4” × 3.7”) without Accessories | ||||
| Weight | 0.34kg (0.75lb) without Accessories | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Reset Button | N/A | ||||
| Ingress Protection | Ingression protection: IP67 | ||||
