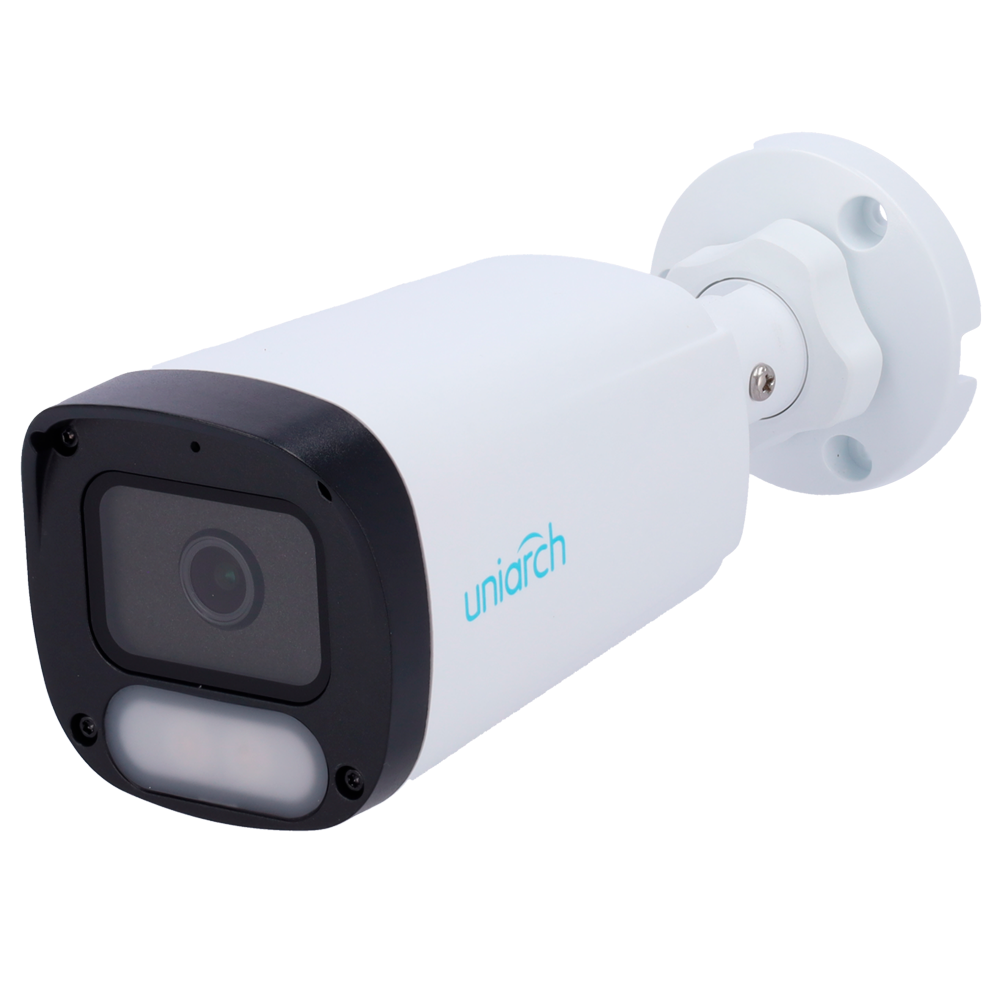

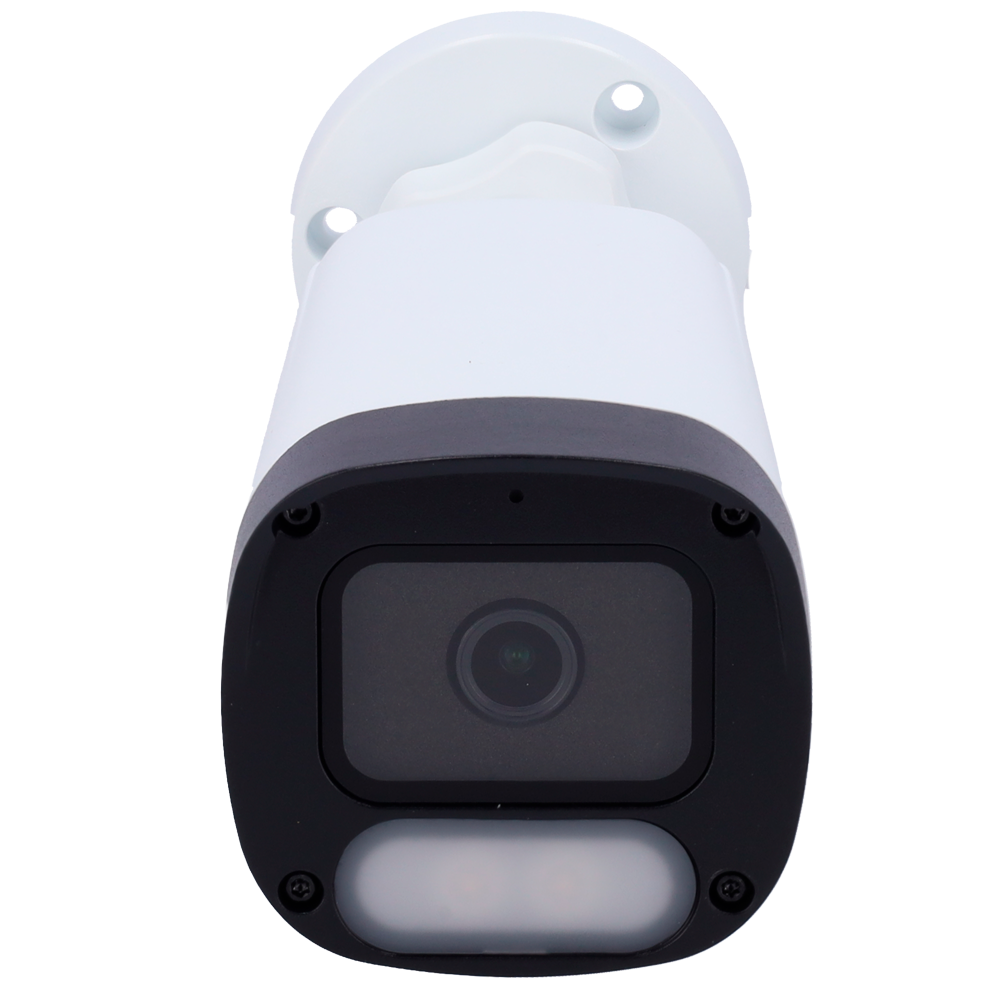

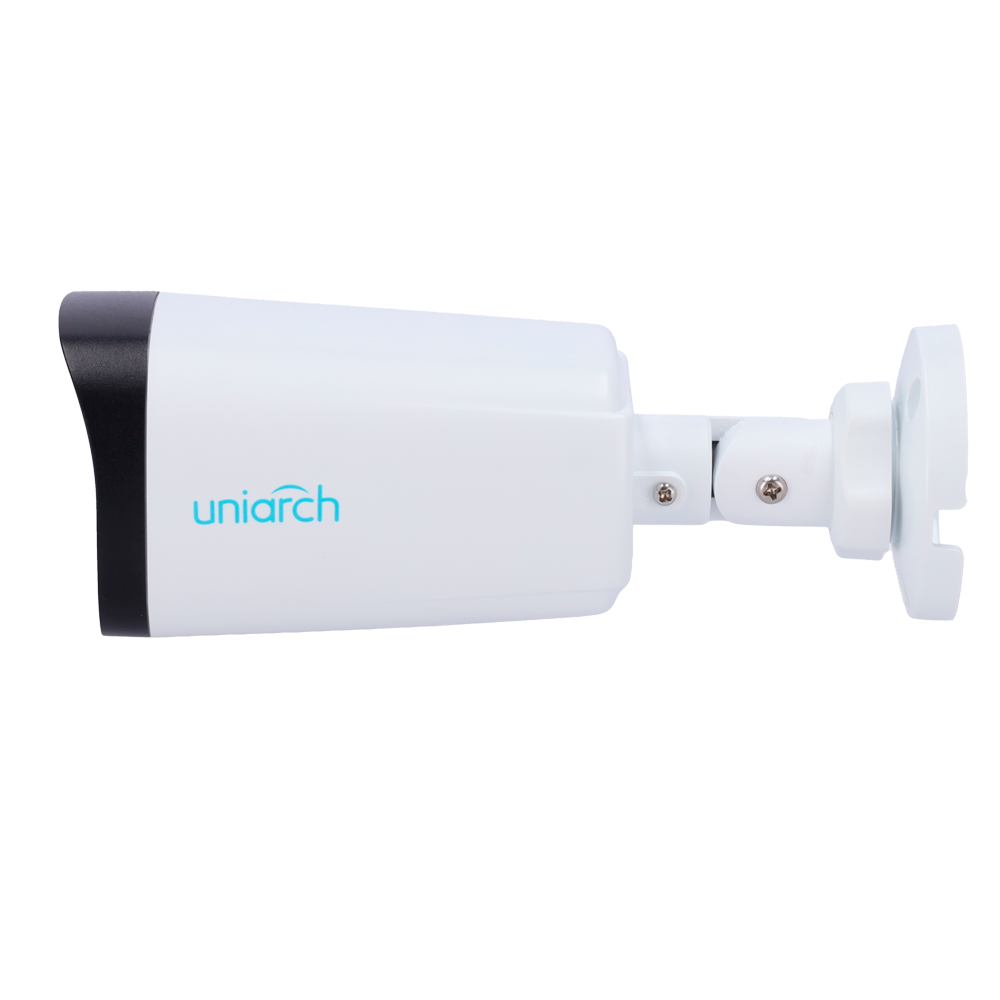

UNV - IPC-B242-ADF28K-WP - 2MP Halo Fixed Camera Uniarch
• 2 MP(1920x1080)
• 2.8 mm Lens
• Minimum illumination 0.0003 lux | 0 lux with Supplementary light
• White light range 30 m
• WDR 120dB
• Integrated microphone
• Slot for microSD up to 512 GB
• Corridor mode 9:16
• PoE
• IP67
• ONVIF Compatible
| Camera | |
|---|---|
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920 x 1080) |
| Lens | 2.8 mm (H: 99º, V: 53º, D: 118º) |
| Main Stream Rate | 1080P (1920*1080)@30fps 720P (1280*720)@30fps |
| Extra Stream Rate | 720P (1280*720)@30fps D1 (720*576)@30fps 640*360@30fps 2CIF(704*288)@30fps CIF(352*288)@30fps |
| Compression | Ultra265/H.265/H.264 |
| Range Performance | Detection: 45 m Remark: 18 m Recognition: 9 m Identification: 4.5 m |
| Minimum Illumination | Colour: 0.0003Lux (F1.0, AGC ON) 0 lux with supplementary light |
| White Light Scope | 30 m |
| Basic Detection | Motion detection, ultra motion detection, anti-tamper alarm, audio detection |
| UMD | Support |
| Image Improvements | AGC, 2D/3D-NR, ROI, privacy mask |
| Day / Night | Mechanical ICR filter |
| Audio | Built-in microphone |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (Profile S, Profile T), API |
| Material | Graphene + Plastic |
| Power | DC 12V / 2.6W PoE (IEEE 802.3 af) |
| Operating Temperature | -30º C ~ 60º C |
| Degree of Protection | Weatherproof IP67 |
| Dimensions | 198 × 74 × 74mm (Without support) |
| Weight | 270 g |
The UNV - IPC-B242-ADF28K-WP is a 2 Megapixel (1920x1080) IP Bullet Camera range, engineered to deliver brilliant color surveillance around the clock, regardless of lighting conditions. This camera features ColorHunter technology powered by Wise-ISP, Uniview's intelligent image processor.
The Wise-ISP technology optimizes every frame, dramatically reducing noise, improving dynamic range, and perfecting color adjustment. This synergy ensures exceptional visual quality even in complex light environments, achieving an ultra-low minimum illumination of just 0.0003 Lux (0 Lux with Supplementary Light on). Equipped with a 2.8 mm fixed lens and a powerful 30-meter white light range, this camera guarantees crystal-clear color images day and night.
