UNV - IPC-B242-ADF40K-WP - 2MP Halo Fixed Camera Uniarch
• 1/2.7"
• 2MP CMOS @ 30 fps
• LED backlight up to 30m., @F1.0
• 4.0 mm lens
• 120 dB WDR, HLC, BLC, 2D / 3D DNR
• Ultra 265, H.265, H.264, MJPEG
• 2 streams built-in microphone
• Motion Detection
• Ultra Motion Detection (UMD)
• IP67
| Model | IPC-B242-ADF40K-WP |
| Camera Type | IP Cylindrical Video Camera |
| Image Sensor | 1/2.7" 2MP CMOS |
| Maximum Frame Rate | 30 fps |
| Lens | 4.0 mm |
| LED Backlight Range | Up to 30 m |
| Aperture | F1.0 |
| Wide Dynamic Range | 120 dB WDR |
| Light Control Features | HLC, BLC |
| Digital Noise Reduction | 2D/3D DNR |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Streams | 2 streams |
| Audio | Built-in microphone |
| Intelligent Detection | Motion detection, Ultra Motion Detection (UMD) |
| Ingress Protection | IP67 |
| Operating Temperature | -40°C to +60°C |
| Packaging | Color packaging with simplified manual |
| Power Supply | DC 12V ± 25% PoE (Power over Ethernet) |
| Warranty | 12-month manufacturer warranty |

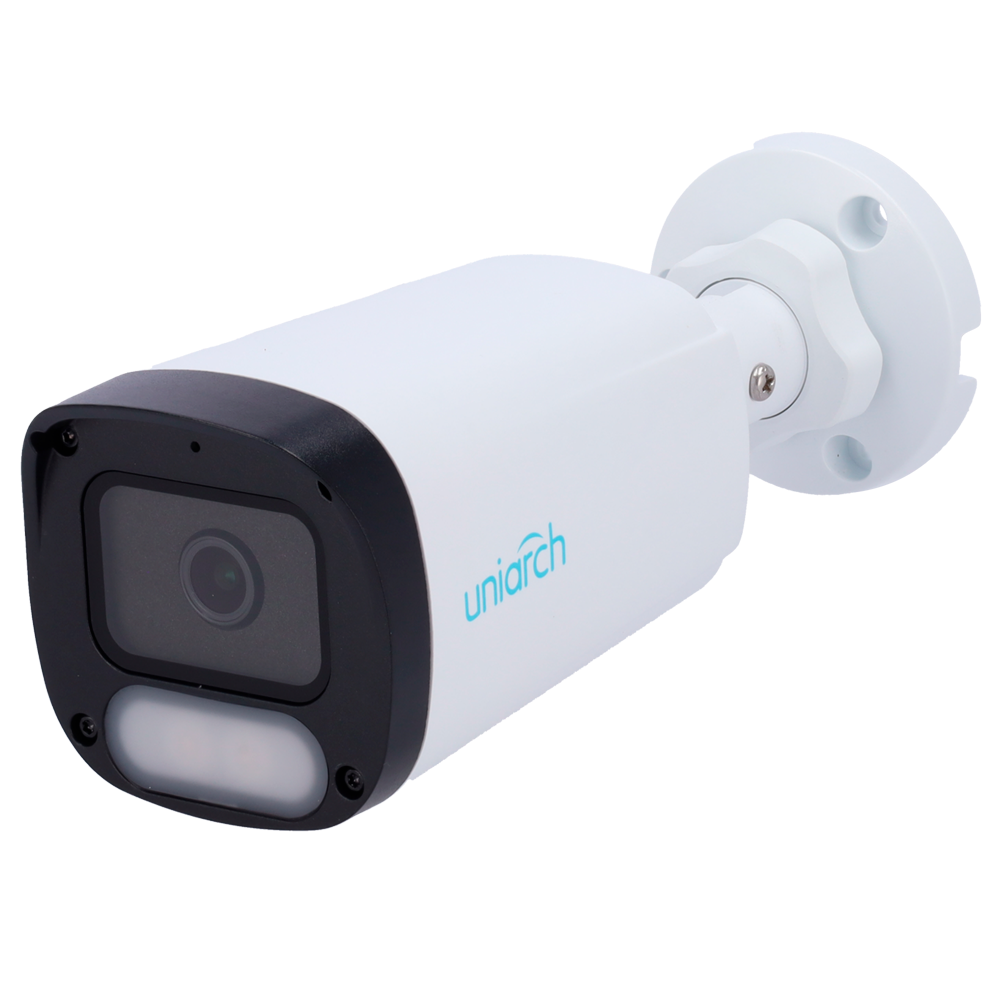

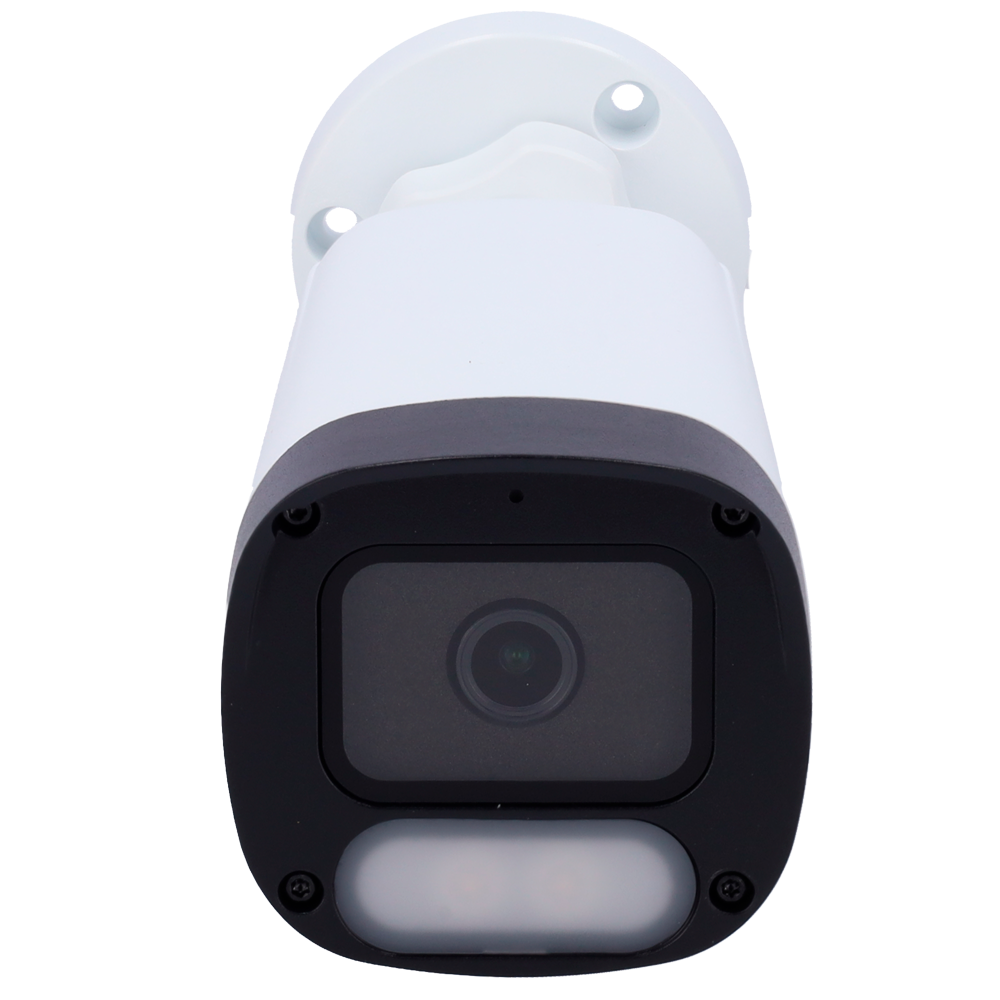

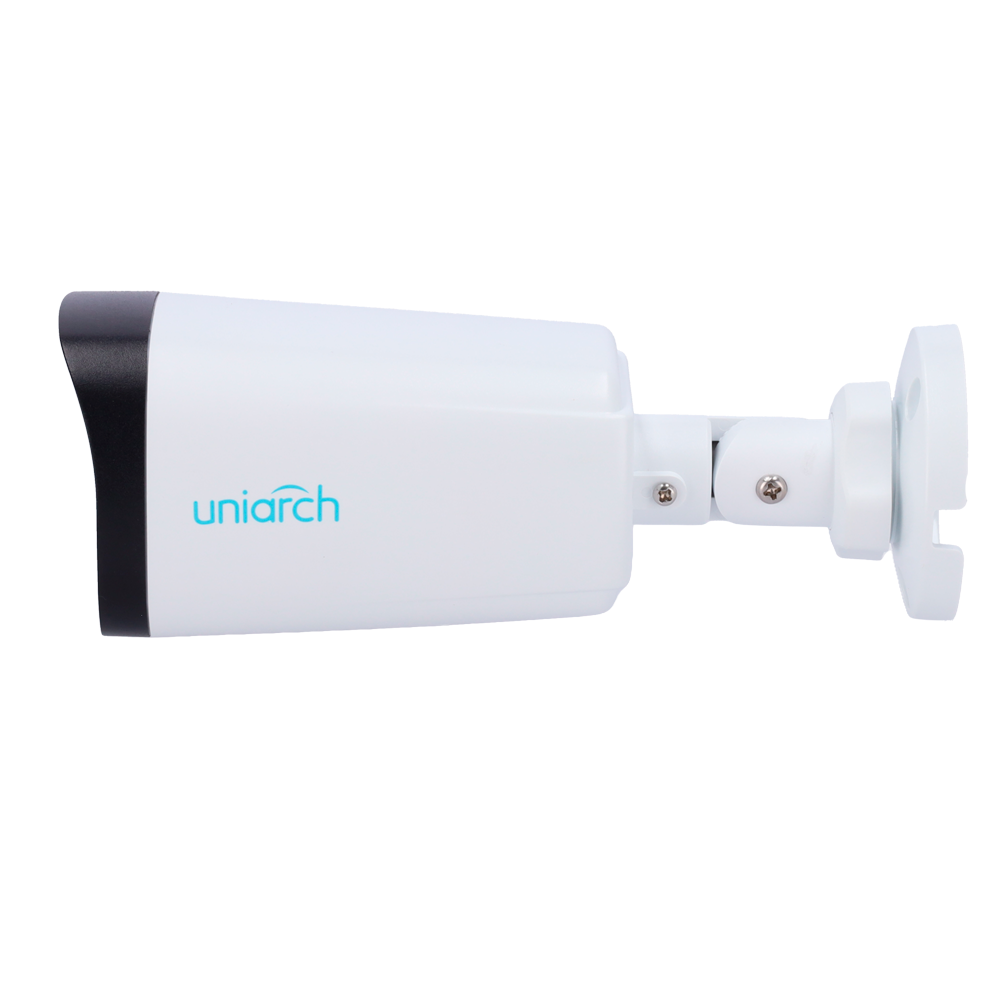

The Cylindrical Video Camera IPC-B242-ADF40K-WP is a robust 2-megapixel surveillance solution designed to deliver exceptional image quality around the clock. It utilizes a 1/2.7" CMOS sensor to capture high-definition 1920 x 1080 video at a fluid 30 frames per second. The optics feature a fixed 4.0 mm lens with an exceptionally large aperture of F1.0, which, combined with the powerful visible LED backlight up to 30 meters, ensures outstanding color images even in near-dark conditions. Video streams are efficiently compressed using Ultra 265, H.265, H.264, and MJPEG across two streams.
Professional imaging is ensured by 120 dB True WDR, which handles high-contrast lighting, alongside HLC, BLC, and 2D/3D DNR for noise reduction. Intelligent features include standard motion detection and advanced Ultra Motion Detection, improving alarm accuracy. The camera includes a built-in microphone for audio monitoring. Built for resilience, the device boasts an IP67 weatherproof rating and operates reliably across an extreme temperature range of -40 °C to +60 °C. Power can be supplied via DC 12V ± 25% or Power over Ethernet.
