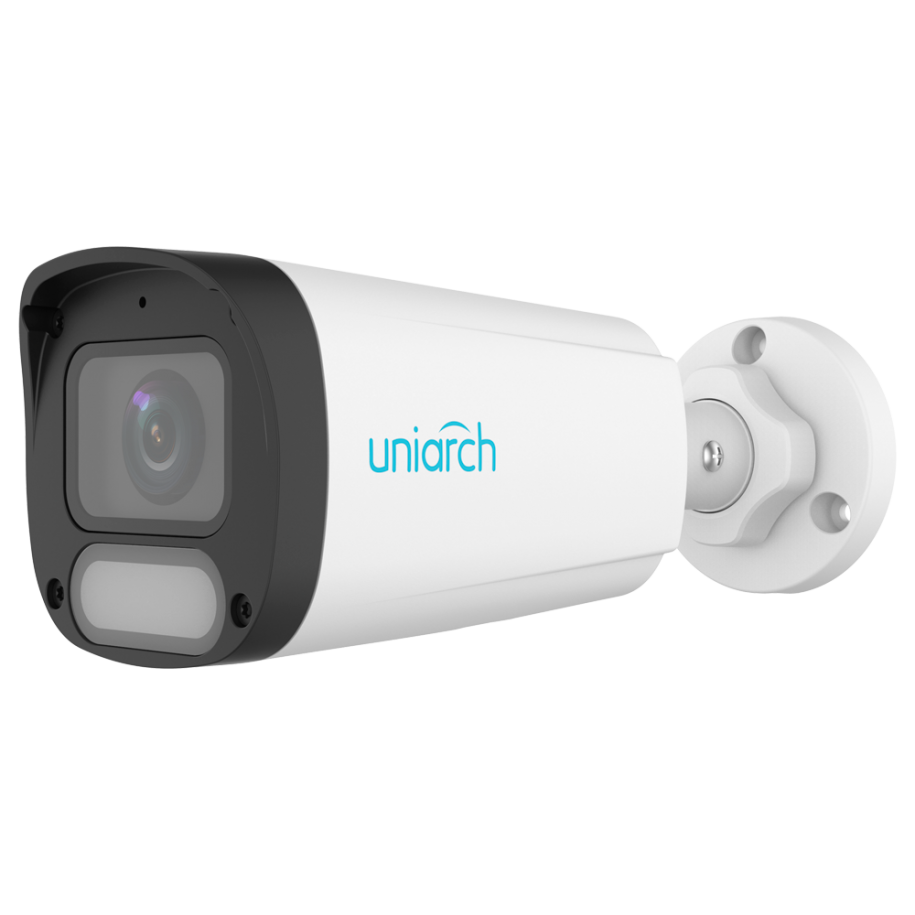

UNV - IPC-B244-ADF40K-WP - 4MP Halo Fixed Camera Uniarch
• IP Bullet Camera - Uniarch
• 4 MP (2560x1440)
• Lens 2.8 mm
• microSD 512 GB
• White light 30 m
• WDR 120 dB
• Minimum illumination 0.0003 lux
• Hunter Color with WISE-ISP technology
• PoE
• UMD (Ultra Motion Detection)
• IP67
• Built-in microphone
• Corridor mode 9:16
• ONVIF Compatible
| Brand / Range | Uniarch |
| Image Sensor | 1/1.8” Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560 x 1440) |
| Lens | 2.8 mm (H: 92.1º, V: 49º, D: 108.3º) |
| Main Stream Rate | 4MP (2560*1440)@25fps 3MP (2304*1296)@30fps 1080P (1920*1080)@30fps |
| Extra Stream Rate | 720P (1280*720)@30fps D1 (720*576)@30fps 640*360@30fps 2CIF (704*288)@30fps CIF (352*288)@30fps |
| Compression | Ultra265/H.265/H.264 |
| Range Performance | Detection: 62.1 m Remark: 24.8 m Recognition: 12.4 m Identification: 6.2 m |
| Minimum Illumination | Colour: 0.0003Lux (F1.0, AGC ON) 0 lux with supplementary light |
| White Light Scope | 30 m |
| Basic Detection | Motion detection, ultra motion detection, anti-tamper alarm, audio detection |
| UMD | Support |
| Image Improvements | AGC, 2D/3D-NR, ROI, privacy mask |
| Day / Night | Mechanical ICR filter |
| Audio | Built-in microphone |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (Profile S, Profile T), API |
| Material | Graphene + Plastic |
| Power | DC 12V / 3.5W PoE (IEEE 802.3af) |
| Operating Temperature | -30º C ~ 60º C |
| Degree of Protection | Weatherproof IP67 |
| Dimensions | 206 × 73 × 73 mm (Without support) |
| Weight | 300 g |
This camera features a 4-megapixel image sensor using a 1/1.8" Progressive Scan CMOS, providing a maximum resolution of 2560 x 1440. It is equipped with a 2.8 mm fixed lens offering a 92.1° horizontal field of view. The main video stream supports 4MP at 25 fps, with compression using Ultra265, H.265, and H.264 codecs. For low-light operation, it has a built-in microphone and a supplementary white light with a range of 30 meters.
The imaging features include Automatic Gain Control, 2D and 3D Digital Noise Reduction, and Region of Interest. It supports basic event detection, including motion, tampering, and audio detection. The housing has an IP67 protection rating for dust and water resistance and is constructed from graphene and plastic. It is designed to operate in a temperature range from negative 30 degrees Celsius to 60 degrees Celsius. Power can be supplied via DC 12 volts or Power over Ethernet using the IEEE 802.3af standard, with a typical power consumption of 3.5 watts.
