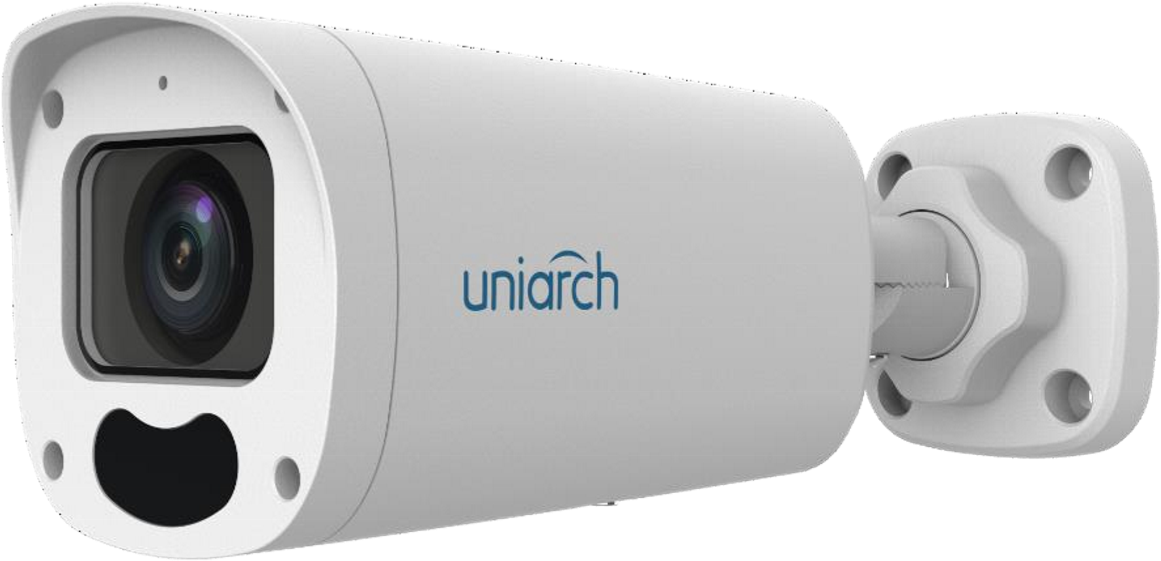

Uniview - IPC-B312-APKZ - Uniarch 2MP VF Bullet 2.8-12mm
Part number:
IPC-B312-APKZ
Price:
Uniarch 2MP VF Bullet 2.8-12mm
Features:
Optics
- Day/night functionality
- Smart IR, up to 50m (164ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
- Built-in Mic
Compression
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
| IPC-B312-APKZ | |||||||
| Camera | |||||||
| Sensor | 1/2.7", progressive scan, CMOS | ||||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 42 | 16.8 | 8.4 | 4.2 | |||
| 12 | 180 | 72 | 36 | 18 | |||
| Angle of View (H) | 108.05°~ 32.59° | ||||||
| Angle of View (V) | 56.81°~ 18.36° | ||||||
| Angle of View (O) | 111.91°~36.53° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Minimum Illumination | Colour: 0.01Lux (F1.8, AGC ON) 0Lux with IR on | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| S/N | >52dB | ||||||
| IR Range | Up to 50m (164ft) IR range | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 128GB | ||||||
| Network Storage | ANR,NAS(NFS) | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| OSD | Up to 4 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Smart | |||||||
| Behavior Detection | intrusion(based on human body detection) | ||||||
| motion detection, tampering alarm, audio detection | |||||||
| Network | |
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, RTMP |
| Compatible Integration | ONVIF (Profile S, Profile T, Profile G), API |
| Interface | |
| Network | 10/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| General | |
| Power | DC 12V±25%, PoE |
| Power consumption: Max 7.5W | |
| Dimensions (L × W × H) | 198 × 74 × 74mm (7.8” × 2.9” × 2.9”) |
| Weight | 0.51kg (1.12lb) |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Ingress Protection | IP67 |
| Reset Button | Supported |
