UNV - IPC-B314-ADZK - 4MP WDR VF IR Bullet Network Camera

Product Overview

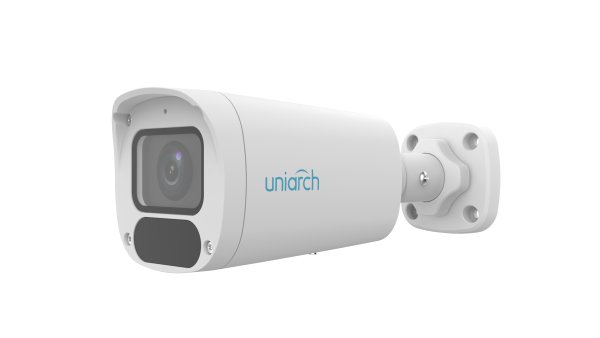

The Uniview IPC-B314-ADZK is a 4MP WDR varifocal infrared bullet network camera with a motorized 2.8–12 mm lens. It combines detailed 2560 × 1440 video, 120 dB true WDR, Smart IR illumination up to 50 m, and human/vehicle detection for reliable surveillance in varied lighting conditions.

The camera supports Ultra 265 compression, edge storage, built-in audio, DC 12 V or PoE power, and IP67 weather protection for outdoor installations.

Key Configuration

Model: IPC-B314-ADZK | Resolution: 4MP, 2560 × 1440 at up to 25 fps | Lens: 2.8–12 mm motorized varifocal, F1.6 | Connectivity: 10/100 Mbps RJ45, ONVIF Profile S/G/T | Protection: IP67

Key Features

• · 4MP 1/2.7-inch CMOS sensor with 2560 × 1440 video at up to 25 fps
• · 2.8–12 mm motorized varifocal lens with 102.8° to 35.8° horizontal field of view
• · Smart IR illumination up to 50 m with automatic or manual control
• · 120 dB true WDR for high-contrast lighting conditions
• · Ultra 265, H.265, H.264, and MJPEG video compression
• · 2D/3D digital noise reduction, HLC, BLC, and digital defog
• · Cross-line and intrusion detection based on human-body detection
• · Ultra Motion Detection for human and vehicle targets
• · MicroSD edge storage up to 512 GB with ANR and NAS support
• · DC 12 V or IEEE 802.3af PoE power, IP67 housing, and 4 kV surge protection

Technical Context

The motorized varifocal lens allows the viewing angle to be adjusted for wide-area monitoring or more focused scene coverage. True WDR balances bright and dark regions, while Smart IR provides controlled infrared illumination for clear night images across distances up to 50 m.

Installation Notes

The metal, plastic, and graphene housing supports 3-axis adjustment and operates from -30°C to 60°C with humidity up to 95% RH, non-condensing. Power can be supplied through DC 12 V or IEEE 802.3af PoE. Optional junction-box, pole-mount, cable-gland, and corner-mount accessories are available.
