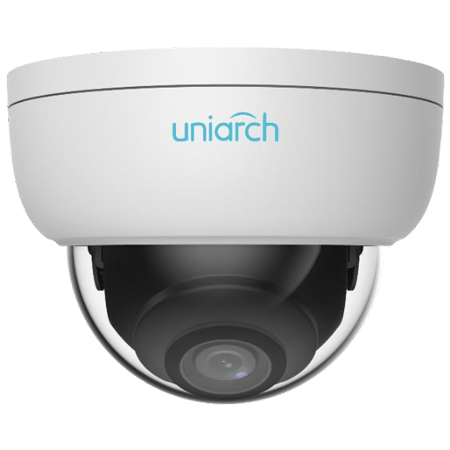

Uniview - IPC-D122-PF40 - Uniarch 2MP Fixed Lens Dome 4.0mm
Part number:
IPC-D122-PF40
Price:
Uniarch 2MP Fixed Lens Dome 4.0mm
Features:
Optics
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265, H.265, H.264
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
- 2-Axis
IPC-D122-PF28 | IPC-D122-PF40 | ||||
| Camera | |||||
| Sensor | 1/2.8", progressive scan, CMOS | ||||
| Lens | 2.8mm@F2.1 | 4.0mm@F2.1 | |||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | |
| 2.8 | 43.4 | 17.4 | 8.7 | ||
| 4.0 | 62.1 | 24.8 | 12.4 | ||
| Angle of View (H) | 106.7° | 87.5 | |||
| Angle of View (V) | 57.1° | 46.3° | |||
| Angle of View (O) | 115.7° | 92.4° | |||
| Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 75° | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.02Lux (F2.1, AGC ON) 0Lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52dB | ||||
| IR Range | Up to 30m (98ft) IR range | ||||
| Defog | Digital Defog | ||||
| WDR | DWDR | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264 | ||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 25fps; 720P (1280*720), Max 25fps; Sub Stream: D1 (720*576), Max 25fps; 640*360,Max 25fps; 2CIF(704*288), Max 25fps; CIF(352*288), Max 25fps; | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, RTMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | ||||
| Interface | |||||
| Network | 10/100M Base-TX Ethernet | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 3.5W | |||||
| Dimensions (Ø x H) | Ø109x 81mm (Ø4.3” x 3.2”) | ||||
| Weight | 0.33kg (0.73lb) | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Ingress Protection | IP67 | ||||
| Vandal Resistant | IK10 | ||||
| Reset Button | N/A | ||||
