Uniview - IPC-D124-PF28 - 4MP Fixed Lens Dome Camera 2.8mm

Part number:

IPC-D124-PF28

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

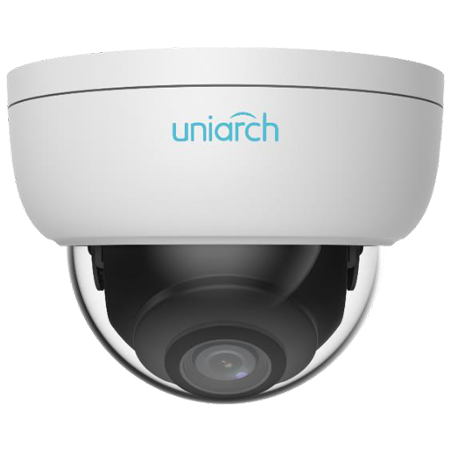

Uniarch 4MP Fixed Lens Dome Camera 2.8mm

Features:

High quality image with 4MP,1/3" CMOS sensor
4MP (2560*1440)@20fps;3MP (2304*1296) @20fps; 1080P (1920*1080)@30fps/25fps
Ultra 265, H.265, H.264
2D/3D DNR (Digital Noise Reduction)
ROI (Region of Interest)
ONVIF Conformance
Smart IR, up to 30m (98ft) IR distance
2-Axis
Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
DC12V or PoE(IEEE 802.3af) power supply
IP67
IK10

IPC-D124-PF28				IPC-D124-PF40
Camera
Sensor	1/3", 4.0 megapixel, progressive scan, CMOS
Minimum Illumination	Colour: 0.02Lux (F2.1, AGC ON) 0Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment angle	Pan: 3° ~ 360°			Tilt: 0° ~ 75°
WDR	DWDR
S/N	>52dB
Lens
Lens Type	2.8mm@F2.1				4.0mm@F2.1
Iris	Fixed
Angle of View (H)	97.0°				79.0°
Angle of View (V)	52.2°				42.3°
Angle of View (O)	107.5				85.1°
DORI
DORI Distance	Lens (mm)	Detect (m)	Observe (m)			Recognize (m)
	2.8	63.0	25.2			12.6
	4.0	90.0	36.0			18.0
Illuminator
IR Range	Up to 30m (98ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4MP (25601440), Max 20fps; 3MP (23041296), Max 20fps; 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps; Sub Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps;
Video Bit Rate	128 Kbps~6 Mbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Video stream	Dual streams
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital Defog
Events
Basic Detection	Motion detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Network
Protocols	IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SSL, QoS , RTMP
Compatible Integration	ONVIF (Profile S, Profile T), API
User/Host	Up to 32 users. 2 user levels: administrator and common user
Client	Uniarch Client Uniarch APP
Web Browser	Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
	Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O	N/A
Alarm I/O	N/A
Built-in Mic	N/A
Built-in Speaker	N/A
WIFI	N/A
Network	1 * RJ45 10M/100M Base-TX Ethernet
Video Output	N/A
Certifications
EMC	CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1) CB (IEC 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529) IK10 (IEC 62262)
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 3.5W
Dimensions (Ø x H)	Ø109 x 81mm (Ø4.3” x 3.2”)
Weight	0.33kg (0.73lb)
Working Environment	-30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)
Storage Environment	-30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)
Surge Protection	4KV
Reset Button	N/A
