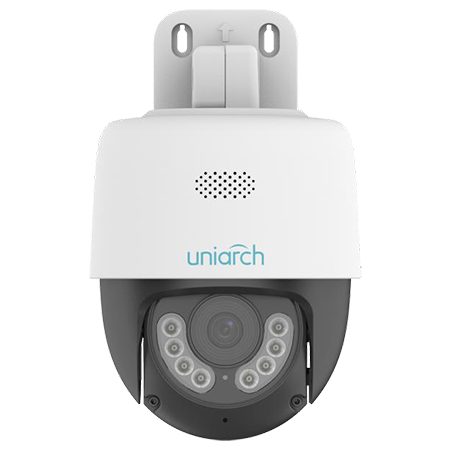

Uniview - IPC-P213-AF40KC - 3MP HD Dual Light Network PT Camera
Part number:
IPC-P213-AF40KC
Price:
Uniarch 3MP Active Deterrence PT Dome
Features:
- 2304*1296@20fps in the main stream
- Ultra 265, H.265, H.264
- Support digital WDR (Wide Dynamic Range)
- Built-in Mic & Speaker, support two-way audio, offer better interaction
- Smart IR, Up to 30 m (98 ft) IR and 30m (98 ft) warm light distance, suitable for more scenes
- Self-contained bracket, support two kinds of mounting
- Supports 256 G Micro SD card
- IP66 ingress protection
- DC12V or PoE (IEEE 802.3af) power supply
- The front face is made of grapheme, which has better heat dissipation and more environmental protection
| IPC-P213-AF40KC | ||||
| Camera | ||||
| Sensor | 1/2.8" progressive scan, 3.0 megapixel, CMOS | |||
| Min. Illumination | Colour:0.005 lux (F1.6,AGC ON) 0 lux with IR | |||
| Day/Night | IR-cut filter with auto switch (ICR) | |||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | |||
| WDR | Digital | |||
| S/N | >52dB | |||
| Lens | ||||
| Lens type | 4mm | |||
| Iris | Fixed; F1.6 | |||
| Field of View (H) | 90.5° | |||
| Field of View (V) | 44.4° | |||
| Field of View (D) | 111.3° | |||
| DORI | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) |
| 4mm | 73.5 (241.0ft) | 29.4 (96.4ft) | 14.7 (48.2ft) | |
| Illuminator | ||||
| IR Range | Up to 30m (98ft) | |||
| Warm Light Range | Up to 30m (98ft) | |||
| Wavelength | 850nm | |||
| IR On/Off Control | Auto/Manual | |||
| Video | ||||
| Video Compression | Ultra 265, H.265, H.264 | |||
| Frame Rate | Main Stream: 3MP (2304*1296), Max 20fps; Sub Stream: 640*360, Max 20fps; | |||
| Video Bit Rate | 128 Kbps~6 Mbps | |||
| ROI | Support | |||
| Video Stream | Dual streams | |||
| OSD | Up to 2 OSDs | |||
| Privacy Mask | Up to 4 areas | |||
| Image | ||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||
| Digital Noise Reduction | 2D/3D DNR | |||
| Smart IR | Support | |||
| Flip | Normal/Flip Vertical/Flip Horizontal/180° | |||
| HLC | Support | |||
| BLC | Support | |||
| Defog | Digital Defog | |||
| Events | ||||
| Basic Detection | Motion detection, Audio detection | |||
| General Function | Access Policy, RTSP Authentication, User Authentication | |||
| Audio | ||||
| Audio Compression | G.711U,G.711A | |||
| Two-way Audio | Support | |||
| Suppression | Support | |||
| Sampling Rate | 8 kHz | |||
| Storage | ||||
| Edge Storage | Micro SD, up to 256 GB | |||
| Network Storage | ANR | |||
| Network | ||||
| Protocols | IPv4, TCP, UDP, DHCP , RTSP, DNS, DDNS, NTP, HTTP, HTTPS, 802.1x , SSL | |||
| Compatible Integration | ONVIF (Profile S, Profile G), API | |||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||
| Pan & Tilt | ||||
| Pan Range | 0° ~ 345° | |||
| Pan Speed | 1°/s ~ 40°/s | |||
| Preset speed: 40°/s | ||||
| Tilt Range | 0° ~ 90° | |||
| Tilt Speed | 0.1°/s ~ 30°/s | |||
| Preset speed: 30°/s | ||||
| Number of Presets | 256 | |||
| Home Position | Support | |||
| Interface | ||||
| Built-in Mic | Support | |||
| Built-in Speaker | Support | |||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||
| General | ||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||
| Power Interface | Ø 5.5mm coaxial power plug | |||
| Dimensions (Ø x H) | Φ118mm*118mm*199mm (Φ4.6”x 4.6”x 7.8”) | |||
| Weight | 0.53kg(1.17lb) | |||
| Working Environment | -30°C ~ 60°C (-22°F to 140°F), Humidity:≤95% RH(non-condensing) | |||
| Surge Protection | 4KV | |||
| Reset Button | Support | |||
| Protection | Ingression protection: IP66 Vandal resistant: N/A | |||
