UNV - IPC-P224-AF40C - 4MP ColorHunter Outdoor Network PT Camera
Product Overview

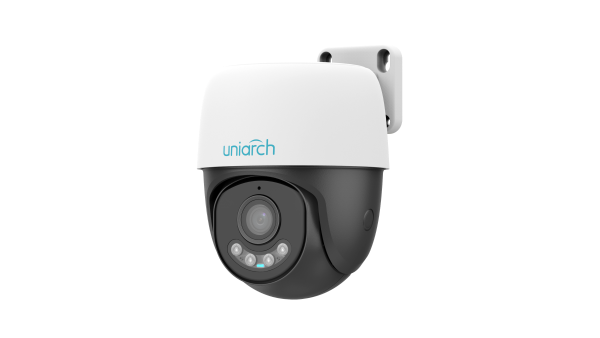

The Uniview IPC-P224-AF40C is a 4MP ColorHunter outdoor network PT camera with a 4.0 mm fixed lens. It combines dual-light illumination, pan-and-tilt control, auto tracking, human/vehicle detection, and two-way audio for active day-and-night monitoring.
The camera provides 2560 × 1440 video, Smart IR and warm-light illumination up to 30 m, microSD storage up to 512 GB, and IP66 protection for outdoor installations.
Key Configuration
Model: IPC-P224-AF40C | Resolution: 4MP, 2560 × 1440 at up to 25 fps | Lens: 4.0 mm fixed, F1.6 | PT control: 0°–345° pan and 0°–90° tilt | Connectivity: 10/100 Mbps RJ45 with IEEE 802.3af PoE | Protection: IP66
Key Features
- · 4MP 1/3.0-inch CMOS sensor with 2560 × 1440 video at up to 25 fps
- · 4.0 mm fixed lens with 74.5° horizontal field of view
- · Dual-light illumination with IR and warm light up to 30 m each
- · Pan range of 0°–345° and tilt range of 0°–90° with 20 presets
- · Auto tracking and Ultra Motion Detection based on human and vehicle detection
- · Ultra 265, H.265, and H.264 video compression with dual streams
- · Two-way audio with built-in microphone and speaker
- · High-decibel detection and configurable sound-and-light warning
- · MicroSD edge storage up to 512 GB with ANR support
- · DC 12 V or IEEE 802.3af PoE power, 4 kV surge protection, and IP66 housing
Technical Context
The pan-and-tilt mechanism allows the camera to cover a broad area and reposition toward detected activity. Dual-light illumination combines infrared monitoring with warm light for color-assisted night scenes, while auto tracking follows detected human or vehicle targets.
Installation Notes
The camera operates from -30°C to 60°C with humidity up to 95% RH, non-condensing. Power can be supplied through DC 12 V or IEEE 802.3af PoE. The IP66 housing is intended for outdoor use and includes adjustable pan and tilt positioning.
| Product Information | |
| Product Model | IPC-P224-AF40C |
| Product Type | 4MP ColorHunter outdoor network PT camera |
| Image Sensor | 1/3.0" CMOS |
| Lens | 4.0 mm fixed lens, F1.6 |
| Housing Material | Plastic |
| Video and Lens | |
| Maximum Resolution | 4MP (2560 × 1440) |
| Frame Rate | 4MP at 25/20 fps 3MP at 30/25 fps 2MP at 30/25 fps |
| Field of View | Horizontal: 74.5° Vertical: 39.7° Diagonal: 87.9° |
| Minimum Illumination | 0.003 lux in color mode at F1.6, AGC on |
| Day/Night | IR-cut filter with automatic switching |
| Shutter | Auto / Manual, 1–1/100,000 s |
| Signal-to-Noise Ratio | >52 dB |
| WDR | DWDR |
| DORI Distance | |
| Detect | 90.0 m (295.3 ft) |
| Observe | 36.0 m (118.1 ft) |
| Recognize | 18.0 m (59.1 ft) |
| Identify | 9.0 m (29.5 ft) |
| Dual Light Illumination | |
| Supplemental Light | Dual light |
| IR Illumination Distance | Up to 30 m (98.4 ft) |
| Warm Light Distance | Up to 30 m (98.4 ft) |
| Wavelength | 850 nm |
| IR Control | Auto / Manual |
| Video | |
| Main Stream | 4MP (2560 × 1440) at up to 25 fps 3MP (2304 × 1296) at up to 30 fps 1080p (1920 × 1080) at up to 30 fps 720p (1280 × 720) at up to 30 fps |
| Sub Stream | 640 × 360, 2CIF (704 × 288), or CIF (352 × 288) at up to 25 fps |
| Video Compression | Ultra 265, H.265, H.264 |
| Video Bit Rate | 128 Kbps–6144 Kbps |
| Video Streams | Dual streams |
| OSD | Up to 4 OSD areas |
| Privacy Masking | Supported through NVR |
| ROI | Supported |
| Image and Intelligent Functions | |
| Image Functions | Auto/outdoor/fine-tune/sodium lamp/locked/Auto2 white balance, 2D/3D DNR, Smart IR, BLC, and digital defog |
| Flip Modes | Normal, horizontal, vertical, and 180° |
| Basic Detection | Ultra Motion Detection based on human and vehicle detection, tampering alarm, and high-decibel detection |
| Smart Intrusion Prevention | Not available |
| Auto Tracking | Supported |
| Sound and Light Warning | Supported |
| General Functions | IP address filtering, access policy, HTTP authentication, RTSP authentication, user authentication, and ARP protection |
| Audio | |
| Microphone | Built-in microphone |
| Speaker | Built-in speaker |
| Audio Compression | G.711U, G.711A |
| Audio Bit Rate | 64 Kbps |
| Two-Way Audio | Supported |
| Audio Suppression | Supported |
| Sampling Rate | 8 kHz |
| Storage and Network | |
| Edge Storage | MicroSD card up to 512 GB |
| Network Storage | ANR |
| Network Interface | 1 × RJ-45 10/100 Mbps Base-TX Ethernet |
| Network Protocols | IPv4, TCP, DHCP, RTSP, RTP, RTCP, NTP, HTTP, ICMP, DNS, DDNS |
| Interoperability | SDK and API |
| Client Software | Mobile application and Uniarch client |
| Web Browser | Internet Explorer 10+, Chrome 45+, Firefox 52+, Edge 79+ with plug-in |
| User Management | Up to 6 users with Administrator and Common User levels |
| Security | Password protection, strong password, operation log export, RTSP basic/digest authentication, HTTP digest authentication, TLS 1.2, and WSSE/digest authentication for ONVIF |
| PTZ | |
| Pan Range | 0°–345° |
| Pan Speed | 1°/s–40°/s Preset speed: 40°/s |
| Tilt Range | 0°–90° |
| Tilt Speed | 1°/s–30°/s Preset speed: 30°/s |
| Presets | 20 |
| Electrical and Environmental | |
| Power Supply | 12 VDC ±25% or PoE IEEE 802.3af |
| Power Consumption | 7.3 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Ingress Protection | IP66 |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Dimensions | Ø110 × 141 × 151 mm Ø4.3 × 5.6 × 6.0 in |
| Weight | 0.38 kg (0.84 lb) |
| Surge Protection | 4 kV |
| LED Indicator | 1 × red/blue indicator |
| Reset Button | Supported |
| Certifications | |
| Certifications | CE-EMC, FCC, CE-LVD, CE-RoHS, WEEE |
