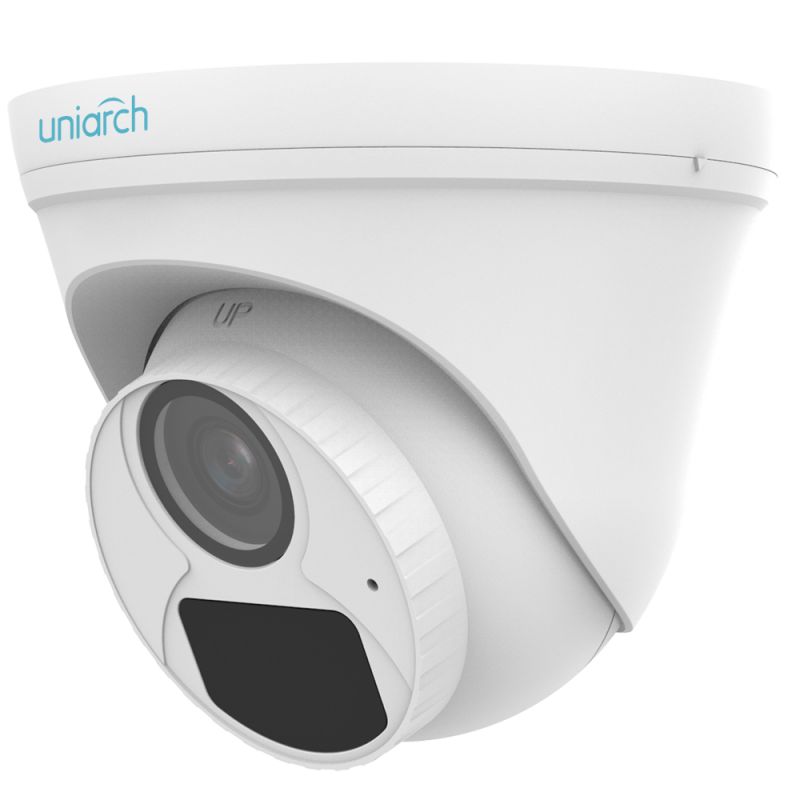

UNV - IPC-T122-APF28 - 2MP Fixed Lens Turret 2.8mm Uniarch
• High-quality images with a 1080p, 1/2.8" CMOS sensor.
• 1080p (1920 x 1080) @ 25 fps; 720p (1280 x 720) @ 25 fps
• Ultra 265, H.265 and H.264
• 2D/3D DNR
• ROI ensures optimal image quality in areas of interest while using minimal bandwidth.
• Smart IR with an IR distance of up to 30 m (98.4 ft).
• Built-in microphone
• Wide temperature range: -30°C to 60°C (-22°F to 140°F)
• Power supply: DC 12 V, PoE (IEEE 802.3af)
| Camera | |
|---|---|
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Color: 0.02 Lux (F2.1, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° |
| S/N Ratio | >52 dB |
| WDR | DWDR |
| Lens | |
| Focal Length | 4.0 mm |
| Iris | F2.1 |
| Field of View (H) | 87.5° |
| Field of View (V) | 46.3° |
| Field of View (D) | 92.4° |
| DORI | |
| DORI Distance (Lens) | 4 mm |
| DORI Distance (Detect) | 62.1 m (203.7 ft.) |
| DORI Distance (Observe) | 24.8 m (81.4 ft.) |
| DORI Distance (Recognize) | 12.4 m (40.7 ft.) |
| DORI Distance (Identify) | 6.2 m (20.3 ft.) |
| Illuminator | |
| Supplemental Light | IR |
| Illumination Distance (IR) | Up to 30m (98ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264 |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 1080P (1920 × 1080), max. 25 fps; 720P (1280 × 720), max. 25 fps; Sub Stream: D1 (720 × 576), max. 25 fps; 640 × 360, max. 25 fps; 2CIF (704 × 288), max. 25 fps; CIF (352 × 288), max. 25 fps; |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| U-code Support | Yes |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Events | |
| Basic Detection | Motion detection, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Network | |
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile T), API |
| User/Host | Up to 32 users, 2 user levels: administrator and common user |
| Client | Uniarch client, Uniarch app |
| Web Browser | Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| General | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) Power consumption: Max. 3.5W Power Interface: Ø5.5 mm coaxial power plug |
| Dimensions | Ø118 mm × 97 mm (Ø4.6" × 3.8") (Ø × H) |
| Weight | 0.25 kg (0.55 lb.) |
| Material | Graphene + Plastic |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | N/A |
This camera is built around a 1/2.8-inch CMOS image sensor. It supports a main video stream of 1080P resolution at a maximum of 25 frames per second and uses Ultra 265, H.265, and H.264 video compression. The model features a fixed 4.0-millimeter lens with an F2.1 aperture, providing an 87.5-degree horizontal field of view. For night-time operation, it is equipped with an infrared illuminator effective up to a distance of 30 meters.
The imaging includes Digital Wide Dynamic Range, 2D and 3D Digital Noise Reduction, Smart IR, and Backlight Compensation. The housing is constructed from graphene and plastic with an IP67-rated protection against dust and water ingress. It is designed to operate within a temperature range from negative 30 degrees Celsius to 60 degrees Celsius. Power can be supplied via DC 12 volts or Power over Ethernet using the IEEE 802.3af standard, with a maximum power consumption of 3.5 watts.
