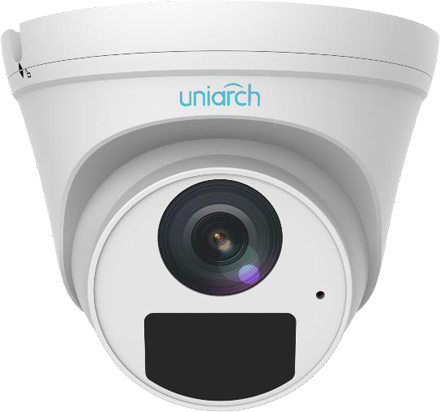

UNV - IPC-T124-APF28KLM-A2 - 4MP Fixed Lens Turret 2.8mm Uniarch (SD Slot)
• 1/3"
• 4 MP (2560x1440)
• 20 fps
• IR illumination
• CMOS
• Outdoor
• Dome
• LAN
• PoE 802.3af
• Region of Interest setting
• Light Sensor
• Motion Detection
| Camera | |
|---|---|
| Release Year | 2023 |
| Audio | Built-in microphone |
| Intelligent Detection | Motion detection |
| Lens Options | 2.8 mm |
| Color | Color (Day/Night) |
| Usage | Outdoor |
| Housing Type | Dome |
| LAN Connection | Yes |
| Power over Ethernet | PoE 802.3af |
| Region of Interest (ROI) | Up to 8 areas |
| Light Sensor | Yes |
| Motion Detection | Yes |
| Microphone | Built-in |
| IR Illumination | Yes |
| Illumination Range | 30 m |
| Matrix | |
| Matrix Type | CMOS |
| Matrix Size | 1/3" |
| Number of Megapixels | 4 MP |
| Video Resolution | 2560 x 1440 pixels |
| Frame Rate (Max) | 20 fps |
| Recording (1080P) | 1920 x 1080 pixels |
| Minimum Illumination | 0.02 lux |
| Aperture | F/2.1 |
| Signal/Noise Ratio | 56 dB |
| Light Compensation | DWDR + BLC |
| Lens | |
| Focal Type | Constant (Fixed) |
| Focal Length | 4 mm |
| Horizontal Viewing Angle | 79° |
| Vertical Viewing Angle | 42.3° |
| General | |
| Video Compression Format | Ultra 265, H.265, H.264, MJPEG |
| Power Supply | 12 V |
| Power Consumption | 3.5 W |
| Operating Temperature | -30 °C ~ +60 °C |
| Maximum Humidity | 95 % |
| Protection Level | IP67 |
| ONVIF Support | Yes |

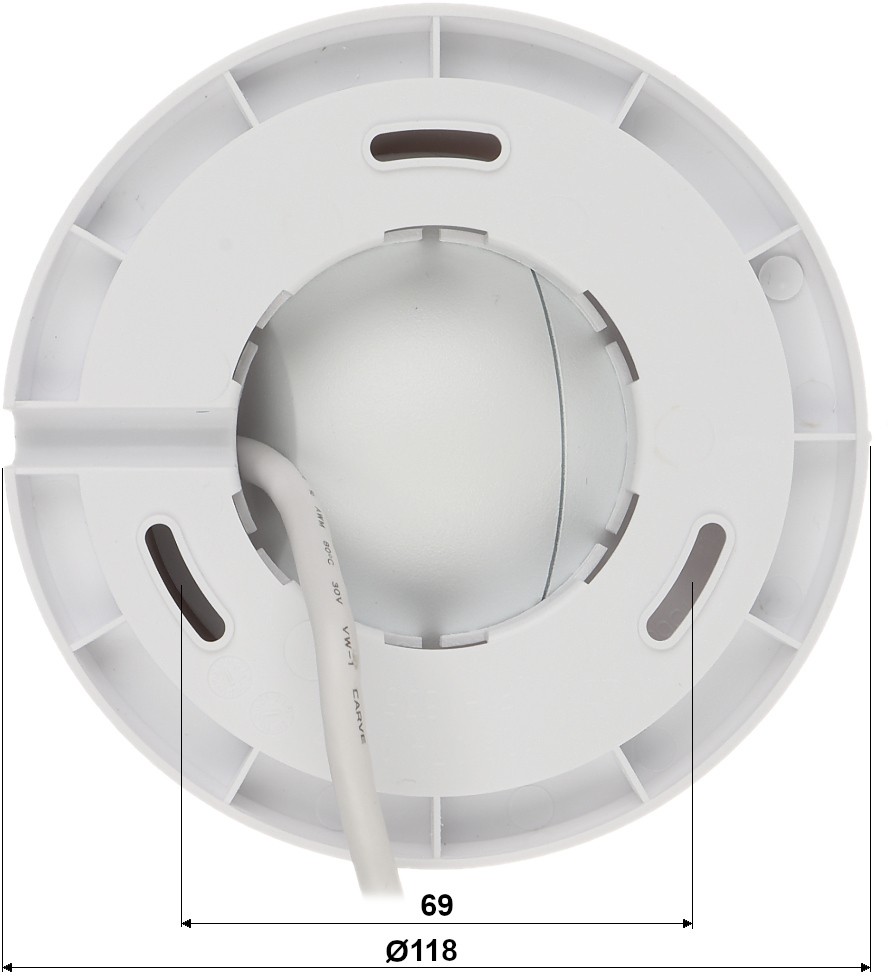

| Dimensions | 118 x 118 x 97 mm |
| Weight | 270 g |
This camera features a 4-megapixel image sensor using a 1/3-inch CMOS, providing a maximum resolution of 2560 by 1440 pixels at 20 frames per second. It is equipped with a fixed 4mm lens offering a 79 ° horizontal field of view and an F2.1 aperture. For low-light operation, it has a built-in microphone and an infrared illuminator with a range of up to 30 meters. Video compression uses Ultra 265, H.265, H.264, and MJPEG formats.
The imaging includes Digital Wide Dynamic Range, Backlight Compensation, and Region of Interest with support for up to 8 areas. It supports motion detection and audio detection. The housing has an IP67 protection rating for dust and water resistance, designed for outdoor use. It operates in a temperature range from -30 °C to ~ +60 °С. Power can be supplied via DC 12 volts or Power over Ethernet using the IEEE 802.3af standard, with a typical power consumption of 3.5 watts.
