UNV - IPC-T132-AF28-ECO - 2MP Fixed IR Turret Network Camera
Product Overview

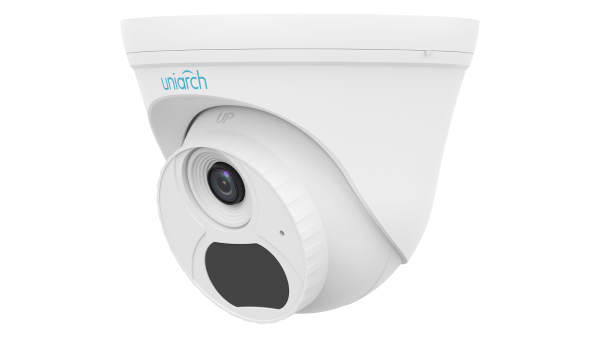

The Uniarch IPC-T132-AF28-ECO is a 2MP fixed turret network camera with a 2.8 mm wide-angle lens for indoor and general-purpose surveillance. It provides 1080p video, Smart IR illumination up to 30 m, Human Body Detection 2.0, and an integrated microphone.
The camera supports Ultra 265 compression, ROI encoding, 3-axis adjustment, and IEEE 802.3af PoE power for straightforward network installation.
Key Configuration
Model: IPC-T132-AF28-ECO | Resolution: 2MP, 1920 × 1080 at up to 30 fps | Lens: 2.8 mm fixed, F2.0 | Connectivity: 10/100 Mbps RJ45 with IEEE 802.3af PoE | Housing: Plastic turret
Key Features
- · 2MP 1/3.0-inch CMOS sensor with 1080p video at up to 30 fps
- · 2.8 mm fixed wide-angle lens with 87.8° horizontal field of view
- · Smart IR illumination up to 30 m with automatic or manual control
- · Ultra 265, H.265, and H.264 video compression
- · 2D/3D digital noise reduction, DWDR, HLC, BLC, and digital defog
- · ROI encoding with up to eight regions and dual-stream video transmission
- · Motion detection, audio detection, and Human Body Detection 2.0
- · Built-in microphone with G.711U/G.711A audio compression
- · IEEE 802.3af PoE power with maximum consumption of 2.5 W
- · 3-axis adjustment with pan from 0° to 360°, tilt from 0° to 80°, and rotation from 0° to 360°
Technical Context
The 2.8 mm lens provides broad coverage for rooms, entrances, and other general monitoring areas. Smart IR supports clear night imaging up to 30 m, while Ultra 265 compression and ROI encoding help reduce network bandwidth and storage requirements.
Installation Notes
The compact plastic turret housing supports 3-axis adjustment and operates from -30°C to 60°C with humidity up to 95% RH, non-condensing. Power is supplied through an IEEE 802.3af PoE network connection. Optional junction-box, wall-mount, pendant, pole, and corner-mount accessories are available.
| Product Information | |
| Product Model | IPC-T132-AF28-ECO |
| Product Type | 2MP fixed IR turret network camera |
| Image Sensor | 1/3.0" CMOS |
| Lens | 2.8 mm fixed lens, F2.0 |
| Mounting Adjustment | 3-axis adjustment |
| Housing Material | Plastic |
| Video and Lens | |
| Maximum Resolution | 2MP (1920 × 1080) |
| Frame Rate | 1080p at up to 30 fps 720p at up to 30 fps |
| Minimum Illumination | 0.01 lux at F2.0, AGC on 0 lux with IR illumination |
| Day/Night | IR-cut filter with automatic switching |
| Shutter | Auto / Manual, 1–1/100,000 s |
| Signal-to-Noise Ratio | >52 dB |
| WDR | DWDR |
| Horizontal Field of View | 87.8° |
| Vertical Field of View | 48.9° |
| Diagonal Field of View | 99.0° |
| DORI Distance | |
| Detect | 51.4 m (168.7 ft) |
| Observe | 20.6 m (67.5 ft) |
| Recognize | 10.3 m (33.8 ft) |
| Identify | 5.1 m (16.9 ft) |
| Infrared Illumination | |
| Supplemental Light | IR |
| IR Illumination Distance | Up to 30 m (98.4 ft) |
| Wavelength | 850 nm |
| IR Control | Auto / Manual |
| Video | |
| Main Stream | 1080p (1920 × 1080) at up to 30 fps 720p (1280 × 720) at up to 30 fps |
| Sub Stream | 640 × 360, 2CIF (704 × 288), or CIF (352 × 288) at up to 30 fps |
| Video Compression | Ultra 265, H.265, H.264 |
| H.264 Profiles | Baseline, Main, High |
| Video Bit Rate | 128 Kbps–6144 Kbps |
| Video Streams | Dual streams |
| U-Code | Supported |
| OSD | Up to 4 OSD areas |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image and Detection Features | |
| Image Functions | Auto/outdoor/fine-tune/sodium lamp/locked/Auto2 white balance, 2D/3D DNR, Smart IR, HLC, BLC, and digital defog |
| Flip Modes | Normal, vertical, horizontal, and 180° |
| Basic Detection | Motion detection, audio detection, and Human Body Detection 2.0 |
| General Functions | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, and HTTP authentication |
| Audio | |
| Microphone | Built-in microphone |
| Audio Compression | G.711U, G.711A |
| Audio Bit Rate | 64 Kbps |
| Two-Way Audio | Not available |
| Audio Suppression | Supported |
| Sampling Rate | 8 kHz |
| Network and Interfaces | |
| Network Interface | 1 × RJ-45 10/100 Mbps Base-TX Ethernet |
| Network Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, and RTMP |
| Interoperability | API and SDK |
| Client Software | Mobile application and Uniarch client |
| Web Browser | Plug-in-free live view with Chrome 57+, Firefox 58+, and Edge 16+ |
| User Management | Up to 32 users with Administrator and Common User levels |
| Audio I/O | Not available |
| Alarm I/O | Not available |
| Built-in Speaker | Not available |
| Wi-Fi | Not available |
| Video Output | Not available |
| Electrical and Environmental | |
| Power Supply | PoE IEEE 802.3af |
| Power Consumption | Maximum 2.5 W |
| Ingress Protection | Not specified in the datasheet |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Storage Temperature | -30°C to 60°C (-22°F to 140°F) |
| Storage Humidity | ≤95% RH, non-condensing |
| Dimensions | Ø118 × 100 mm Ø4.6 × 3.9 in |
| Weight | 0.19 kg (0.42 lb) |
| Surge Protection | 4 kV |
| Reset Button | Not available |
| Certifications | |
| Certifications | CE-EMC, FCC, CE-LVD, CE-RoHS, WEEE |
| Optional Accessories | |
| TR-JB03-I-IN | Junction box for turret camera with rear cable routing |
| TR-A01-IN | NPT 3/4" waterproof cable gland |
| TR-WM07P-B | Plastic dome wall mounting bracket |
| TR-SM05-IN | Switch box adapter for fixed dome camera |
| TR-CM24-IN | Dome pendant mounting bracket for indoor use |
| TR-SE24-IN | Dome pendant mounting pole, 200 mm |
| TR-SE24-A-IN | Dome pendant mounting pole, 500 mm |
| TR-JB07/WM03-G-IN-V2 | Wall mounting assembly bracket for 32 mm fixed-dome and mini fixed-dome cameras |
| TR-WM03-D-IN-V2 | Wall mounting bracket for fixed-dome and plastic turret cameras |
| TR-UC08-C-V2 | Bullet and dome corner mounting bracket |
| TR-UP06-C-IN-V2 | Pole mounting bracket for bullet junction box |
