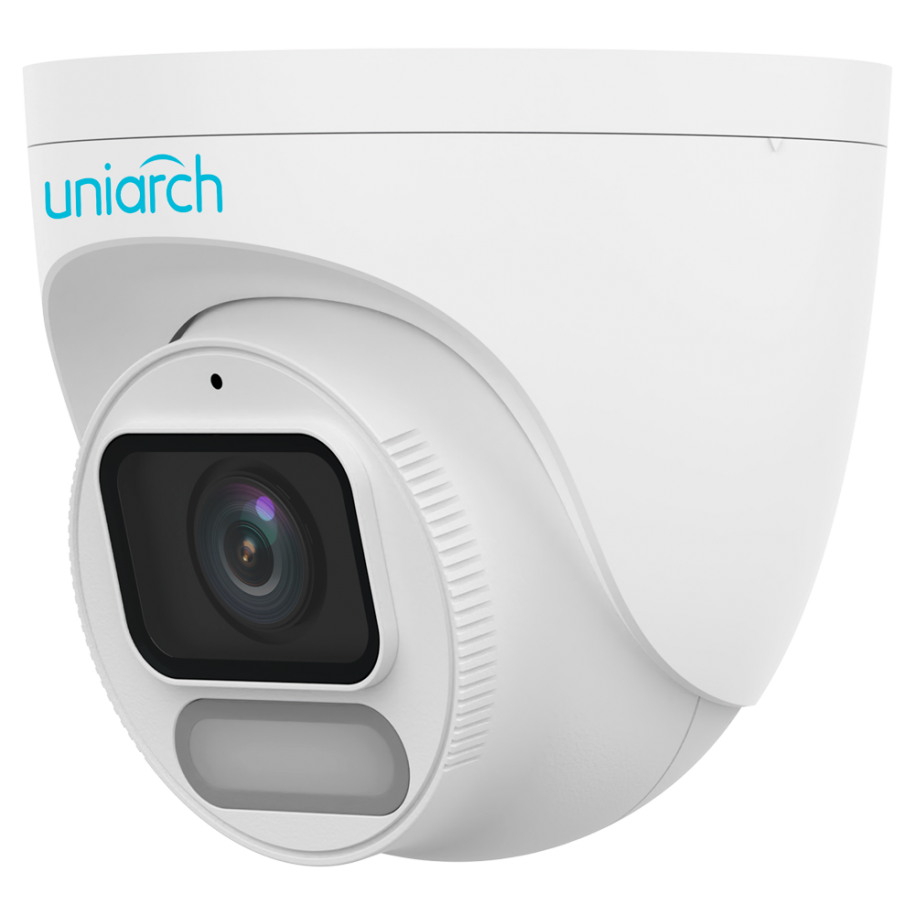

UNV - IPC-T242-ADF40K-WP - 2MP Halo Fixed Camera Uniarch
• IP Dome Camera
• 1/2.7"
• 2MP CMOS @ 30 fps
• LED illumination up to 30m
• F1.0, 4.0 mm lens
• 120dB WDR
• HLC, BLC, 2D/3D DNR
• Ultra 265, H.265, H.264, MJPEG
• 2 streams
• Built-in microphone
• Motion Detection
• IP67
• PoE
| Camera Type | IP Dome Video Camera |
| Sensor | 1/2.7" 2MP CMOS |
| Maximum Frame Rate | 30 fps |
| Lens | 4.0 mm |
| Aperture | F1.0 |
| LED Illumination Range | Up to 30 m |
| Wide Dynamic Range (WDR) | 120 dB |
| Light Control Features | HLC, BLC |
| Digital Noise Reduction | 2D/3D DNR |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Streams | 2 streams |
| Audio | Built-in microphone |
| Intelligent Detection | Motion detection, Ultra Motion Detection (UMD) |
| Ingress Protection | IP67 |
| Operating Temperature | -40°C to +60°C |
| Packaging | Color packaging with simplified manual |
| Power Supply | DC 12V ± 25% PoE (Power over Ethernet) |
This IP Dome Camera features a 2-megapixel image sensor using a 1/2.7-inch CMOS, delivering a maximum resolution of 1080P at 30 frames per second. It is equipped with a fixed 4mm F1.0 lens. For low-light operation, it includes a built-in microphone and LED illumination up to 30 meters. Video compression uses Ultra 265, H.265, H.264, and MJPEG formats.
The imaging includes 120 dB Wide Dynamic Range, Highlight Compensation, Backlight Compensation, and 2D and 3D Digital Noise Reduction. It supports Motion Detection and Ultra Motion Detection. The housing has an IP67 protection rating against dust and water and operates in a temperature range from -40ºC to 60ºC. Power can be supplied via DC 12V or Power over Ethernet, with consumption not exceeding the PoE standard limit.
