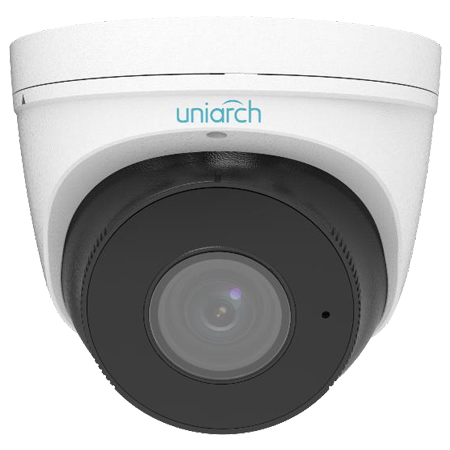

Uniview - IPC-T312-APKZ - Uniarch 2MP VF Turret 2.8-12mm
Part number:
IPC-T312-APKZ
Price:
2MP VF Turret 2.8-12mm
Features:
Optics
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Built-in Mic
Compression
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| IPC-T312-APKZ | ||||||
| Camera | ||||||
| Sensor | 1/2.7", progressive scan, CMOS | |||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | ||
| 2.8 | 42 | 16.8 | 8.4 | |||
| 12 | 180 | 72 | 36 | |||
| Angle of View (H) | 108.05°~ 32.59° | |||||
| Angle of View (V) | 56.81°~ 18.36° | |||||
| Angle of View (O) | 111.91°~36.53° | |||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 75° | Rotate: 0° ~ 360° | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Minimum Illumination | Colour: 0.01Lux (F1.8, AGC ON) 0Lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| S/N | >52dB | |||||
| IR Range | Up to 30m (98ft) IR range | |||||
| Defog | Digital Defog | |||||
| WDR | 120dB | |||||
| Audio | ||||||
| Audio Compression | G.711 | |||||
| Suppression | Supported | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 128GB | |||||
| Network Storage | ANR,NAS(NFS) | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas | |||||
| ROI | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Smart | ||||||
| Behavior Detection | intrusion(based on human body detection) | |||||
| motion detection, tampering alarm, audio detection | ||||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, RTMP | |||||
| Compatible Integration | ONVIF (Profile S, Profile T, Profile G), API | |||||
| Interface | ||||||
| Network | 10/100M Base-TX Ethernet | |||||
| Built-in Mic | Supported | |||||
| General | ||||||
| Power | DC 12V±25%, PoE | |||||
| Power consumption: Max 6.0W | ||||||
| Dimensions (Ø x H) | Ø129 x 110mm (Ø5.1” x 4.3”) | |||||
| Weight | 0.67kg (1.48lb) | |||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Surge Protection | 6KV | |||||
| Ingress Protection | IP67 | |||||
| Reset Button | Supported | |||||
