UNV - IPC-T314-ADZK - 4MP WDR VF IR Turret Network Camera
Part number:
Price:
Product Overview

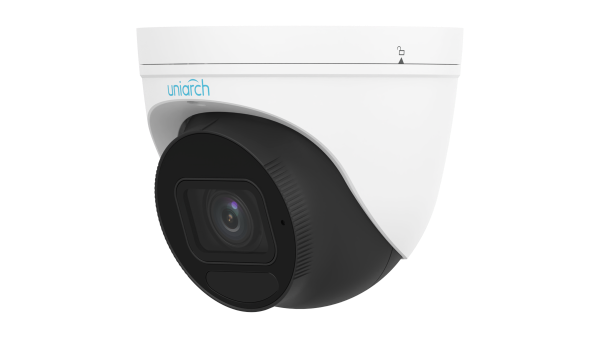

The Uniarch IPC-T314-ADZK is a 4MP WDR varifocal infrared turret network camera with a motorized 2.8–12 mm lens. It provides detailed 2560 × 1440 video, 120 dB true WDR, Smart IR illumination up to 30 m, and human/vehicle detection for dependable surveillance in changing lighting conditions.
The camera supports Ultra 265 compression, edge storage, built-in audio, DC 12 V or PoE power, and IP67 protection for indoor and outdoor installations.
Key Configuration
Model: IPC-T314-ADZK | Resolution: 4MP, 2560 × 1440 at up to 25 fps | Lens: 2.8–12 mm motorized varifocal, F1.6 | Connectivity: 10/100 Mbps RJ45, ONVIF Profile S/G/T | Protection: IP67
Key Features
- · 4MP 1/2.7-inch CMOS sensor with 2560 × 1440 video at up to 25 fps
- · 2.8–12 mm motorized varifocal lens with 102.8° to 35.8° horizontal field of view
- · Smart IR illumination up to 30 m with automatic or manual control
- · 120 dB true WDR for high-contrast lighting conditions
- · Ultra 265, H.265, H.264, and MJPEG video compression
- · 2D/3D digital noise reduction, HLC, BLC, and digital defog
- · Cross-line and intrusion detection based on human-body detection
- · Ultra Motion Detection for human and vehicle targets
- · MicroSD edge storage up to 512 GB with ANR and NAS support
- · IP67 protection, 4 kV surge protection, and DC 12 V or IEEE 802.3af PoE power
Technical Context
The motorized varifocal lens allows the viewing angle to be adjusted for wide-area monitoring or more focused scene coverage. True WDR balances bright and dark regions, while Smart IR provides controlled infrared illumination for clear night images across distances up to 30 m.
Installation Notes
The metal turret housing supports pan adjustment from 0° to 360°, tilt from 0° to 90°, and rotation from 0° to 360°. It operates from -30°C to 60°C with humidity up to 95% RH, non-condensing. Power can be supplied through DC 12 V or IEEE 802.3af PoE. Optional junction-box, wall, pendant, pole, corner, and cable-gland accessories are available.
| Product Information | |
| Product Model | IPC-T314-ADZK |
| Product Type | 4MP WDR variable-focal-length IR turret network camera |
| Image Sensor | 1/2.7" CMOS |
| Material | Metal |
| Camera and Lens | |
| Maximum Resolution | 4MP (2560 × 1440) |
| Focal Length | 2.8–12 mm motorized lens |
| Iris | F1.6 |
| Horizontal Field of View | 102.8°–35.8° |
| Vertical Field of View | 55.6°–20.3° |
| Diagonal Field of View | 122.0°–41.2° |
| Minimum Illumination | 0.003 lux at F1.6, AGC on 0 lux with IR illumination |
| Day/Night | IR-cut filter with automatic switching |
| Shutter | Auto / Manual, 1–1/100,000 s |
| Signal-to-Noise Ratio | >52 dB |
| Wide Dynamic Range | 120 dB true WDR |
| Adjustment Angle | Pan: 0°–360° Tilt: 0°–90° Rotate: 0°–360° |
| DORI Distance | |
| Detect | 42.0–180.0 m (137.8–590.6 ft) |
| Observe | 21.0–90.0 m (68.9–295.3 ft) |
| Recognize | 10.1–43.2 m (33.1–141.7 ft) |
| Identify | 6.3–27.0 m (20.7–88.6 ft) |
| Infrared Illumination | |
| Supplemental Light | IR |
| IR Illumination Distance | Up to 30 m (98.4 ft) |
| Wavelength | 850 nm |
| IR Control | Auto / Manual |
| Video | |
| Main Stream | 4MP (2560 × 1440) at up to 25 fps 3MP (2304 × 1296) at up to 30 fps 1080p (1920 × 1080) at up to 30 fps 720p (1280 × 720) at up to 30 fps |
| Sub Stream | D1 (720 × 576), 640 × 360, 2CIF (704 × 288), or CIF (352 × 288) at up to 30 fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Profiles | Baseline, Main, High |
| Video Bit Rate | 128 Kbps–6144 Kbps |
| Video Streams | Dual streams |
| U-Code | Supported |
| OSD | Up to 4 OSD areas |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image and Detection Features | |
| Image Functions | Auto/outdoor/fine-tune/sodium lamp/locked/Auto2/area white balance, Smart IR, 2D/3D DNR, HLC, BLC, and digital defog |
| Flip Modes | Normal, vertical, horizontal, 180°, 90° clockwise, and 90° anti-clockwise |
| Basic Detection | Cross-line detection based on human body detection, intrusion detection based on human body detection, motion detection, Ultra Motion Detection for humans and vehicles, tampering alarm, and audio detection |
| General Functions | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, and HTTP authentication |
| Audio | |
| Microphone | Built-in microphone |
| Audio Compression | G.711U, G.711A, AAC-LC |
| Audio Bit Rate | G.711U/G.711A: 64 Kbps AAC-LC: 128 Kbps |
| Two-Way Audio | Not available |
| Audio Suppression | Supported |
| Sampling Rate | G.711U/G.711A: 8 kHz AAC-LC: 8 kHz, 16 kHz, 48 kHz |
| Storage and Network | |
| Edge Storage | MicroSD card up to 512 GB |
| Network Storage | ANR and NAS (NFS) |
| Network Interface | 1 × RJ-45 10/100 Mbps Base-TX Ethernet |
| Network Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, and SNMP |
| Interoperability | ONVIF Profiles S/G/T, SDK, and API |
| User Management | Up to 32 users with Administrator, Common User, and Operator levels |
| Client Software | Uniarch client and Uniarch Care |
| Web Browser | Plug-in live view: Internet Explorer 10+, Chrome 45+, Firefox 52+, Edge 79+ Plug-in-free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interfaces | |
| Audio I/O | Not available |
| Alarm I/O | Not available |
| Built-in Speaker | Not available |
| Wi-Fi | Not available |
| Video Output | Not available |
| Reset Button | Supported |
| Electrical and Environmental | |
| Power Supply | 12 VDC ±25% or PoE IEEE 802.3af |
| Power Consumption | Maximum 7.5 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Ingress Protection | IP67 |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Storage Temperature | -30°C to 60°C (-22°F to 140°F) |
| Storage Humidity | ≤95% RH, non-condensing |
| Dimensions | Ø129 × 110 mm Ø5.1 × 4.3 in |
| Weight | 0.66 kg (1.46 lb) |
| Surge Protection | 4 kV |
| Certifications | |
| Certifications | CE-EMC, FCC, CE-LVD, CE-RoHS, WEEE |
| Optional Accessories | |
| TR-JB03-H-IN-V2 | Junction box for metal turret camera with rear cable routing |
| TR-JB07/WM03-F-IN-V2 | Wall mounting assembly bracket for 3-inch hemisphere camera |
| TR-WM03-B-IN-V2 | Wall mounting assembly bracket for 3-inch hemisphere camera |
| TR-CM24-IN | Dome pendant mounting bracket for indoor use |
| TR-UC08-C-V2 | Bullet and dome corner mounting bracket |
| TR-UP06-C-IN-V2 | Pole mounting bracket for bullet junction box |
| TR-SE24-A-IN | Dome pendant mounting pole, 500 mm |
| TR-SE24-IN | Dome pendant mounting pole, 200 mm |
| TR-A01-IN | NPT 3/4" waterproof cable gland |
| TR-JB03-J-IN | Junction box for metal turret camera with rear cable routing |
