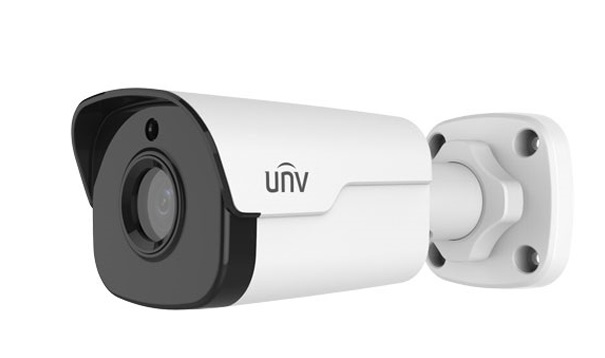

Uniview - IPC2122SR3-APF60-C - UNV 2MP Network Bullet Cameras(6.0mm,30IR,PoE,MIC,Alarm,H.265)
Part number:
IPC2122SR3-APF60-C
Price:
UNV 2MP Network Bullet Cameras(6.0mm,30IR,PoE,MIC,Alarm,H.265)
Optics:
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
Optical glass window with higher light transmittance- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression:
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 9:16 corridor format
Network:
- ONVIF Conformance
Structure:
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| IPC2122SR3-APF40-C | IPC2122SR3-APF60-C | |||||||
| Camera | ||||||||
| Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 4.0mm@F1.6 | 6.0mm@F1.6 | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 4 | 60 | 24 | 12 | 6 | ||||
| 6 | 90 | 36 | 18 | 9 | ||||
| Angle of View (H) | 80.8° | 54.9° | ||||||
| Angle of View (V) | 44.1° | 30.2° | ||||||
| Angle of View (O) | 99.4° | 67.5° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Minimum Illumination | Colour: 0.005Lux (F1.6, AGC ON) 0Lux with IR on | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | >52dB | |||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| Defog | Digital Defog | |||||||
| WDR | DWDR | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |||||||
| 9:16 Corridor Mode | Supported | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 8 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Audio | ||||||||
| Audio Compression | G.711 | |||||||
| Suppression | Supported | |||||||
| Sampling Rate | 8KHZ | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | |||||||
Name
Description
Size
Downloads
File
Datasheet
0.3mb
