UNV - IPC2124SB-ADF28KM-DL-I1 - 4MP Fixed Intelligent Dual light Bullet Network Camera

Product Overview

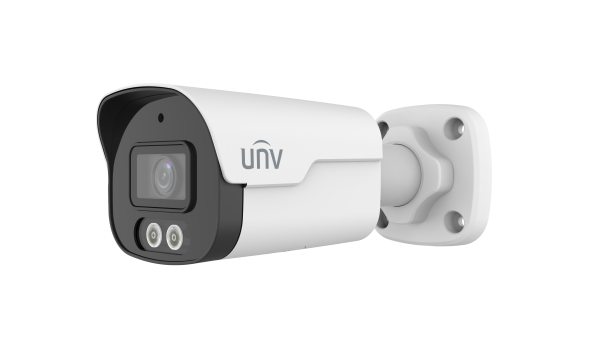

The Uniview IPC2124SB-ADF28KM-DL-I1 is a 4MP fixed intelligent dual-light bullet network camera with a 2.8 mm wide-angle lens. It combines Smart Intrusion Prevention, people counting, crowd-density monitoring, 120 dB true WDR, and dual-light illumination for advanced day-and-night surveillance.

The camera supports 4MP video at up to 30 fps, triple-stream encoding, microSD storage up to 512 GB, DC 12 V or IEEE 802.3af PoE power, and IP67 protection.

Key Configuration

Model: IPC2124SB-ADF28KM-DL-I1 | Resolution: 4MP, up to 2688 × 1520 at 30 fps | Lens: 2.8 mm fixed, F1.6 | Connectivity: 10/100 Mbps RJ45 with ONVIF Profile S/G/T/M | Protection: IP67

Key Features

• · 4MP 1/2.9-inch CMOS sensor with 2688 × 1520 video at up to 30 fps
• · 2.8 mm fixed wide-angle lens with 104.5° horizontal field of view
• · Dual-light illumination with infrared and warm light up to 40 m each
• · 120 dB true WDR, 2D/3D DNR, HLC, BLC, and digital defog
• · Smart Intrusion Prevention with cross-line, intrusion, enter-area, and leave-area detection
• · Target classification and false-alarm filtering for people, vehicles, and non-motor vehicles
• · People-flow counting and crowd-density detection
• · Ultra 265, H.265, H.264, and MJPEG compression with triple streams
• · 9:16 corridor mode, ROI encoding, and microSD edge storage up to 512 GB
• · DC 12 V or IEEE 802.3af PoE power, 4 kV surge protection, and IP67 housing

Technical Context

Dual-light illumination combines discreet infrared monitoring with warm light for color-assisted night scenes. Smart Intrusion Prevention classifies detected targets to reduce false alarms, while people counting and crowd-density analytics provide occupancy and flow information for monitored areas.

Installation Notes

The metal bullet housing supports 3-axis adjustment and operates from -30°C to 60°C with humidity up to 95% RH, non-condensing. Power can be supplied through DC 12 V or IEEE 802.3af PoE. Optional junction-box, pole-mount, cable-gland, and corner-mount accessories are available.
