UNV - IPC2124SB-ADF40KM-DL-I1 - 4MP Fixed Dual-light Bullet NetWork Camera
Product Overview

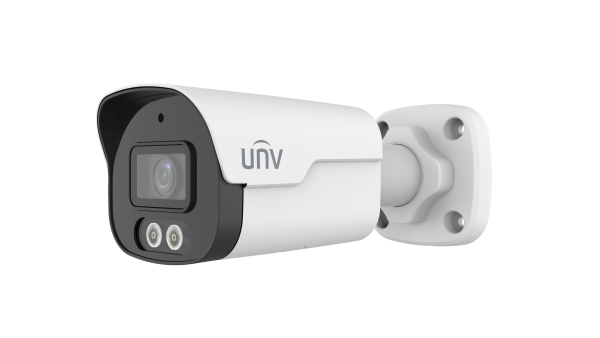

The Uniview IPC2124SB-ADF40KM-DL-I1 is a 4MP fixed intelligent dual-light bullet network camera with a 4.0 mm lens. It combines Smart Intrusion Prevention, people counting, crowd-density monitoring, 120 dB true WDR, and dual-light illumination for advanced day-and-night surveillance.
The camera supports 4MP video at up to 30 fps, triple-stream encoding, microSD storage up to 512 GB, DC 12 V or IEEE 802.3af PoE power, and IP67 protection.
Key Configuration
Model: IPC2124SB-ADF40KM-DL-I1 | Resolution: 4MP, up to 2688 × 1520 at 30 fps | Lens: 4.0 mm fixed, F1.6 | Connectivity: 10/100 Mbps RJ45 with ONVIF Profile S/G/T/M | Protection: IP67
Key Features
- · 4MP 1/2.9-inch CMOS sensor with 2688 × 1520 video at up to 30 fps
- · 4.0 mm fixed lens with 82.2° horizontal field of view
- · Dual-light illumination with infrared and warm light up to 40 m each
- · 120 dB true WDR, 2D/3D DNR, HLC, BLC, and digital defog
- · Smart Intrusion Prevention with cross-line, intrusion, enter-area, and leave-area detection
- · Target classification and false-alarm filtering for people, vehicles, and non-motor vehicles
- · People-flow counting and crowd-density detection
- · Ultra 265, H.265, H.264, and MJPEG compression with triple streams
- · 9:16 corridor mode, ROI encoding, and microSD edge storage up to 512 GB
- · DC 12 V or IEEE 802.3af PoE power, 4 kV surge protection, and IP67 housing
Technical Context
Dual-light illumination combines discreet infrared monitoring with warm light for color-assisted night scenes. The 4.0 mm lens provides more focused scene coverage than the 2.8 mm option, while Smart Intrusion Prevention classifies targets to reduce false alarms.
Installation Notes
The metal bullet housing supports 3-axis adjustment and operates from -30°C to 60°C with humidity up to 95% RH, non-condensing. Power can be supplied through DC 12 V or IEEE 802.3af PoE. Optional junction-box, pole-mount, cable-gland, and corner-mount accessories are available.
| Product Information | |
| Model | IPC2124SB-ADF40KM-DL-I1 |
| Product Type | 4MP Fixed Intelligent Dual-Light Bullet Network Camera |
| Image Sensor | 1/2.9" CMOS |
| Maximum Resolution | 4MP |
| Camera and Lens | |
| Lens | 4.0mm fixed lens |
| Aperture | F1.6 |
| Field of View | Horizontal: 82.2° Vertical: 44.8° Diagonal: 96.8° |
| Minimum Illumination | 0.002 lux in color mode, F1.6, AGC ON 0 lux with supplemental light |
| Day/Night | IR-cut filter with automatic switching (ICR) |
| Shutter | Auto/manual, 1/1 to 1/100,000s |
| Adjustment Angle | Pan: 0° to 360° Tilt: 0° to 90° Rotate: 0° to 360° |
| Signal-to-Noise Ratio | >52dB |
| WDR | 120dB true WDR |
| DORI Distance | |
| Detect | 90.0m (295.3ft) |
| Observe | 36.0m (118.1ft) |
| Recognize | 18.0m (59.1ft) |
| Identify | 9.0m (29.5ft) |
| Dual-Light Illumination | |
| Supplemental Light | Dual light: infrared and warm light |
| Illumination Distance | IR: up to 40m (131.2ft) Warm light: up to 40m (131.2ft) |
| Wavelength | 850nm |
| Light Control | Automatic/manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Main Stream | 4MP (2688 × 1520) up to 30fps 4MP (2560 × 1440) up to 30fps 3MP (2304 × 1296) up to 30fps 1080p (1920 × 1080) up to 30fps 720p (1280 × 720) up to 30fps |
| Sub Stream | 720p, D1, 640 × 360, 2CIF and CIF up to 30fps |
| Third Stream | D1, 640 × 360, 2CIF and CIF up to 30fps |
| Video Bit Rate | 128Kbps to 16Mbps |
| Video Streams | Triple-stream encoding |
| H.264 Profiles | Baseline, Main and High Profile |
| U-Code | Supported |
| Corridor Mode | 9:16 corridor mode supported |
| Image and Intelligent Features | |
| Image Features | Auto white balance, outdoor mode, fine tuning, sodium lamp mode, locked mode, area white balance, smart IR, 2D/3D DNR, HLC, BLC, digital defog, image flip and dewarping |
| Smart Intrusion Prevention | Cross-line, intrusion, enter-area and leave-area detection with human, vehicle and non-motor vehicle classification |
| People Counting | People-flow counting and crowd-density detection |
| Basic Detection | Motion detection, ultra motion detection, tampering alarm and audio detection |
| OSD | Up to 8 OSD areas |
| Privacy Mask | Up to 4 areas |
| ROI | Supported |
| Audio | |
| Audio | Built-in microphone |
| Audio Compression | G.711U, G.711A and AAC-LC |
| Audio Bit Rate | G.711U/G.711A: 64Kbps AAC-LC: 128Kbps |
| Two-Way Audio | Not supported |
| Audio Suppression | Supported |
| Storage and Network | |
| Edge Storage | MicroSD card up to 512GB |
| Network Storage | ANR and NAS (NFS) |
| Network Interface | 1 × RJ45 10/100Mbps Base-TX Ethernet port |
| Network Protocols | IPv4/IPv6, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, FTP, SMTP, RTMP, RTP, RTCP, SNMP, 802.1x, SSL/TLS, ICMP and ARP |
| Compatible Integration | ONVIF Profiles S, G, T and M API and SDK |
| User Management | Up to 32 users Administrator and common-user levels |
| Client Software | EZStation and mobile application |
| Interfaces and Functions | |
| Built-in Microphone | Supported |
| Audio I/O | Not available |
| Alarm I/O | Not available |
| Serial Port | Not available |
| Built-in Speaker | Not available |
| Wi-Fi | Not available |
| Video Output | Not available |
| Reset Button | Supported |
| Electrical and Mechanical | |
| Power Supply | 12VDC ±25% or PoE IEEE 802.3af |
| Maximum Power Consumption | 5.2W |
| Power Interface | Ø5.5mm coaxial power plug |
| Material | Metal |
| Dimensions | 156.4 × 63.1 × 62.7mm (6.2 × 2.5 × 2.5in) |
| Weight | 0.42kg (0.93lb) |
| Environmental Protection | |
| Protection Rating | IP67 |
| Operating Environment | -30°C to 60°C (-22°F to 140°F) Humidity: ≤95% RH, non-condensing |
| Storage Environment | -30°C to 60°C (-22°F to 140°F) Humidity: ≤95% RH, non-condensing |
| Surge Protection | 4kV |
| Certifications | |
| EMC | CE-EMC, FCC |
| Safety | CE-LVD, UL/CUL |
| Environmental Compliance | CE-RoHS, WEEE |
| Optional Accessories | |
| Accessories | TR-JB05-A-IN small bullet junction box TR-A01-IN NPT 3/4" waterproof cable gland TR-UP06-B-IN bullet pole mounting bracket TR-UP06-C-IN-V2 pole mounting bracket for bullet junction box TR-UC08-C-V2 bullet and dome corner mounting bracket |
