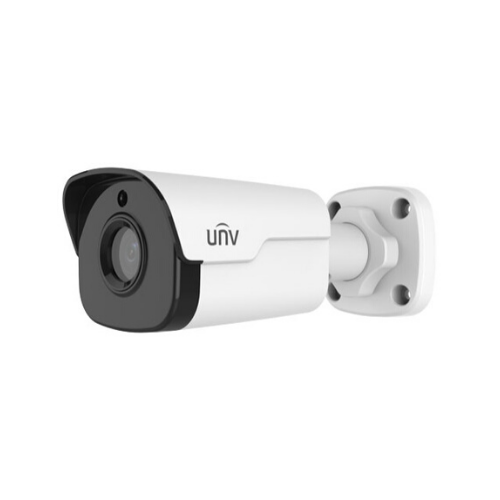

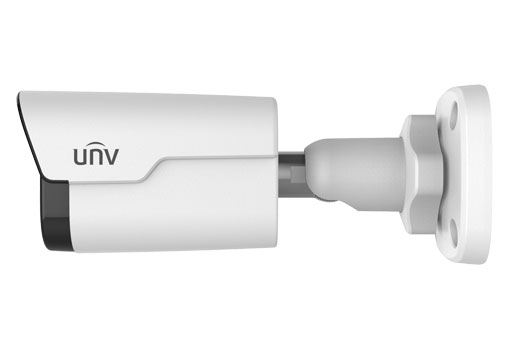

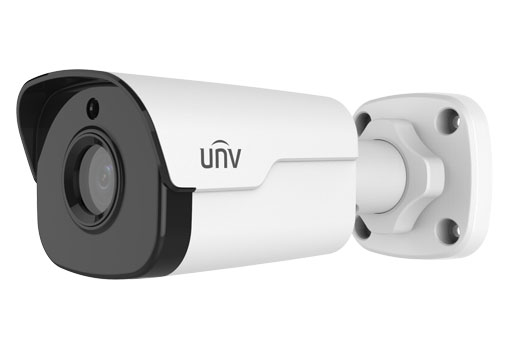

Uniview - IPC2124SR3-APF60 - UNV 4MP Network Bullet Cameras(6.0mm,30IR,PoE,MIC,Alarm,H.265)
Part number:
IPC2124SR3-APF60
Price:
UNV 4MP Network Bullet Cameras(6.0mm,30IR,PoE,MIC,Alarm,H.265)
Optics:
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression:
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 9:16 corridor format
Network:
- ONVIF Conformance
Structure:
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| IPC2124SR3-APF40 | IPC2124SR3-APF60 | |||
| Camera | ||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||
| Lens | 4.0mm@F2.0 | 6.0mm@F2.0 | ||
| Angle of View (H) | 78.9° | 49.9° | ||
| Angle of View (V) | 39.6° | 27° | ||
| Angle of View (O) | 97.1° | 61.4° | ||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||
| Minimum Illumination | Colour: 0.03Lux (F2.0, AGC ON) 0Lux with IR on | |||
| Day/Night | IR-cut filter with auto switch (ICR) | |||
| Digital noise reduction | 2D/3D DNR | |||
| S/N | >52dB | |||
| IR Range | Up to 30m (98ft) IR range | |||
| Defog | Digital Defog | |||
| WDR | 120dB | |||
| Video | ||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||
| Frame Rate | Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |||
| 9:16 Corridor Mode | Supported | |||
| HLC | Supported | |||
| BLC | Supported | |||
| OSD | Up to 8 OSDs | |||
| Privacy Mask | Up to 8 areas | |||
| ROI | Up to 8 areas | |||
| Motion Detection | Up to 4 areas | |||
| Audio | ||||
| Audio Compression | G.711 | |||
| Suppression | Supported | |||
| Sampling Rate | 8KHZ | |||
| Network | ||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |||
| Compatible Integration | ONVIF (Profile S, Profile T), API | |||
| Interface | ||||
| Alarm I/O | 1/1 | |||
