UNV - IPC2126SB-ADF28KMC-I1 - 6MP HD Intelligent Light and Audible Warning Fixed Bullet Network

Product Overview

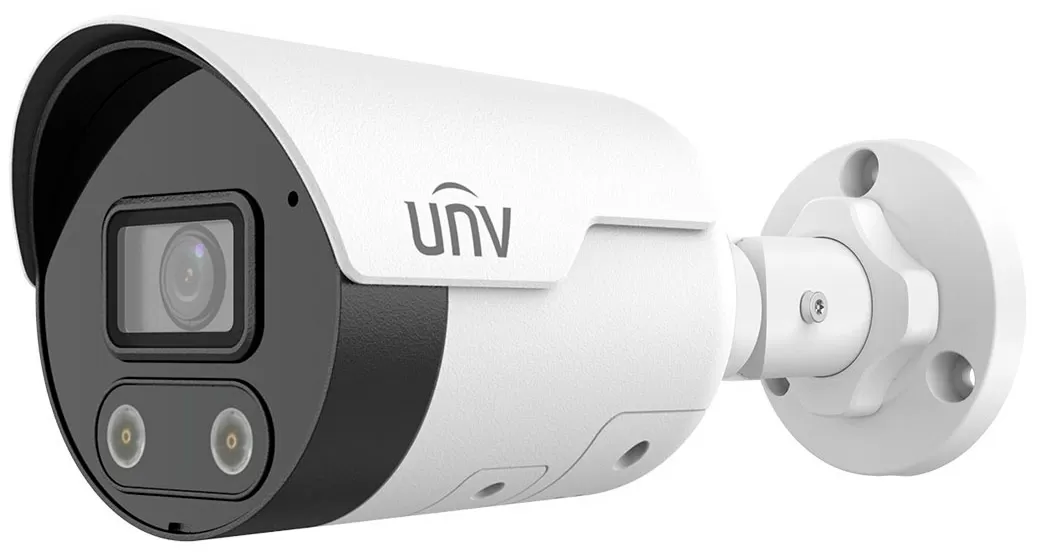

The Uniview IPC2126SB-ADF28KMC-I1 is a 6MP ColorHunter network bullet camera with Wise-ISP technology, a 2.8 mm fixed lens, and intelligent dual-light illumination. It combines full-color imaging, 130 dB true WDR, Smart Intrusion Prevention, people counting, and light-and-audible warning functions for advanced surveillance.

The camera supports 6MP video at up to 25 fps, built-in two-way audio, triple-stream encoding, microSD storage up to 512 GB, and IP67 protection.

Key Configuration

Model: IPC2126SB-ADF28KMC-I1 | Resolution: 6MP, 3200 × 1800 at up to 25 fps | Lens: 2.8 mm fixed, F1.4 | Connectivity: 10/100 Mbps RJ45 with ONVIF Profile S/G/T/M | Protection: IP67

Key Features

• · 6MP 1/2.5-inch CMOS sensor with 3200 × 1800 video at up to 25 fps
• · ColorHunter with Wise-ISP technology for 24-hour full-color imaging
• · 2.8 mm fixed wide-angle lens with 110.1° horizontal field of view
• · Dual-light illumination with infrared and warm light up to 40 m each
• · 130 dB true WDR, 2D/3D DNR, HLC, BLC, and digital defog
• · Smart Intrusion Prevention with target classification for people, vehicles, and non-motorized vehicles
• · People-flow counting and crowd-density monitoring
• · Light-and-audible warning with built-in microphone and speaker
• · Two-way audio, 9:16 corridor mode, ROI encoding, and triple-stream video
• · DC 12 V or IEEE 802.3af PoE power, 4 kV surge protection, and IP67 housing

Technical Context

ColorHunter with Wise-ISP is designed to preserve color detail in low-light scenes, while dual-light illumination adds infrared or warm light up to 40 m. Smart Intrusion Prevention classifies targets to reduce false alarms, and the integrated speaker enables audible warning responses at the camera location.

Installation Notes

The metal bullet housing supports 3-axis adjustment and operates from -30°C to 60°C with humidity up to 95% RH, non-condensing. Power can be supplied through DC 12 V or IEEE 802.3af PoE. Optional junction-box, pole-mount, cable-gland, and corner-mount accessories are available.
