UNV - IPC2128LB-ADF28K-DL - 8MP WDR Dual Light Bullet Network Camera
Product Overview

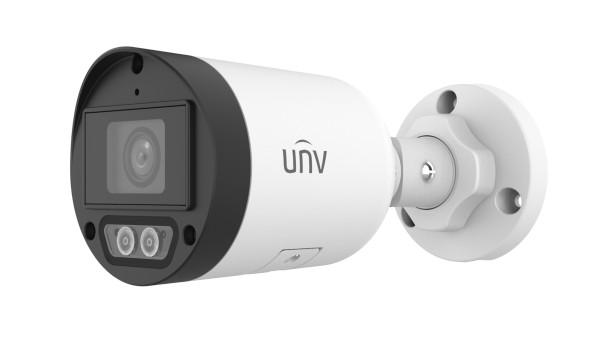

The Uniview IPC2128LB-ADF28K-DL is an 8MP ColorHunter mini bullet network camera with a 2.8 mm fixed lens and Smart Dual Light illumination. It provides 4K-resolution video, human/vehicle Ultra Motion Detection, Smart IR and warm-light illumination, and a built-in microphone for dependable day-and-night surveillance.
The camera supports Ultra 265 compression, ROI encoding, microSD storage up to 512 GB, IEEE 802.3af PoE power, and IP67 protection for outdoor installations.
Key Configuration
Model: IPC2128LB-ADF28K-DL | Resolution: 8MP, 3840 × 2160 at up to 20 fps | Lens: 2.8 mm fixed, F1.6 | Connectivity: 10/100 Mbps RJ45 with ONVIF Profile S/G/T | Protection: IP67
Key Features
- · 8MP 1/2.7-inch CMOS sensor with 3840 × 2160 video at up to 20 fps
- · 2.8 mm fixed wide-angle lens with 100.8° horizontal field of view
- · Smart Dual Light with infrared and warm light illumination up to 30 m each
- · 120 dB WDR, 2D/3D DNR, HLC, BLC, and digital defog
- · Ultra Motion Detection based on human and vehicle detection
- · Ultra 265, H.265, H.264, and MJPEG video compression
- · 9:16 corridor mode, ROI encoding, privacy masking, and dual streams
- · Built-in microphone with AAC-LC, G.711U, and G.711A audio support
- · MicroSD edge storage up to 512 GB with ANR and NAS support
- · DC 12 V or IEEE 802.3af PoE power, 4 kV surge protection, and IP67 housing
Technical Context
The dual-light system combines infrared monitoring with warm-light illumination for flexible night surveillance. The 2.8 mm lens provides broad scene coverage, while Ultra Motion Detection helps identify human and vehicle activity and reduce irrelevant motion events.
Installation Notes
The metal-and-plastic mini bullet housing supports 3-axis adjustment and operates from -30°C to 60°C with humidity up to 95% RH, non-condensing. Power is supplied through DC 12 V or IEEE 802.3af PoE. Optional junction-box, pole-mount, cable-gland, and corner-mount accessories are available.
| Product Information | |
| Model | IPC2128LB-ADF28K-DL |
| Product Type | 8MP ColorHunter Smart Dual-Light Mini Bullet Network Camera |
| Image Sensor | 1/2.7" CMOS |
| Maximum Resolution | 8MP |
| Camera and Lens | |
| Lens | 2.8mm fixed lens |
| Aperture | F1.6 |
| Field of View | Horizontal: 100.8° Vertical: 55.8° Diagonal: 105.7° |
| Minimum Illumination | 0.005 lux in color mode, F1.6, AGC ON 0 lux with supplemental light |
| Day/Night | IR-cut filter with automatic switching (ICR) |
| Shutter | Auto/manual, 1/1 to 1/100,000s |
| Adjustment Angle | Pan: 0° to 360° Tilt: 0° to 90° Rotate: 0° to 360° |
| Signal-to-Noise Ratio | >56dB |
| WDR | 120dB true WDR |
| Camera Adjustment | 3-axis adjustment |
| DORI Distance | |
| Detect | 84.0m (275.6ft) |
| Observe | 33.6m (110.2ft) |
| Recognize | 16.8m (55.1ft) |
| Identify | 8.4m (27.6ft) |
| Dual-Light Illumination | |
| Supplemental Light | Dual light: infrared and warm light |
| IR Illumination Distance | Up to 30m (98.4ft) |
| Warm-Light Illumination Distance | Up to 30m (98.4ft) |
| Wavelength | 850nm |
| Light Control | Automatic/manual |
| Smart IR | Supported |
| Video | |
| Video Compression | Ultra 265, H.265, H.264 and MJPEG |
| Main Stream | 8MP (3840 × 2160) up to 20fps 5MP (3072 × 1728) up to 30fps 4MP (2560 × 1440) up to 30fps 1080p (1920 × 1080) up to 30fps 720p (1280 × 720) up to 30fps |
| Sub Stream | 1080p, 720p, D1, 640 × 360, 2CIF and CIF up to 30fps |
| Video Bit Rate | 128Kbps to 16Mbps |
| Video Streams | Dual-stream encoding |
| H.264 Profiles | Baseline, Main and High Profile |
| U-Code | Supported |
| Corridor Mode | 9:16 corridor mode supported |
| Image and Intelligent Features | |
| Image Features | Auto white balance, outdoor mode, fine tuning, sodium lamp mode, locked mode, area white balance, smart IR, 2D/3D DNR, HLC, BLC and digital defog |
| Basic Detection | Motion detection, ultra motion detection based on human and vehicle detection, tampering alarm and audio detection |
| OSD | Up to 4 OSD areas |
| Privacy Mask | Up to 4 areas |
| ROI | Supported |
| Image Stabilization | Not supported |
| Dewarping | Not supported |
| Audio | |
| Audio | Built-in microphone |
| Audio Compression | AAC-LC, G.711U and G.711A |
| Audio Bit Rate | G.711U/G.711A: 64Kbps AAC-LC: 128Kbps |
| Two-Way Audio | Not supported |
| Audio Suppression | Supported |
| Sampling Rate | G.711U/G.711A: 8kHz AAC-LC: 8kHz, 16kHz and 48kHz |
| Storage and Network | |
| Edge Storage | MicroSD card up to 512GB |
| Network Storage | ANR and NAS (NFS) |
| Network Interface | 1 × RJ45 10/100Mbps Base-TX Ethernet port |
| Network Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS and 802.1x |
| Compatible Integration | ONVIF Profiles S, G and T API and SDK |
| User Management | Up to 32 users Administrator, common-user and operator levels |
| Client Software | EZStation and mobile application |
| Interfaces and Functions | |
| Built-in Microphone | Supported |
| Audio I/O | Not available |
| Alarm I/O | Not available |
| Serial Port | Not available |
| Built-in Speaker | Not available |
| Wi-Fi | Not available |
| Video Output | Not available |
| Reset Button | Not available |
| Electrical and Mechanical | |
| Power Supply | 12VDC ±25% or PoE IEEE 802.3af |
| Maximum Power Consumption | 5.3W |
| Power Interface | Ø5.5mm coaxial power plug |
| Material | Metal and plastic |
| Dimensions | 162 × 67 × 67mm (6.4 × 2.6 × 2.6in) |
| Weight | 0.25kg (0.55lb) |
| Environmental Protection | |
| Protection Rating | IP67 |
| Operating Environment | -30°C to 60°C (-22°F to 140°F) Humidity: ≤95% RH, non-condensing |
| Storage Environment | -30°C to 60°C (-22°F to 140°F) Humidity: ≤95% RH, non-condensing |
| Surge Protection | 4kV |
| Certifications | |
| EMC | CE-EMC, FCC |
| Safety | CE-LVD, UL/CUL |
| Environmental Compliance | CE-RoHS, WEEE and Packaging and Packaging Waste Directive 94/62/EC |
| Optional Accessories | |
| Accessories | TR-JB05-B-IN small bullet junction box TR-A01-IN NPT 3/4" waterproof cable gland TR-UP06-C-IN-V2 pole mounting bracket for bullet junction box TR-UC08-C-V2 bullet and dome corner mounting bracket |
