UNV - IPC2128SB-ADF28KM-DL-I1 - 8MP Fixed Dual-light Bullet NetWork Camera

Product Overview

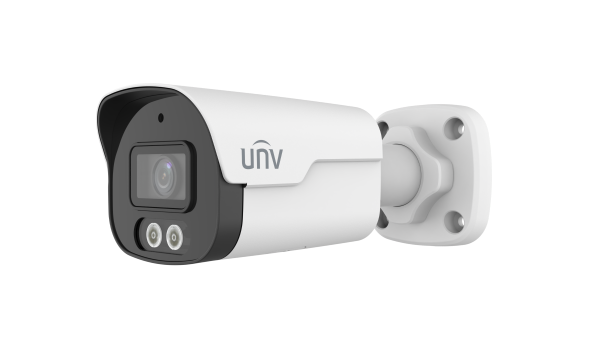

The Uniview IPC2128SB-ADF28KM-DL-I1 is an 8MP ColorHunter network bullet camera with Wise-ISP technology, a 2.8 mm fixed lens, and intelligent dual-light illumination. It combines 4K-resolution video, Smart Intrusion Prevention, people counting, crowd-density monitoring, and 120 dB true WDR for advanced surveillance.

The camera supports Smart IR and warm-light illumination up to 40 m, triple-stream encoding, microSD storage up to 512 GB, IEEE 802.3af PoE power, and IP67 protection.

Key Configuration

Model: IPC2128SB-ADF28KM-DL-I1 | Resolution: 8MP, 3840 × 2160 at up to 25 fps | Lens: 2.8 mm fixed, F1.6 | Connectivity: 10/100 Mbps RJ45 with ONVIF Profile S/G/T/M | Protection: IP67

Key Features

• · 8MP 1/2.7-inch CMOS sensor with 3840 × 2160 video at up to 25 fps
• · ColorHunter with Wise-ISP technology for enhanced low-light color imaging
• · 2.8 mm fixed wide-angle lens with 90° horizontal field of view
• · Dual-light illumination with infrared and warm light up to 40 m each
• · 120 dB true WDR, 2D/3D DNR, HLC, BLC, and digital defog
• · Smart Intrusion Prevention with target classification for people, vehicles, and non-motor vehicles
• · People-flow counting and crowd-density monitoring
• · Ultra 265, H.265, H.264, and MJPEG compression with triple streams
• · 9:16 corridor mode, ROI encoding, and microSD edge storage up to 512 GB
• · DC 12 V or IEEE 802.3af PoE power, 4 kV surge protection, and IP67 housing

Technical Context

ColorHunter with Wise-ISP is designed to preserve color detail in low-light scenes, while dual-light illumination combines infrared and warm light up to 40 m. Smart Intrusion Prevention classifies detected targets to reduce false alarms, and people-counting analytics provide occupancy and flow information.

Installation Notes

The metal-and-plastic bullet housing supports 3-axis adjustment and operates from -30°C to 60°C with humidity up to 95% RH, non-condensing. Power is supplied through DC 12 V or IEEE 802.3af PoE. Optional junction-box, pole-mount, cable-gland, and corner-mount accessories are available.
