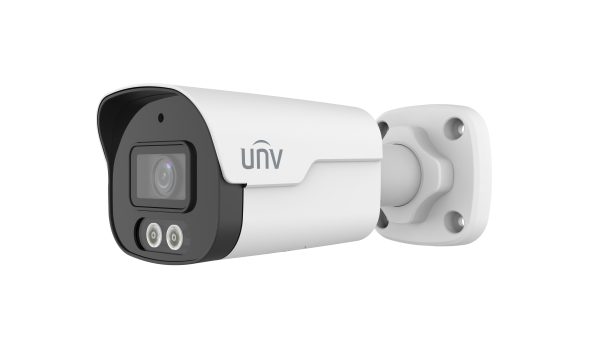

UNV - IPC2128SB-ADF40KM-DL-I1 - 8MP Fixed Dual-light Bullet NetWork Camera

Product Overview

The Uniview IPC2128SB-ADF40KM-DL-I1 is an 8MP ColorHunter network bullet camera with Wise-ISP technology, a 4.0 mm fixed lens, and intelligent dual-light illumination. It combines 4K-resolution video, Smart Intrusion Prevention, people counting, crowd-density monitoring, and 120 dB true WDR for advanced surveillance.

The camera supports Smart IR and warm-light illumination up to 40 m, triple-stream encoding, microSD storage up to 512 GB, IEEE 802.3af PoE power, and IP67 protection.

Key Configuration

Model: IPC2128SB-ADF40KM-DL-I1 | Resolution: 8MP, 3840 × 2160 at up to 25 fps | Lens: 4.0 mm fixed, F1.6 | Connectivity: 10/100 Mbps RJ45 with ONVIF Profile S/G/T/M | Protection: IP67

Key Features

• · 8MP 1/2.7-inch CMOS sensor with 3840 × 2160 video at up to 25 fps
• · ColorHunter with Wise-ISP technology for enhanced low-light color imaging
• · 4.0 mm fixed lens with 112.1° horizontal field of view
• · Dual-light illumination with infrared and warm light up to 40 m each
• · 120 dB true WDR, 2D/3D DNR, HLC, BLC, and digital defog
• · Smart Intrusion Prevention with target classification for people, vehicles, and non-motor vehicles
• · People-flow counting and crowd-density monitoring
• · Ultra 265, H.265, H.264, and MJPEG compression with triple streams
• · 9:16 corridor mode, ROI encoding, and microSD edge storage up to 512 GB
• · DC 12 V or IEEE 802.3af PoE power, 4 kV surge protection, and IP67 housing

Technical Context

ColorHunter with Wise-ISP is designed to preserve color detail in low-light scenes, while dual-light illumination combines infrared and warm light up to 40 m. The 4.0 mm lens provides more focused scene coverage than the 2.8 mm option, while Smart Intrusion Prevention classifies detected targets to reduce false alarms.

Installation Notes

The metal-and-plastic bullet housing supports 3-axis adjustment and operates from -30°C to 60°C with humidity up to 95% RH, non-condensing. Power is supplied through DC 12 V or IEEE 802.3af PoE. Optional junction-box, pole-mount, cable-gland, and corner-mount accessories are available.
