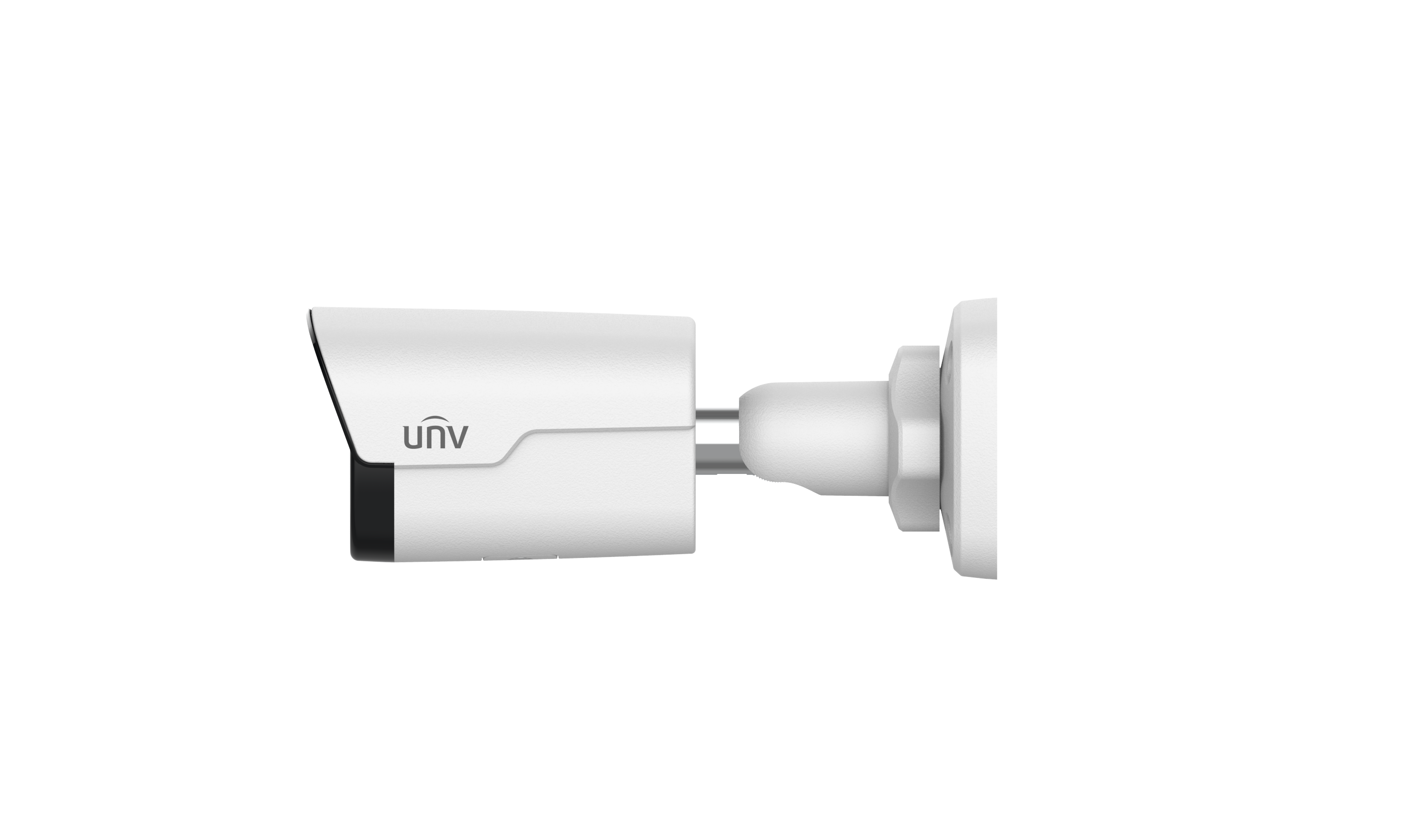

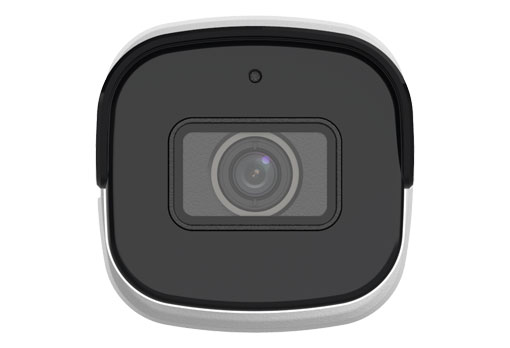

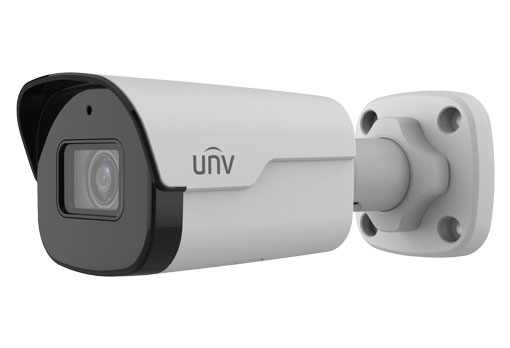

Uniview - IPC2128SB-ADF40KM-I0 - 8MP LightHunter Fixed IR Bullet Network Camera, 4.0mm
Part number:
IPC2128SB-ADF40KM-I0
Price:
UNV 8MP LightHunter WDR Network IR Fixed Bullet (4.0mm, Premier Protection, PoE, Metal, 30m IR)
Features:
- High quality image with 8MP, 1/2.7"CMOS sensor
- 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
| IPC2128SB-ADF40KM-I0 | ||||
| Camera | ||||
| Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS | |||
| Minimum Illumination | Colour: 0.0025 lux (F1.6, AGC ON) 0 lux with IR on | |||
| Day/Night | IR-cut filter with auto switch (ICR) | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | ||
| WDR | 120dB | |||
| S/N | >56dB | |||
| Lens | ||||
| Lens | 2.8mm@F1.6 | |||
| Iris | Fixed | |||
| Field of View (H) | 112.4° | |||
| Field of View (V) | 60.1° | |||
| Field of View (D) | 146.1° | |||
| DORI | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | |
| 2.8 | 84.0 | 33.6 | ||
| 4.0 | 120.0 | 48.0 | ||
| Illuminator | ||||
| IR Range | Up to 30m (98 ft) IR range | |||
| Wavelength | 850nm | |||
| IR On/Off Control | Auto/Manual | |||
| Video | ||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||
| H.264 code profile | Baseline profile, Main profile, High profile | |||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||
| Video Bit Rate | 128 Kbps~16 Mbps | |||
| U-code | Support | |||
| OSD | Up to 8 OSDs | |||
| Privacy Mask | Up to 4 areas | |||
| ROI | Up to 8 areas | |||
| Video Stream | Triple streams | |||
| Image | ||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||
| Digital Noise Reduction | 2D/3D DNR | |||
| Smart IR | Support | |||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||
| Dewarping | Supported | |||
| HLC | Supported | |||
| BLC | Supported | |||
| Defog | Digital Defog | |||
| Intelligent | ||||
| Smart intrusion prevention | Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection | |||
| Statistical Analysis | People counting, support tripwire people counting and area people counting | |||
| Events | ||||
| Basic Detection | Motion detection, tampering alarm, audio detection | |||
| General Function | Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication | |||
| Audio | ||||
| Audio Compression | G.711 | |||
| Audio Bitrate | 64 Kbps | |||
| Two-way audio | N/A | |||
| Suppression | Supported | |||
| Sampling Rate | 8KHZ | |||
| Storage | ||||
| Edge Storage | Micro SD, up to 256GB | |||
| Network Storage | ANR, NAS(NFS) | |||
| Network | ||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS ,RTMP,SSL/TLS, SSH | |||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | |||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||
| Client | EZStation EZView EZLive | |||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | ||||
| Interface | ||||
| Audio I/O | N/A | |||
| Alarm I/O | N/A | |||
| RS485 | N/A | |||
| Built-in Mic | Support | |||
| Built-in Speaker | N/A | |||
| WIFI | N/A | |||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||
| Video Output | N/A | |||
| Certifications | ||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||
| General | ||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||
| Power consumption: Max 6.0W | ||||
| Power Interface | Ø 5.5mm coaxial power plug | |||
| Dimensions (L × W × H) | 156 × 63 × 63mm (6.1” × 2.5” × 2.5”) | |||
| Weight | 0.41kg ( 0.90lb) | |||
| Material | Metal | |||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||
| Surge Protection | 4KV | |||
| Reset Button | Supported | |||
