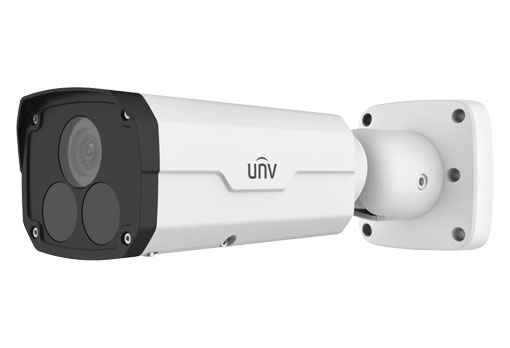

Uniview - IPC2222EBR5-HDUPF60 - UNV 2MP Starlight HD Network IR Fixed Bullet Camera, 6.0mm
Part number:
IPC2222EBR5-HDUPF60
Price:
UNV 2MP Starlight HD Network IR Fixed Bullet Camera (WDR, 6.0mm, Starlight, 50m IR, PoE, SD, H.265, 60fPs)
Features:
Optics
- LightHunter
- 60fps Frame Rate
- Day/night functionality
- Smart IR, up to 50m (164ft)
- IR distance IR anti-reflection window to increase the infrared transmittance
- 120dB TRUE WDR
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra265, H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor format
Network
- ONVIF Conformance
Structure
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
- 3-Axis
| IPC2222EBR5-HDUPF40 | IPC2222EBR5-HDUPF60 | |||||||
| Camera | ||||||||
| Sensor | 1/2.8″, 2.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 4.0mm@F1.6 | 6.0mm@F1.6 | ||||||
| DORI Distance | Lens (mm) | Detect（m） | Observe（m） | Recognize（m） | Identify（m） | |||
| 4.0 | 64.3 | 25.7 | 12.9 | 6.4 | ||||
| 6.0 | 96.4 | 38.6 | 19.3 | 9.6 | ||||
| Angle of View (H) | 78.7° | 53.3° | ||||||
| Angle of View (V) | 42.8° | 29.3° | ||||||
| Angle of View (O) | 96.8° | 65.5° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Minimum Illumination | Colour: 0.001Lux (F1.6, AGC ON) 0Lux with IR on | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| S/N | >52dB | |||||||
| IR Range | Up to 50m (164ft) IR range | |||||||
| wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping | Support |
| HLC | Support |
| BLC | Support |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |
| Interface | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Certifications | |
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 7.5W | |
| Dimensions (L × W × H) | 253.4 × 86 × 71.7mm (9.98” × 3.4” × 2.8”) |
| Net Weight | 1.0kg (2.2lb) |
| Material | Metal |
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| surge protection | 6KV |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
