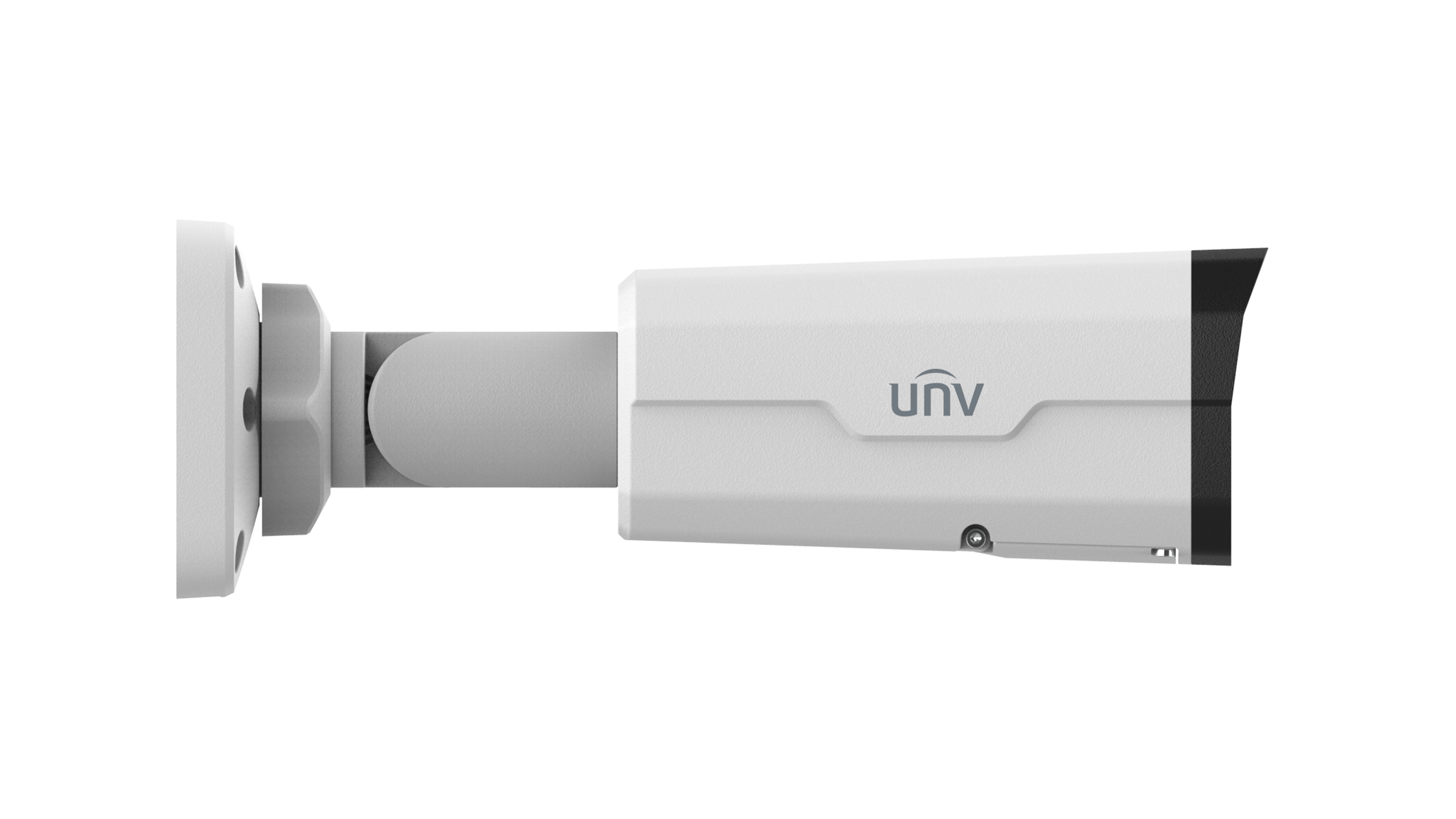

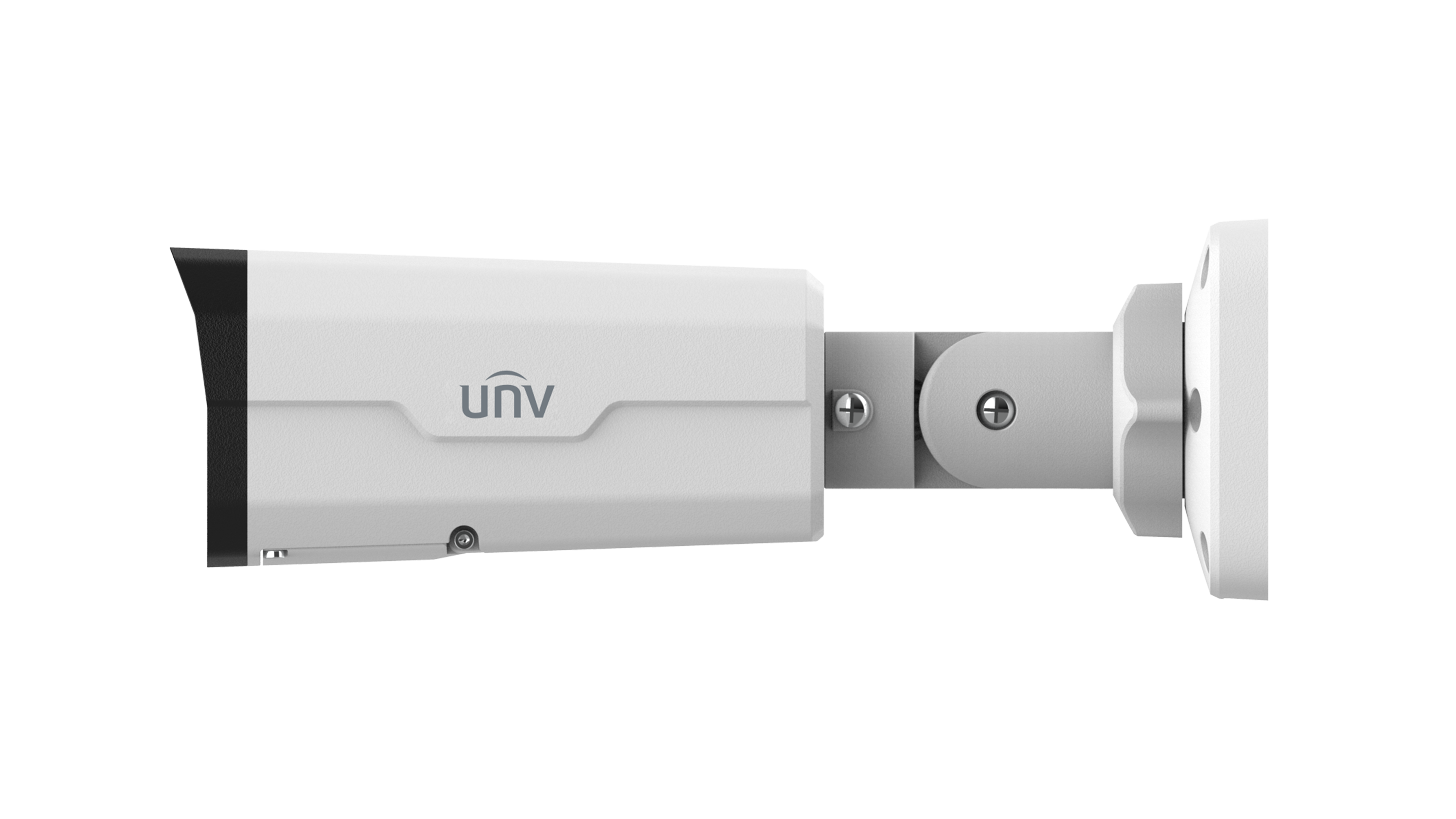

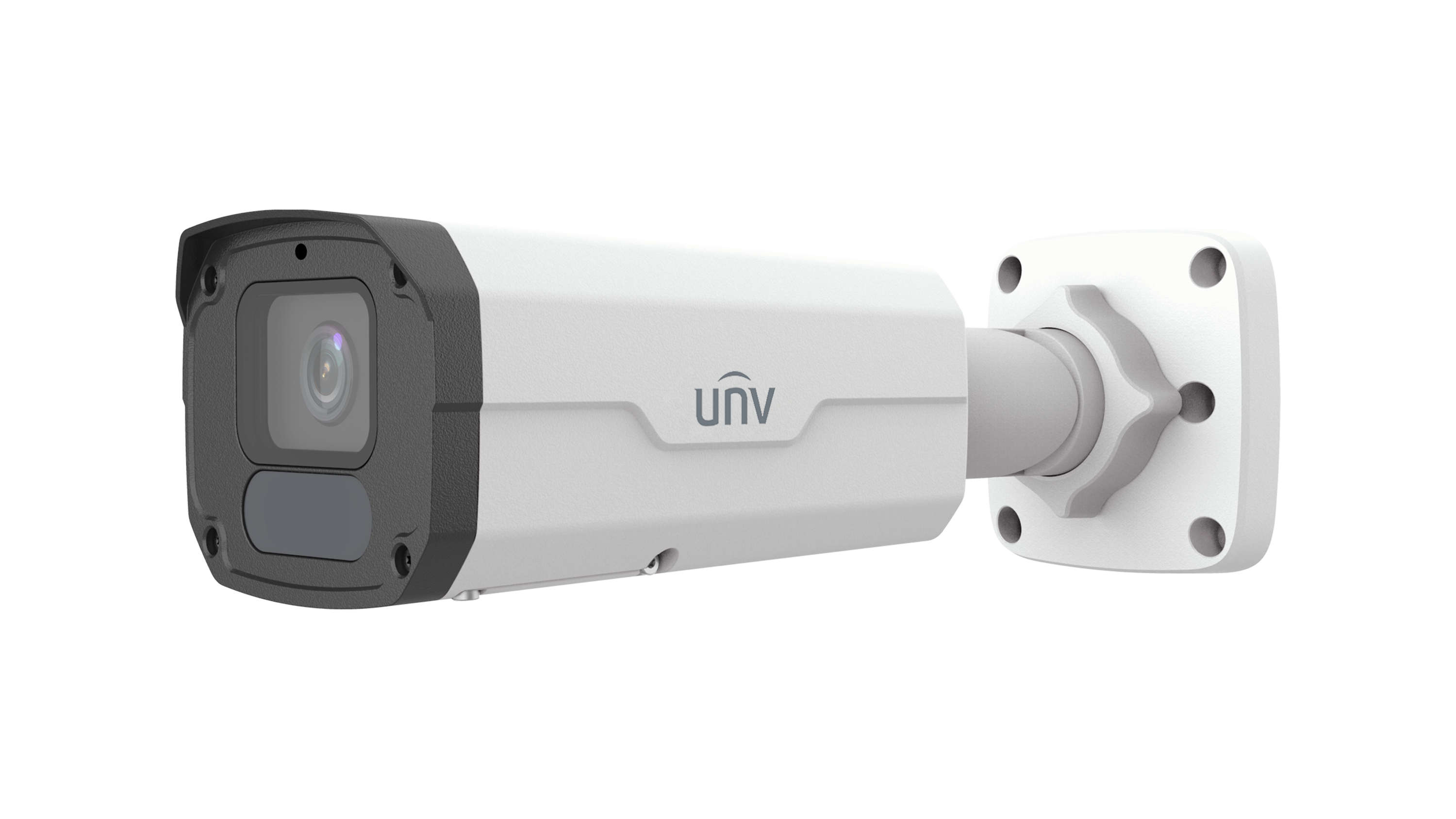

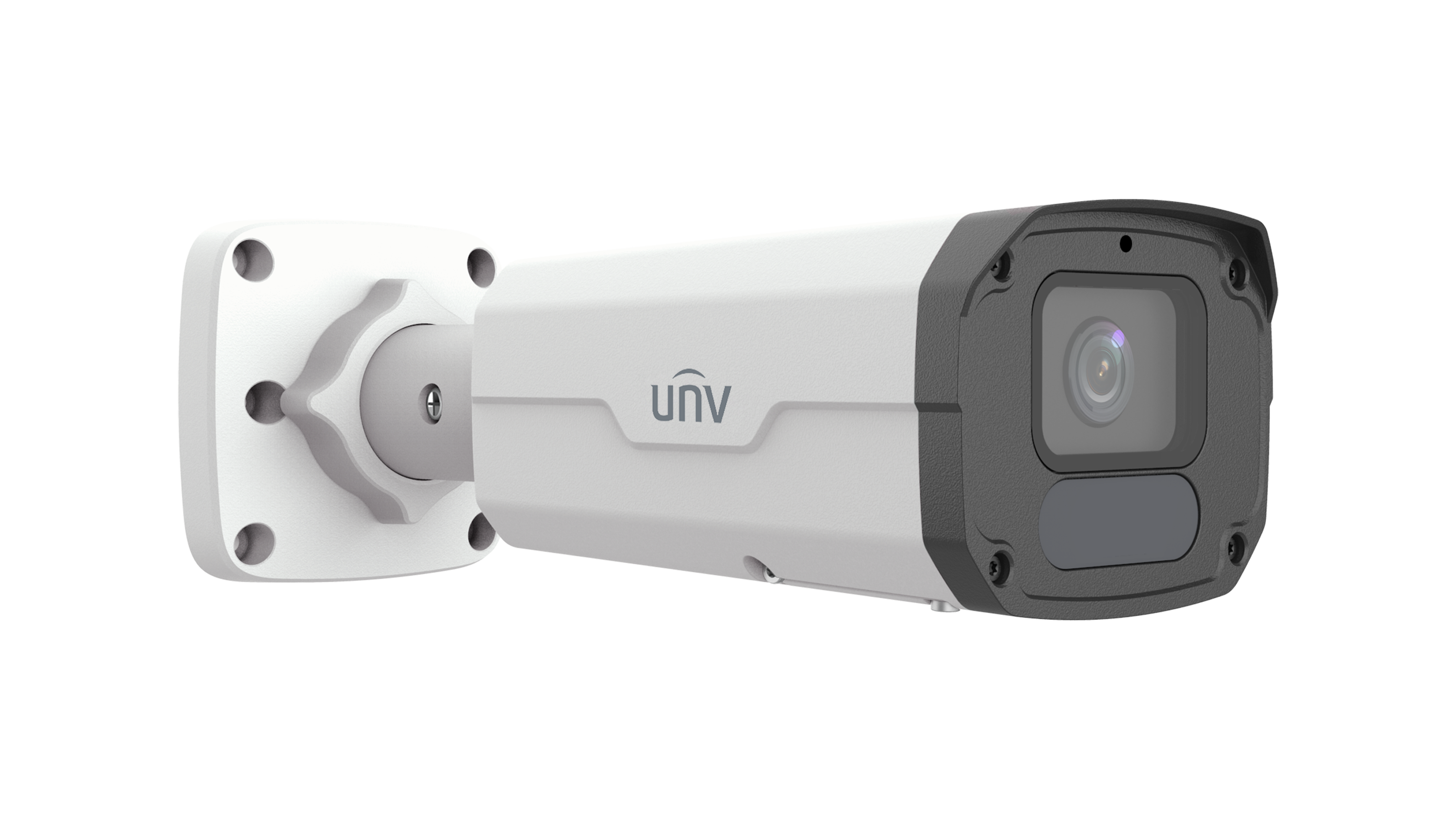

Uniview - IPC2222SB-AHDF60KM-I1 - UNV 2MP Fixed Big Bullet, 6.0mm
Part number:
IPC2222SB-AHDF60KM-I1
Price:
2MP LightHunter Fixed IR Bullet Network Camera, 6.0mm
Features:
- High quality image with 2MP,1/2.8’’ CMOS sensor
- 1920*1080@60fps in the main stream, deliver detailed live while 60fps keeping it smooth and closer to the real image
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, support Cross Line and Intrusion based on human body and vehicle detection
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Support 9:16 Corridor Mode
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Support Smart IR, up to 80m IR range
- DC12V or PoE (IEEE 802.3af) power supply
- Audio 1 in and 1 out, Alarm 1 in and 1 out
- Built-in Mic
- IP67,IK10
| IPC2222SB-AHDF60KM-I1 | |
| Camera | |
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Colour:0.001 lux (F1.6, AGC ON) 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| Lens | |
| Focal Length | 6.0 mm |
| Iris | F1.6 |
| Field of View (H) | 54.0° |
| Field of View (V) | 28.7° |
| Field of View (D) | 66.4° |
| Iris Type | Fixed |
| DORI | |
| DORI Distance(Lens) | 6.0mm |
| DORI Distance(Detect) | 93.1m(305.5ft) |
| DORI Distance(Observe) | 37.2m(122.2ft) |
| DORI Distance(Recognize) | 18.6m(61.1ft) |
| DORI Distance(Identify) | 9.3m(30.5ft) |
| Illuminator | |
| Illumination Distance(IR) | 80 m (262 ft) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Video | |
| Privacy Mask | Up to 4 areas per scene |
| Frame Rate-Main Stream | 1080P (1920*1080), Max 60fps |
| Frame Rate-Sub Stream | 720P (1280*720), Max 60fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| ROI | Up to 8 areas |
| Video Stream | Dual Streams |
| OSD | Up to 4 OSDs |
| Image | |
| Defog | Digital Defog |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Heatwave Reduction | N/A |
| Intelligent | |
| Smart Intrusion Prevention | Support False Alarm Filtering: Cross Line Detection, Intrusion Detection (based on Human Body and Vehicle Detection) |
| Events | |
| Basic Detection | Ultra Motion detection(based on human body and vehicle detection), Motion detection, Audio detection, Tampering alarm |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | API, SDK, ONVIF (Profile S, Profile G, Profile T) |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | UNV-Link, UNV-Link Pro, EZStation |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Interface | |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Built-in Mic | Support |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Certification | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| General | |
| Power | DC12V(±25%) , PoE (IEEE 802.3af) |
| Power Consumption | Max 8W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Dimensions | 245 x 87 x 86mm(9.6” x 3.4” x 3.4”) |
| Weight | 0.82kg(1.81lb) |
| Working Environment | -30℃ ~ 60℃ (-22°F ~ 140°F), Humidity: 5%~95% RH (non-condensing) |
| Storage Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: 5%~95% RH (non-condensing) |
| Web Client Language | 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
