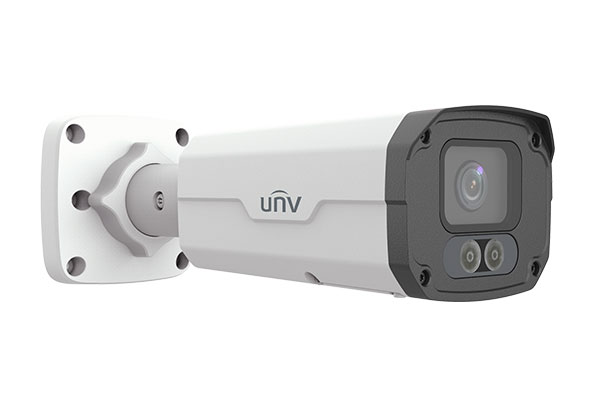

Uniview - IPC2224SE-DF60K-WL-I0 - UNV 4MP White Light Bullet, 6.0mm
Part number:
IPC2224SE-DF60K-WL-I0
Price:
UNV 4MP White Light Bullet, 6.0mm
Features:
- High quality image with 4MP, 1/1.8"CMOS sensor
- 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- Colorhunter technology ensures 24-hour full-color images
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 corridor Mode
- Alarm:1 in/1 out,
- Audio: 1 in/1 out
- Supports 256 G micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
| Camera | |||
| Sensor | 1/1.8″, 4.0 megapixel, progressive scan, CMOS | ||
| Minimum Illumination | Colour: 0.0005Lux (F1.0, AGC ON) | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||
| Adjustment angle | Rotate: 0° ~ 360° | ||
| WDR | 120dB | ||
| S/N | >56dB | ||
| Lens | |||
| Lens | 6.0mm@F1.0 | ||
| Angle of View (H) | 41.0° | ||
| Angle of View (V) | 44.2° | ||
| Angle of View (O) | 37.2° | ||
| DORI | |||
| DORI Distance | Observe（m） | Recognize（m） | Identify（m） |
| 24.8 | 12.4 | 6.2 | |
| 37.2 | 18.6 | 9.3 | |
| Illuminator | |||
| LED Distance | Up to 30m (98ft) | ||
| LEDs Number | 2 | ||
| LED On/Off Control | Auto/Manual | ||
| Video | |||
| Video Compression | Ultra265, H.265, H.264, MJPEG | ||
| H.264 code profile | Baseline profile, Main profile, High profile | ||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||
| Video Bit Rate | 128 Kbps~16 Mbps | ||
| U-code | Support | ||
| ROI | Up to 8 areas | ||
| Video Stream | Triple streams | ||
| OSD | Up to 8 OSDs | ||
| Privacy Mask | Up to 4 areas | ||
| Image | |||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||
| Digital noise reduction | 2D/3D DNR | ||
| Smart Illumination | Support | ||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||
| Dewarping | N\A | ||
| HLC | Support | ||
| BLC | Support | ||
| Defog | Digital Defog | ||
| Audio | |||
| Audio Compression | G.711 | ||
| Audio Bitrate | 64 Kbps | ||
| Two-way audio | Supported | ||
| Suppression | Supported | ||
| Sampling Rate | 8KHZ | ||
| Storage | |||
| Edge Storage | Micro SD, up to 256GB | ||
| Network Storage | ANR, NAS(NFS) | ||
| Network | |||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH | ||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||
| Client | EZStation EZView EZLive | ||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||
| Interface | |||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||
| Alarm I/O | 1/1 | ||
| RS485 | N/A | ||
| Built-in Mic | N/A | ||
| Built-in Speaker | N/A | ||
| WIFI | N/A | ||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||
| Video Output | N/A | ||
| Certifications | |||
| EMC | FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 | ||
| Safety | IEC 62368-1 EN 62368-1 UL 62368-1 | ||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) | ||
| General | |||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||
| Power consumption: Max 9.0W | |||
| Power Interface | Ø 5.5mm coaxial power plug | ||
| Dimensions (L × W × H) | 245× 86 × 85mm (9.6” × 3.4” × 3.3”) | ||
| Weight | 0.87kg (1.92lb) | ||
| Material | Metal | ||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
| surge protection | 4KV | ||
| Reset Button | Supported | ||
| Protection | Ingression protection: IP67 Vandal resistant: IK10 | ||
