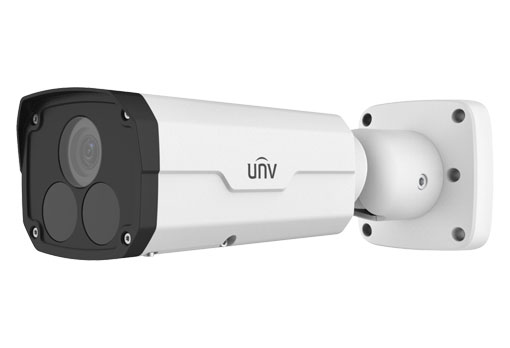

Uniview - IPC2224SR5-DPF60-B - UNV 4MP Network IR Fixed Bullet Camera (6.0mm, 50m IR, WDR, PoE, H.265)
Part number:
IPC2224SR5-DPF60-B
Price:
UNV 4MP Network IR Fixed Bullet Camera (6.0mm, 50m IR, WDR, PoE, H.265)
Features:
Optics:
- Day/night functionality
- Smart IR , up to 50 m (164 ft) IR distance
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
Compression:
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor format
Network:
- ONVIF Conformance
Structure:
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
| IPC2224SR5-DPF40-B | ||||||||
| Camera | ||||||||
| Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 4.0mm@F2.0 | |||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 4.0 | 90 | 36 | 18 | 9 | ||||
| Angle of View (H) | 78.9° | |||||||
| Angle of View (V) | 39.6° | |||||||
| Angle of View (O) | 97.1° | |||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Minimum Illumination | Colour: 0.03Lux (F2.0, AGC ON) 0Lux with IR on | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | >55dB | |||||||
| IR Range | Up to 50m (164ft) IR range | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
| Frame Rate | Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |||||||
| 9:16 Corridor Mode | Supported | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 8 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Smart | ||||||||
| Behavior Detection | Intrusion, cross line, motion detection | |||||||
| Intrusion | Enter and loiter in a pre-defined virtual region | |||||||
| cross line | Cross a pre-defined virtual line | |||||||
| motion detection | Moving within a pre-defined virtual region | |||||||
| Recognition | Face detection, Audio detection | |||||||
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving | |||||||
| Statistical Analysis | People counting | |||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 256GB | |||||||
| Network Storage | ANR | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
| Interface | ||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 9W | ||||||||
| Dimensions (L × W × H) | 253.4 × 86 × 71.7mm (9.98” × 3.4” × 2.8”) | |||||||
| Weight | 1.0kg (2.2lb) | |||||||
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Ingress Protection | IP67 | |||||||
| Vandal Resistant | IK10 | |||||||
