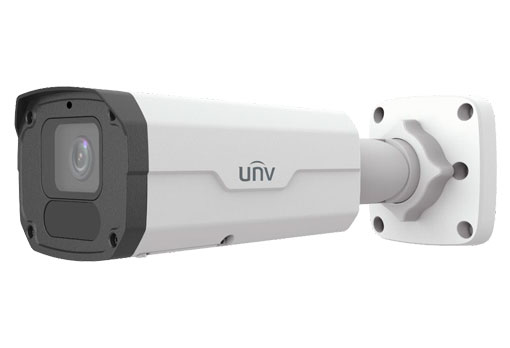

Uniview - IPC2225SB-ADF60KM-I1 - UNV 5MP Fixed Big Bullet, 6.0mm
Part number:
IPC2225SB-ADF60KM-I1
Price:
5MP WDR Lighthunter IR Network Bullet Camera, 6.0mm
Features:
- High quality image with 5MP,1/2.7" CMOS sensor
- 2880*1620@30fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, support Cross Line and Intrusion based on human body and vehicle detection
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Support 9:16 Corridor Mode
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Support Smart IR, up to 80m IR range
- DC12V or PoE (IEEE 802.3af) power supply
- Audio 1 in and 1 out, Alarm 1 in and 1 out
- Built-in Mic
- IP67,IK10
| IPC2225SB-ADF28KM-I1 | IPC2225SB-ADF40KM-I1 | IPC2225SB-ADF60KM-I1 | ||||
| Camera | ||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||||
| Min. Illumination | Colour:0.003 lux (F1.6, AGC ON) 0 lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| WDR | 120dB | |||||
| S/N | >56dB | |||||
| Lens | ||||||
| Lens type | 2.8mm@F1.6 | 4.0mm@F1.6 | 6.0mm@F1.6 | |||
| Field of View (H) | 106.7° | 87.5° | 57.4° | |||
| Field of View (V) | 57.1° | 46.3° | 30.0° | |||
| Field of View (D) | 115.7° | 92.4° | 64.1° | |||
| DORI | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 63.0(206.7ft) | 25.2(82.7ft) | 12.6(41.3ft) | 6.3(20.7ft) | ||
| 4.0 | 90.0(295.3ft) | 36.0(118.1ft) | 18.0(59.1ft) | 9.0(29.5ft) | ||
| 6.0 | 135.0(442.9ft) | 54.0(177.2ft) | 27.0(88.6ft) | 13.5(44.3ft) | ||
| Illuminator | ||||||
| IR Range | Up to 80m (262 ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| Frame Rate | Main Stream: 5MP (2880*1620),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| ROI | Up to 8 areas | |||||
| Video stream | Triple streams | |||||
| OSD | Up to 10 OSDs | |||||
| Privacy Mask | Up to 4 areas per scene | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| EIS | Support | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Defog | Digital Defog | |||||
| Intelligent | ||||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection(based on human body and vehicle detection) | |||||
| Events | ||||||
| Basic Detection | Ultra Motion detection(based on human body and vehicle detection), Motion detection, Audio detection, Tampering alarm | |||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
| Audio | ||||||
| Audio Compression | G.711U, G.711A | |||||
| Audio Bitrate | 64 Kbps,128kbps | |||||
| Two-way Audio | Support | |||||
| Suppression | Support | |||||
| Sampling Rate | 8KHz,16KHz | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256 GB | |||||
| Network Storage | ANR,NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4,IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | |||||
| Security | Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
| Client | EZStation EZLive EZview | |||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
| Interface | ||||||
| Audio I/O | 1/1 | |||||
| Alarm I/O | 1/1 | |||||
| Built-in Mic | Support | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
| Certification | ||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15, Subpart B, ANSI C63.4-2014) | |||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | |||||
| General | ||||||
| Power | DC12V(±25%), PoE(IEEE 802.3af) | |||||
| Power consumption: Max 7W | ||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||
| Dimensions (L x W x H) | 206 × 74 × 74mm (8.1” × 2.9” × 2.9”) | |||||
| Weight | 0.51kg (1.12lb) | |||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
