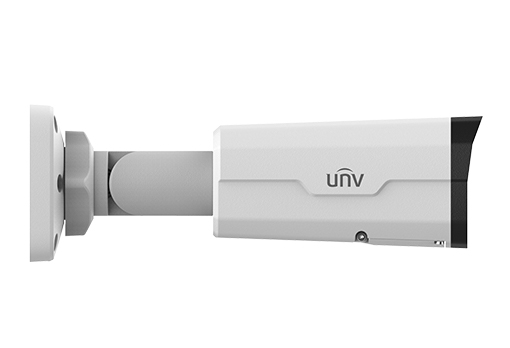

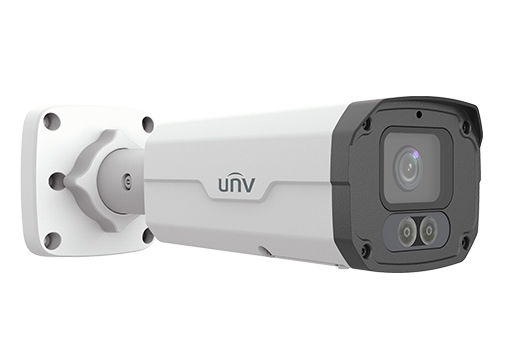

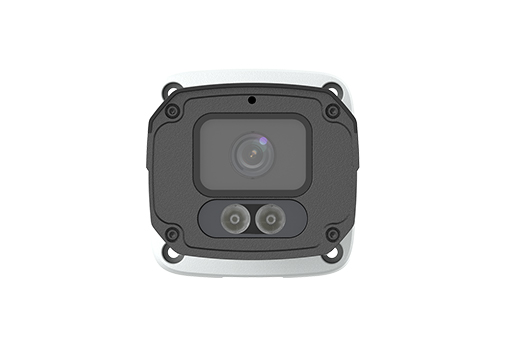

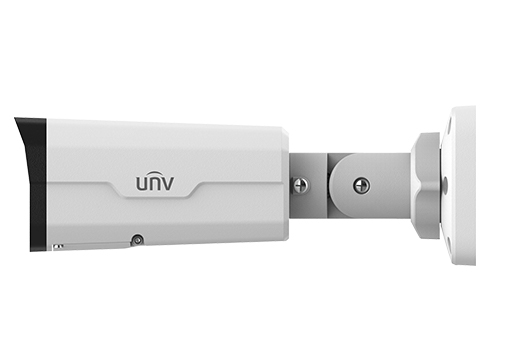

Uniview - IPC2228SE-DF40K-WL-I0 - 8MP White Light Bullet Camera, 4.0mm
Product Overview
Uniview IPC2228SE-DF40K-WL-I0 is an 8MP white light bullet camera with a 1/1.8" progressive scan CMOS sensor and fixed 4.0mm F1.0 lens. It delivers 8MP (3840×2160) at up to 30 fps (AI off) or 25 fps and supports Ultra 265, H.265, H.264, and MJPEG compression. The camera provides ColorHunter technology for 24-hour full-color images, 120 dB true WDR, white light illumination up to 30 meters, and smart intrusion prevention with target classification.
Key Configuration
- • 8MP maximum resolution (3840×2160) at 30/25 fps (AI off); 5.3MP at 30/25 fps; 3.6MP at 30/25 fps
- • 4.0mm fixed lens at F1.0; horizontal FOV: 94.29°; diagonal FOV: 115.97°
- • White light illumination: up to 30 m (98 ft) with 2 LEDs, Auto/Manual control
- • Triple video streams (main, sub, third) with ROI up to 8 areas
- • Video bit rate: 128 Kbps to 16 Mbps; U-code support
Key Features
• Minimum illumination: 0.0005 Lux color (F1.0, AGC ON); ColorHunter technology for 24-hour full-color images
• 120 dB true WDR; digital defog; 2D/3D DNR • Smart intrusion prevention with false alarm filtering: cross line, intrusion, enter area, leave area detection; target classification for human, motor vehicle, non-motor vehicle
• People flow counting and crowd density monitoring
• Audio: 1 input / 1 output with two-way talk support; built-in microphone; G.711 compression
• Alarm: 1 input / 1 output; ONVIF Profiles S, G, T; API and SDK integration; edge storage via microSD up to 256GB
Technical Context
DORI distances at 4.0mm: detect 90.0m, observe 36.0m. Main stream supports up to 8MP at 30 fps; sub stream up to 1080P at 30 fps; third stream up to D1 at 30 fps. OSD supports up to 8 overlays; privacy mask up to 4 areas. Basic detection: motion detection, ultra motion detection, tampering alarm, audio detection. Supports up to 32 users with administrator and common user levels. 9:16 Corridor Mode supported.
Installation Notes
Dimensions (L × W × H): 245 × 86 × 85 mm (9.6" × 3.4" × 3.3"); weight: 0.86 kg (1.89 lb). Metal construction. Operating temperature: -30°C to 60°C (-22°F to 140°F), humidity ≤95% RH non-condensing. Ingress protection: IP67; vandal resistance: IK10. Power: DC 12V ±25% or PoE (IEEE 802.3af); max power consumption 11W. Power interface: Ø5.5mm coaxial plug. Surge protection: 4KV. Reset button supported. 2-axis adjustment: pan 0°–360°, tilt 0°–90°.
| IPC2228SE-DF40K-WL-I0 | ||||
| Camera | ||||
| Sensor | 1/1.8", 8.0 megapixel, progressive scan, CMOS | |||
| Minimum Illumination | Colour: 0.0005 lux (F1.0, AGC ON) | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | ||
| WDR | 120dB | |||
| S/N | >56dB | |||
| Lens | ||||
| Lens | 4.0mm@F1.0 | |||
| Iris | Fixed | |||
| Field of View (H) | 94.29° | |||
| Field of View (V) | 49.73° | |||
| Field of View (D) | 115.97° | |||
| DORI | ||||
| DORI Distance | Lens (mm) | Detect（m） | Observe（m） | |
| 4.0 | 90.0 | 36.0 | ||
| 6.0 | 135.0 | 54.0 | ||
| Illuminator | ||||
| LED Distance | Up to 30m (98ft) | |||
| LEDs Number | 2 | |||
| LED On/Off Control | Auto/Manual | |||
| Video | ||||
| Video Compression | Ultra265, H.265, H.264, MJPEG | |||
| H.264 code profile | Baseline profile, Main profile, High profile | |||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 30fps;5.3MP (3072*1728), Max 30fps; 3.6MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||
| Video Bit Rate | 128 Kbps~16 Mbps | |||
| U-code | Support | |||
| OSD | Up to 8 OSDs | |||
| Privacy Mask | Up to 4 areas | |||
| ROI | Up to 8 areas | |||
| Video Stream | Triple streams | |||
| Image | ||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||
| Digital noise reduction | 2D/3D DNR | |||
| Smart Illumination | Support | |||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||
| Dewarping | N\A | |||
| HLC | Support | |||
| BLC | Support | |||
| Defog | Digital Defog | |||
| Intelligent | ||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | |||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | |||
| Events | ||||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio Detection | |||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||
| Audio | ||||
| Audio Compression | G.711 | |||
| Audio Bitrate | 64 Kbps | |||
| Two-way audio | Support | |||
| Suppression | Support | |||
| Sampling Rate | 8KHZ | |||
| Storage | ||||
| Edge Storage | Micro SD, up to 256GB | |||
| Network Storage | ANR, NAS(NFS) | |||
| Network | ||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH | |||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | |||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||
| Client | EZStation EZView EZLive | |||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||
| Interface | ||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | |||
| Output: impedance 600Ω; amplitude 2V [p-p] | ||||
| Alarm I/O | 1/1 | |||
| RS485 | N/A | |||
| Built-in Mic | Support | |||
| Built-in Speaker | N/A | |||
| WIFI | N/A | |||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||
| Video Output | N/A | |||
| Certifications | ||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | |||
| General | ||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||
| Power consumption: Max 11W | ||||
| Power Interface | Ø 5.5mm coaxial power plug | |||
| Dimensions (L × W × H) | 245× 86 × 85mm (9.6” × 3.4” × 3.3”) | |||
| Weight | 0.86kg (1.89lb) | |||
| Material | Metal | |||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||
| surge protection | 4KV | |||
| Reset Button | Support | |||
