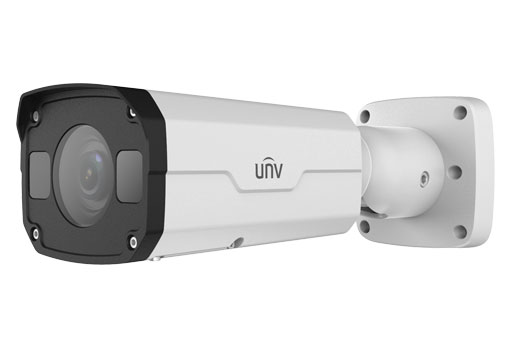

Uniview - IPC2322EBR5-DUPZ-C - UNV 2MP Bullet IP Camera(WDR,Star level,Lowcost Full Cable,PoE,Electrical Interfaces,2.7-13.5mm,50m IR,SD Slot,Bracket)
Uniview - IPC2322EBR5-DUPZ-C - UNV 2MP Bullet IP Camera(WDR,Star level,Lowcost Full Cable,PoE,Electrical Interfaces,2.7-13.5mm,50m IR,SD Slot,Bracket)
Uniview - IPC2322EBR5-DUPZ-C - UNV 2MP Bullet IP Camera(WDR,Star level,Lowcost Full Cable,PoE,Electrical Interfaces,2.7-13.5mm,50m IR,SD Slot,Bracket)

Uniview - IPC2322EBR5-DUPZ-C - UNV 2MP Bullet IP Camera(WDR,Star level,Lowcost Full Cable,PoE,Electrical Interfaces,2.7-13.5mm,50m IR,SD Slot,Bracket)

Part number:
IPC2322EBR5-DUPZ-C
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications

UNV 2MP Bullet IP Camera(WDR,Star level,Lowcost Full Cable,PoE,Electrical Interfaces,2.7-13.5mm,50m IR,SD Slot,Bracket)



Features:

  • 1/2.8",progressive scan,CMOS
  • 1920×1080 resolution, 30fps
  • 2.7~13.5mm Optical Zoom & Auto Focus
  • Up to 120 dB Optical WDR(Wide Dynamic Range)
  • Smart IR, up to 50m IR distance
  • Ultra 265,H.265,2D/3D DNR, ROI,Corridor Mode,ONVIF
  • DC12V,PoE.Wide voltage range of ±25%
  • IP67
Brand ModalIPC2322EBR5-DUPZ-C
Camera
Sensor1/2.8", progressive scan, 2.0megapixel, CMOS
Lens2.7~13.5mm, AF automatic focusing and motorized zoom lens
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, shutter time: 1~1/100000 s
Min.IlluminationColour: 0.0005 Lux (F1.2, AGC ON)
0 Lux with IR on
S/N>52dB
Wide Dynamic RangeDigital Defog
IRUp to 50m (164 ft) IR range
Video
Video CompressionUltra 265,H.265, H.264,MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream:2MP (1920×1080): Max. 30 fps;
Sub Stream: 2MP (1920×1080): Max. 30 fps;
Third Stream:D1 (720×576): Max. 30 fps
ROIUp to 8 areas
OSDUp to 8 OSDs
Smart
Behavior DetectionIntrusion, cross line, motion detection
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible IntegrationONVIF(Profile S, Profile G), API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
General
Power12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 10W
Dimensions (L x W x H)146.3 ×86 ×71.7 mm(57.6” × 3.4” × 2.8”)
Weight0.58kg (1.28lb)
Working Environment-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress ProtectionIP67
