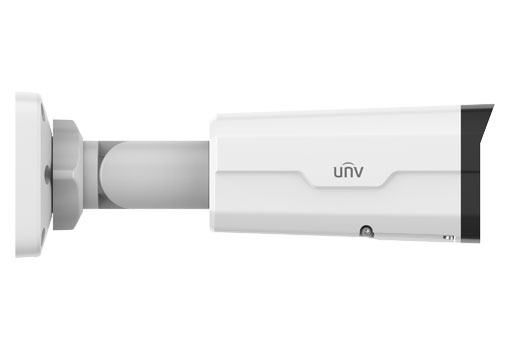

Uniview - IPC2324SS-DZK - 4MP VF Network IR Bullet Camera
Uniview - IPC2324SS-DZK - 4MP VF Network IR Bullet Camera
Part number:
IPC2324SS-DZK
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

UNV 4MP Motorized VF Network IR Bullet Camera (LightHunter, 2.8-12mm, WDR, PoE, RJ45, SD Slot, Full cable, Bracket)



Features:

  • High quality image with 4MP, 1/3"CMOS sensor
  • 4MP (2688*1520)@30/ 25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Alarm:1 in/1 out, Audio: 1 in/1 out
  • Smart IR, up to 50m (164ft) IR distance
  • Supports 256 G Micro SD card
  • IK10 vandal resistant
  • IP67 protection
  • Support PoE power supply
Camera
Sensor1/3", 4.0 megapixel, progressive scan, CMOS
Lens2.7~ 13.5mm, AF automatic focusing and motorized zoom lens
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.760.824.312.26.1
13.5303.8121.560.830.4
Angle of View (H)28.6°~100.1°
Angle of View (V)15.9°~52.2°
Angle of View (O)33.7°~130.1°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 90°Rotate: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.002Lux (F1.35, AGC ON)
0Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
S/N>56 dB
IR RangeUp to 50m (164ft) IR range
wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile /td>
Frame RateMain Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080),Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate128 Kbps~16 Mbps
9:16 Corridor ModeSupport
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
Audio
Audio CompressionG.711
Two-way audioSupport
SuppressionSupport
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR, NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, NAS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/OInput: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O1/1
Network1 RJ45 10M/100M Base-TX Ethernet
Certifications
CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.5W
Dimensions (L × W × H)245.4 × 85.4 × 86.4mm (9.7” × 3.4” × 3.4”)
Net Weight0.93kg (2.0lb)
MaterialMetal
Working Environment-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
surge protection6KV
Ingress ProtectionIP67
Vandal ResistantIK10
