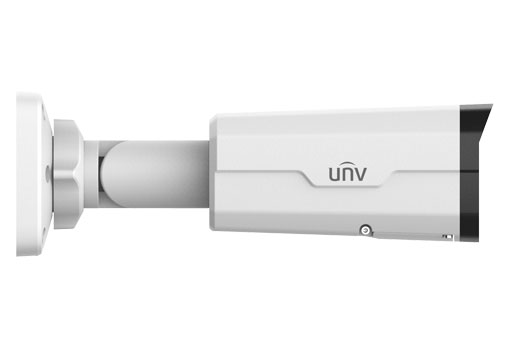

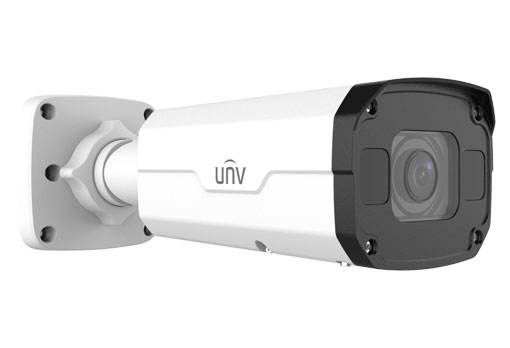

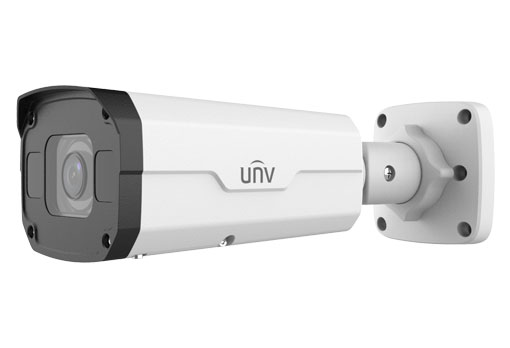

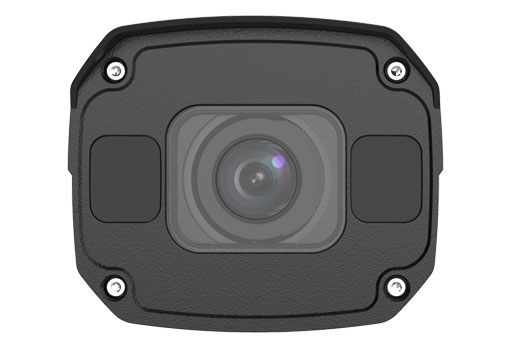

Uniview - IPC2325SB-DZK-I0 - 5MP LightHunter Bullet IP Camera
Product Overview
Uniview 5MP LightHunter Bullet IP Camera features a 1/2.7" progressive scan CMOS sensor with a 2.7–13.5mm motorized zoom lens with auto-focus. It delivers 5MP (2880×1620) at up to 25 fps and supports Ultra 265, H.265, H.264, and MJPEG compression. The camera provides 120 dB true WDR, Smart IR up to 50 meters, LightHunter technology for low-light performance, and smart intrusion prevention with target classification.
Key Configuration
- 5MP maximum resolution (2880×1620) at 25 fps; also supports 4MP, 3MP, 1080P
- 2.7–13.5mm motorized zoom lens with auto-focus; horizontal FOV: 106.25° to 30.42°
- IR range: up to 50 m (164 ft) at 850 nm wavelength
- Triple video streams (main, sub, third) with ROI up to 8 areas
- Video bit rate: 128 Kbps to 16 Mbps
Key Features
• Minimum illumination: 0.002 Lux color (F1.2, AGC ON), 0 Lux with IR; day/night ICR filter
• 120 dB true WDR; LightHunter technology; digital defog; 2D/3D DNR
• Smart intrusion prevention with false alarm filtering: cross line, intrusion, enter area, leave area detection; target classification for human, motor vehicle, non-motor vehicle
• People flow counting and crowd density monitoring
• Audio: 1 input / 1 output; G.711 compression with suppression; alarm: 1 input / 1 output
• ONVIF Profiles S, G, T; API integration; edge storage via microSD up to 256GB; ANR network storage
Technical Context
DORI distances vary with zoom: at 2.7mm – detect 60.8m, observe 24.3m, recognize 12.2m, identify 6.1m; at 13.5mm – detect 303.8m, observe 121.5m, recognize 60.8m, identify 30.4m. Main stream supports up to 5MP at 25 fps; sub and third streams support up to 720P at 30 fps. OSD supports up to 8 overlays; privacy mask up to 4 areas; motion detection up to 4 areas. Supports 9:16 Corridor Mode.
Installation Notes
Dimensions (L × W × H): 245 × 86 × 72 mm (9.6" × 3.4" × 2.8"); net weight: 0.92 kg (2.0 lb). Metal construction. Operating temperature: -30°C to 60°C (-22°F to 140°F), humidity ≤95% RH non-condensing. Ingress protection: IP67; vandal resistance: IK10. Power: DC 12V ±25% or PoE (IEEE 802.3af); max power consumption 8.0W. Surge protection: 6KV. No reset button. 3-axis adjustment: pan 0°–360°, tilt 0°–90°, rotate 0°–360°.
| Camera | |||||||
| Sensor | 1/2.7",5.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.7 | 60.8 | 24.3 | 12.2 | 6.1 | |||
| 13.5 | 303.8 | 121.5 | 60.8 | 30.4 | |||
| Angle of View (H) | 106.25°~ 30.42° | ||||||
| Angle of View (V) | 56.36°~ 17.22° | ||||||
| Angle of View (O) | 110.34°~34.18° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Minimum Illumination | Colour: 0.002Lux (F1.2, AGC ON) 0Lux with IR on | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >56 dB | ||||||
| IR Range | Up to 50m (164ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||
| Frame Rate | Main Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||
| Smart IR | Supported | ||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| Dewarping | N/A | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256GB | ||||||
| Network Storage | ANR | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
| Client | EZStation EZView EZLive | ||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||
| Interface | |||||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
| Alarm I/O | 1/1 | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
| Certifications | |||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 8.0 W | |||||||
| Dimensions (L × W × H) | 245 × 86 × 72mm (9.6” × 3.4” × 2.8”) | ||||||
| Net Weight | 0.92kg (2.0lb) | ||||||
| Material | Metal | ||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge Protection | 6KV | ||||||
| Ingress Protection | IP67 | ||||||
| Vandal Resistant | IK10 | ||||||
| Reset Button | N/A | ||||||
