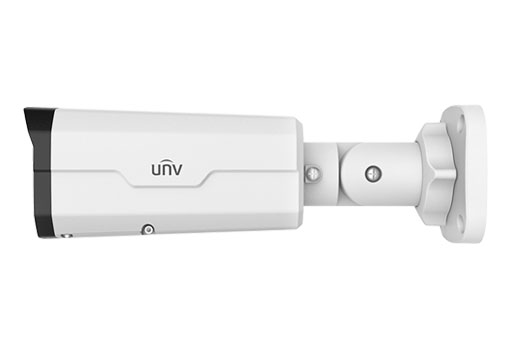

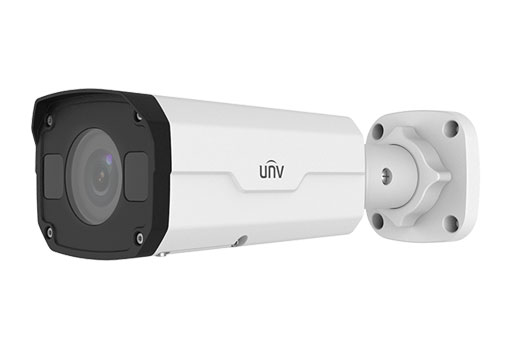

Uniview - IPC2325SBR5-DPZ-F - 5MP Network IR Bullet Camera
Part number:
IPC2325SBR5-DPZ-F
Price:
UNV 5MP Bullet IP Camera(WDR,Star Level,Lowcost Full Cable,PoE,Electrical Interfaces,Motorized VF 2.7-13.5mm,50m IR,SD Slot,Bracket)
Features:
Optics
- Day/night functionality
- Smart IR, up to 50m (164ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- Customized OSD
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| Camera | |||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 63.1 | 25.2 | 12.6 | 6.3 | |||
| 12 | 270.3 | 108.1 | 54.1 | 27.0 | |||
| Angle of View (H) | 96.23°~ 31.69° | ||||||
| Angle of View (V) | 69.98°~ 24.28° | ||||||
| Angle of View (O) | 125.10°~37.39° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >56 dB | ||||||
| IR Range | Up to 50m (164ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| · H.264 code profile | · Baseline profile, Main Profile | ||||||
| Frame Rate | Main Stream: 5MP (2592*1944), Max 20fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream:4CIF (704*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| OSD | Up to 4 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 2 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Vertical/Horizontal/180° | ||||||
| Dewarping | NA | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256GB | ||||||
| Network Storage | ANR | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
| Client | EZStation EZView EZLive | ||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||
| Interface | |||||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
| Alarm I/O | 1/1 | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
| Certifications | |||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 9.5W | |||||||
| Dimensions (L × W × H) | 240.3 × 86.4 × 75.6mm (9.5” × 3.4” × 3.0”) | ||||||
| Net Weight | 1.0kg (2.2lb) | ||||||
| Material | Metal | ||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge Protection | 6KV | ||||||
| Ingress Protection | IP67 | ||||||
Name
Description
Size
Downloads
File
Datasheet
0.7mb
File
Quick Start Guide
1.4mb
