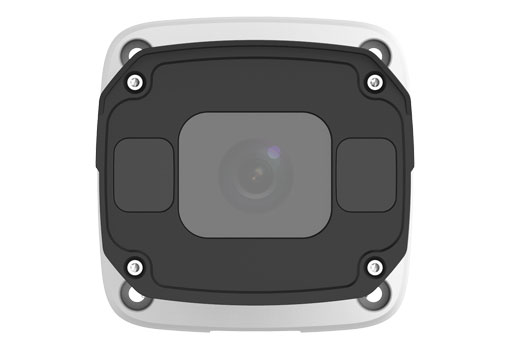

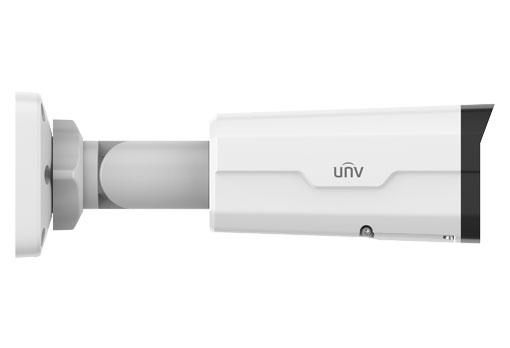

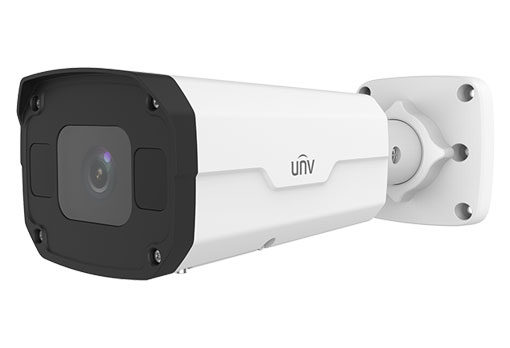

Uniview - IPC2325SS-DZK-I0 - 5MP LightHunter Intelligent Bullet Network Camera
Part number:
IPC2325SS-DZK-I0
Price:
5MP LightHunter Intelligent Bullet Network Camera
Features:
Optics
- 1/2.7'', Powered by lighthunter
- SmartIR, up to 50m (164 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
Smart
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
Compression
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 2592*1944@20fps in the main stream
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- DC12V or PoE power supply
- Wide voltage range of ±25% in DC
- Micro SD, up to 256 GB
- Alarm 1 in and 1 out, Audio 1 in and 1 out
- IP67 ingress protection
- IK10 vandal resistant
| IPC2325SS-DZK-I0 | ||||
| Camera | ||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||
| Lens | 2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens | |||
| Iris | Auto aperture | |||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) |
| 2.7 | 70.9(232.5ft) | 28.4(93.0ft) | 14.2(46.5ft) | |
| 13.5 | 247.5(812.0ft) | 99.0(324.8ft) | 49.5(162.4ft) | |
| Field of View (H) | 26.8°~93.1° | |||
| Field of View (V) | 20.7°~66.0° | |||
| Field of View (D) | 31.6°~121.0° | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||
| Min. Illumination | Color:0.001lux (F1.2, AGC ON) 0 lux with IR | |||
| WDR | 120dB | |||
| Day/Night | IR-cut filter with auto switch (ICR) | |||
| S/N | >56dB | |||
| IR Range | Up to 50m (164 ft) IR range | |||
| Wavelength | 850nm | |||
| IR On/Off Control | Auto/Manual | |||
| Defog | Digital Defog | |||
| Video | ||||
| Video Compression | Ultra 265,H.265,H.264,MJPEG | |||
| Frame Rate | Main Stream: 5MP(2592*1944),Max 20fps; 4MP(2560*1440),Max 30fps; 3MP(2304*1296),Max 30fps; 2MP(1920*1080),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |||
| Video Bit Rate | 128 Kbps~16 Mbps | |||
| ROI | Supported | |||
| Video stream | Triple streams | |||
| OSD | Up to 8 OSDs | |||
| Privacy Mask | Up to 8 areas(8 blacks/8 mosaics) | |||
| Image | ||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||
| Digital noise reduction | 2D/3D DNR | |||
| Smart IR | Support | |||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||
| HLC | Support | |||
| BLC | Support | |||
| Intelligent | ||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | |||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | |||
| Events | ||||
| Basic Detection | Motion detection, Audio detection, Tampering alarm | |||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||
| Exception Detection And Statistics | Object Removed, Object Left Behind | |||
| Audio | ||||
| Audio Compression | G.711U,G.711A | |||
| Two way audio | Supported | |||
| Sampling Rate | 8KHZ | |||
| Storage | ||||
| Edge Storage | Micro SD, up to 256 GB | |||
| Network Storage | ANR,NAS(NFS) | |||
| Network | ||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | |||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||
| Client | EZStation Ezview EZLive | |||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||
| Interface | ||||
| Audio I/O | Audio cable | |||
| 1 Input: impedance 35kΩ; amplitude 2V [pp] | ||||
| 1 output: impedance 600Ω; amplitude 2V [pp] | ||||
| Alarm I/O | 1/1 | |||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | |||
| Certifications | ||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | |||
| General | ||||
Power | DC12V(±25%), PoE(IEEE802.3af) | |||
| Power consumption: Max 10W | ||||
| Support overcurrent protection and input short circuit protection | ||||
| Dimensions (Ø x H) | Φ245.0x86.0x72.0mm(Φ9.6''x3.4''x2.8'') | |||
| Net Weight | 0.98kg(2.16lb) | |||
| Material | Metal | |||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||
| Surge protection | 6KV | |||
