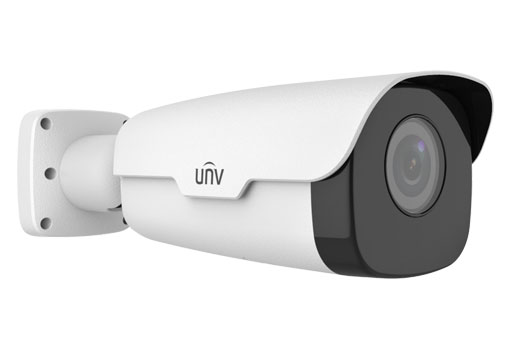

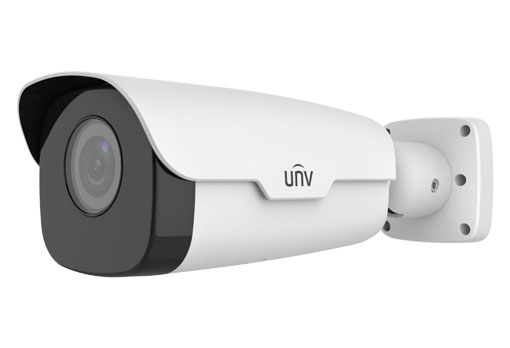

IPC262ER9-X10DU - EOL
UNV 2MP 10X Network IR Bullet(10X,Starlight,WDR,100m IR,AutoFocus,SD Slot,PoE,Audio,Alarm)
Features
Optics
Starlight illumination
Up to 120dB WDR (Wide Dynamic Range)
Smart IR, up to 100m (328ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
Day/night functionality
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
ROI (Region of Interest)
9:16 corridor mode
Customized OSD
Network
ONVIF Conformance
Structure
Support PoE power supply
Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
Wide voltage range of ±25%
IP67
3-Axis
| IPC262ER9- X10DU | |||||||
| Camera | |||||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 4.7 ~ 47mm; P-Iris, AF automatic focusing and motorized zoom lens | ||||||
| Optical Zoom | 10 | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 4.7 | 72.9 | 29.2 | 14.6 | 7.3 | |||
| 47 | 729.3 | 291.7 | 145.9 | 72.9 | |||
| Angle of View (H) | 65° ~ 9° | ||||||
| Angle of View (V) | 36.9° ~ 3.8° | ||||||
| Angle of View (O) | 80° ~ 10.6° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
Minimum Illumination | Colour: 0.001Lux (F1.6, AGC ON) 0Lux with IR | ||||||
| Iris | Auto/Manual, F1.6 ~ F3.0, DC-Iris | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >52dB | ||||||
| IR Range | Smart-IR, up to 100m (328ft) IR range | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||||
| 9:16 Corridor Mode | Supported | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Smart | |||||||
General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, Up to 256GB |
| Network Storage | ANR |
| Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Interface | |
Audio I/O | Audio cable |
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | |
| 1 Output: impedance 600Ω; amplitude 2V [p-p] | |
| Alarm I/O | 2/1 |
| Serial Port | 1 RS485 |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] |
| General | |
Power | DC 12V±25%, AC 24V±25% ,PoE (IEEE 802.3at) |
| Power consumption: 13.7W | |
| Dimensions (L × W × H) | 305.5 × 104.1 × 97.3mm (12.0” × 4.1” × 3.8”) |
| Weight | 1.65kg (3.6lb) |
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Ingress Protection | IP67 |
| Reset Button | Supported |
