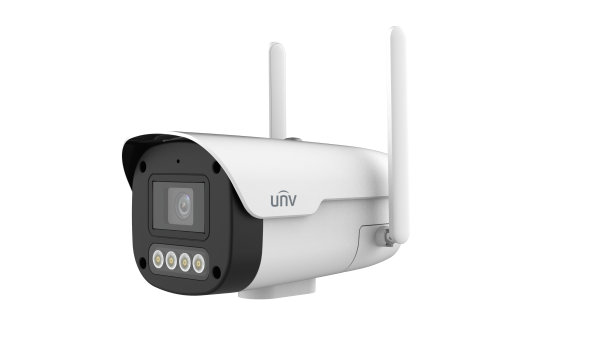

UNV - IPC2A14LP-ADF40KC-4G-US - 4MP ColorHunter 4G Fixed Dual-light Bullet Network Camera
Product Overview
Uniview IPC2A14LP-ADF40KC-4G-E is a 4MP ColorHunter 4G fixed dual-light bullet network camera with a 1/3.0" CMOS sensor and 4.0mm fixed lens. It delivers 4MP (2560×1440) at up to 30 fps and supports Ultra 265, H.265, H.264, and MJPEG compression. The camera provides 120 dB WDR, dual-light illumination (IR up to 50m, warm light up to 30m), 4G network access, built-in microphone and speaker, and smart intrusion prevention with target classification.
Key Configuration
- • 4MP maximum resolution (2560×1440) at up to 30 fps; also supports 3MP and 1080P at up to 30 fps
- • 4.0mm fixed lens at F1.6; horizontal FOV: 79.0°, diagonal FOV: 85.1°
- • Dual light: IR range up to 50 m (164 ft); warm light range up to 30 m (98.4 ft); wavelength 850 nm
- • Dual video streams (main and sub) with ROI support; video bit rate: 128 Kbps to 2048 Kbps; U-code support
- • Edge storage: microSD up to 512 GB
Key Features
• Minimum illumination: 0.003 Lux color (F1.6, AGC ON), 0 Lux with light; day/night ICR filter
• 120 dB WDR; ColorHunter technology; digital defog; 2D/3D DNR
• 4G network access: LTE-TDD (Band 38/40/41), LTE-FDD (Band 1/3/5/7/8/20/28), WCDMA (Band 1/5/8); 4G network standards: LTE-TDD, LTE-FDD, GSM, EGSM, DCS, PCS; Nano-SIM card type
• Smart intrusion prevention with false alarm filtering: cross line, intrusion, enter area, leave area detection; target classification for human, non-motor vehicle, vehicle
• Audio: 1 input / 1 output with two-way audio support; built-in microphone and speaker; G.711U and G.711A compression
• Alarm: 1 input / 1 output; ONVIF Profiles S, G, T; API and SDK integration; ANR network storage
Technical Context
DORI distances at 4.0mm: detect 63.0m, observe 25.2m, recognize 12.6m, identify 6.3m. Main stream supports up to 4MP at 30 fps; sub stream supports up to 720P at 30 fps. OSD up to 8 overlays; privacy mask up to 4 areas. Basic detection: motion detection, ultra motion detection, tampering alarm, audio detection. Supports up to 32 users with three user levels: administrator, common user, and operator. Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, QoS, SMTP, 802.1x, SSL/TLS, SNMP. Web client in 13 languages.
Installation Notes
Dimensions (L × W × H): 169 × 113 × 96 mm (6.7" × 4.4" × 3.8"); weight: 0.47 kg (1.04 lb). Material: graphene + metal. Operating temperature: -30°C to 60°C (-22°F to 140°F), humidity ≤95% RH non-condensing. Ingress protection: IP67. Power: DC 12V ±25% (no PoE specified); max power consumption 6.8W. Power interface: Ø5.5mm coaxial plug. Surge protection: 4KV. Reset button supported.
| Camera | |
|---|---|
| Max Resolution | 4 MP |
| Sensor | 1/3.0" CMOS |
| Min. Illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| S/N | >52 dB |
| WDR | 120 dB |
| Lens | |
| Focal Length | 4.0 mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | 79.0° |
| Field of View (V) | 42.3° |
| Field of View (D) | 85.1° |
| DORI | |
| DORI Distance (Lens) | 4 mm |
| DORI Distance (Detect) | 63.0 m (206.7 ft.) |
| DORI Distance (Observe) | 25.2 m (82.7 ft.) |
| DORI Distance (Recognize) | 12.6 m (41.3 ft.) |
| DORI Distance (Identify) | 6.3 m (20.7 ft.) |
| Illuminator | |
| Supplemental Light | Dual light |
| Illumination Distance (Warm Light) | 30 m (98.4 ft) |
| Illumination Distance (IR) | 50 m (164.0 ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps |
| Video Bit Rate | 128 Kbps to 2048 Kbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Dual streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Intelligent | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Events | |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| General Function | |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Network | |
| 4G Network Frequency | LTE-TDD: Band 38/40/41 LTE-FDD: Band 1/3/5/7/8/20/28 WCDMA: Band 1/5/8 |
| 4G Network Standard | LTE-TDD, LTE-FDD, GSM, EGSM, DCS, PCS |
| 4G Card Type | Nano-SIM |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, QoS, SMTP, 802.1x, SSL/TLS, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, APP |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR |
| Interface | |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| Protection | IP67 (IEC 60529) |
| General | |
| Power | DC 12 V±25% |
| Power Consumption | Max. 6.8 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 169 mm × 113 mm × 96 mm (6.7" × 4.4" × 3.8") (L × W × H) |
| Weight | 0.47 kg (1.04 lb) |
| Material | Graphene + Metal |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
