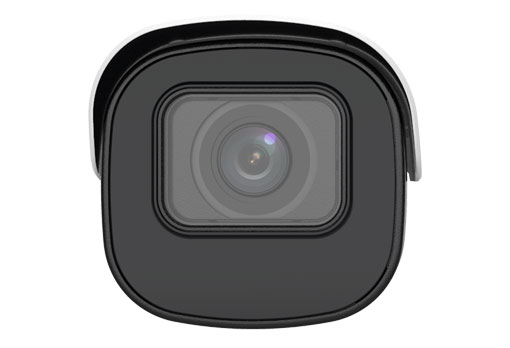

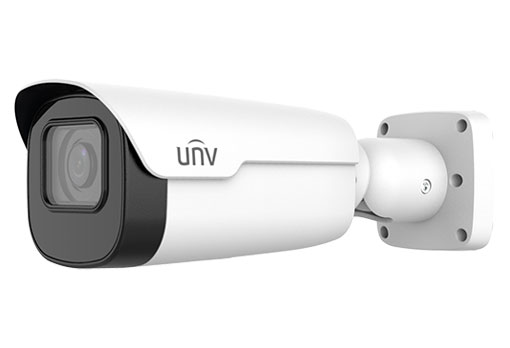

Uniview - IPC2A22SA-DZK - 2MP LightHunter Bullet Network Camera
Part number:
IPC2A22SA-DZK
Price:
UNV 2MP Motorized VF Network IR Bullet Camera (Super LightHunter, Built in AI algorithm, 2.8-12mm, WDR, PoE, RJ45, SD Slot, Full cable, Bracket)
Features:
- 1/2.7",progressive scan,CMOS
- Up to 1920×1080 resolution,30fps
- 2.7~13.5mm Motor drive
- LightHunter
- 120 dB WDR(Wide Dynamic Range)
- Smart IR, up to 50m IR distance
- Ultra 265,H.265, Corridor Mode, 2D/3D DNR, ROI, ONVIF
- DC12V,PoE.Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
Optics:
- Day/night functionality
- Smart IR, up to 50 m (164ft) IR distance
- Up to 120dB Optical WDR (Wide Dynamic Range)
- LightHunter
- 2D/3D DNR (Digital Noise Reduction)
Compression:
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
Network:
- ONVIF Conformance
Structure:
- Support PoE power supply
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
| IPC2A22SA-DZK | ||||||
| Camera | ||||||
| Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS | |||||
| Lens | 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.7 | 40.5 | 16.2 | 8.1 | 4.1 | ||
| 13.5 | 202.5 | 81 | 40.5 | 20.3 | ||
| Angle of View (H) | 114° ~ 31.8° | |||||
| Angle of View (O) | 58.9° ~ 17.6° | |||||
| Adjustment angle | 148.2° ~ 37.5° | |||||
| Adjustment Range | Pan: 0°~360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Minimum Illumination | Colour:0.001Lux (F1.35, AGC ON) 0Lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| S/N | >52dB | |||||
| IR Range | Up to50m (164ft) IR range | |||||
| wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Defog | Digital Defog | |||||
| WDR | 120dB | |||||
| Video | ||||||
| Video Compression | Ultra 265 ,H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: D1 (720*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| 9:16 Corridor Mode | Supported | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | Up to 8 areas | |||||
| ROI | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| Dewarping | Support | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Audio | ||||||
| Audio Compression | G.711 | |||||
| Two-way audio | Supported | |||||
| Suppression | Supported | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256GB | |||||
| Network Storage | ANR, NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||
| Client | EZStation EZView EZLive | |||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||
| Interface | ||||||
| Audio I/O | Audio cable | |||||
| Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | ||||||
| Alarm I/O | 1/1 | |||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||
| Certifications | ||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||
| General | ||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||
| Power consumption: Max 8.5W | ||||||
| Dimensions (Ø x H) | 274.4×98.1×89.7mm (10.8”×3.9”×3.5”) | |||||
| Net Weight | 1.14kg (2.51lb) | |||||
| Material | metal | |||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| surge protection | 6KV | |||||
| Ingress Protection | IP67 | |||||
| Vandal Resistant | IK10 | |||||
| Reset Button | Supported | |||||
