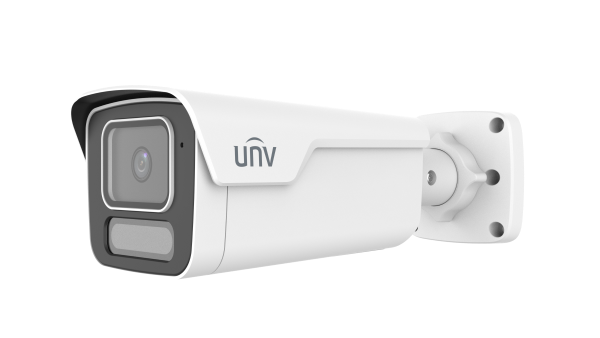

Uniview - IPC2B14SE-ADF28K-WP-I1N - 4MP WDR OwlView Plus Bullet Network Camera
• High quality image with 4 MP, 1/1.8" CMOS sensor
• 4 MP (2688 × 1520)@30/25 (default) fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduces false alarm caused by leaves, birds and lights, accurately focusing on human, motor vehicle and non-motor vehicle
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1, built-in mic
• White light, up to 40 m (131.2 ft) warm light distance
• MicroSD, up to 512 GB
• Supports NEMA 4X, IK10 vandal resistant and IP67 protection
| Camera | |
| Max Resolution | 4 MP |
| Sensor | 1/1.8" CMOS |
| Min. Illumination (Colour) | 0.0003 Lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| S/N | >56 dB |
| WDR | 130 dB |
| Lens | |
| Focal Length | 2.8 mm |
| Iris Type / Iris | Fixed / F1.0 |
| Field of View (H/V/D) | H: 110.4°, V: 60.5°, D: 115.2° |
| Lens Type | Fixed |
| DORI Distance | |
| Detect | 43.4 m (142.5 ft) |
| Observe | 17.4 m (57.0 ft) |
| Recognize | 8.7 m (28.5 ft) |
| Identify | 4.3 m (14.3 ft) |
| Illuminator | |
| Supplemental Light | Warm light (No IR specified) |
| Illumination Distance (Warm Light) | 40 m (131.2 ft) |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate (Main Stream) | 4 MP (2688*1520), Max 30fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Video Stream | Triple Streams |
| Image | |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR / ASM | Support / Support (Auto Scene Match) |
| HLC / BLC / Defog | Support (HLC, BLC, Digital Defog) |
| Intelligent & Events | |
| Smart Intrusion Prevention | Cross line, intrusion, enter/leave area detection (with human/vehicle filtering) |
| People Counting / Attribute Collection | Support / SIP with color retrieval |
| Basic Detection | Motion Detection, Ultra Motion Detection, Tampering, Audio, Object Removed/Left Behind |
| Audio & Interface | |
| Audio Features | Two-way Audio Support, Built-in Mic Support (No Speaker specified) |
| Audio I/O | 1 Input, 1 Output |
| Alarm I/O | 1 Input / 1 Output |
| Storage & Network | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Interface | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Compatible Integration | ONVIF (Profile S, G, T, M), API, SDK |
| General & Environment | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 4.5W |
| Dimensions (L x W x H) | 265.2 × 95.2 × 82.9mm (10.4" × 3.7" × 3.3") |
| Protection Rating | IP67, IK10 |
| Working Environment | -40 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
This camera uses a 4MP 1/1.8" CMOS sensor. It supports a main video stream of 2688 x 1520 at 30 frames per second, and uses Ultra 265, H.265, H.264, and MJPEG compression. The model features a fixed 2.8 mm F1.0 lens, which provides a horizontal field of view of 110.4°. For low-light environments, it is equipped with a warm light illuminator with a range of up to 40 meters.
The camera incorporates 130 dB True Wide Dynamic Range, 2D/3D Digital Noise Reduction, and ColorHunter with Wise-ISP technology to enhance imaging capabilities around the clock. It features a built-in microphone, as well as external audio and alarm interfaces. The housing is designed for use in harsh environments and offers IP67 protection against dust and water, IK10 protection against vandalism, and NEMA 4X protection against corrosion. It operates within a temperature range of -40°C to 60°C. Power can be supplied via DC 12V or PoE (IEEE 802.3af), with a maximum power consumption of 4.5 watts.
