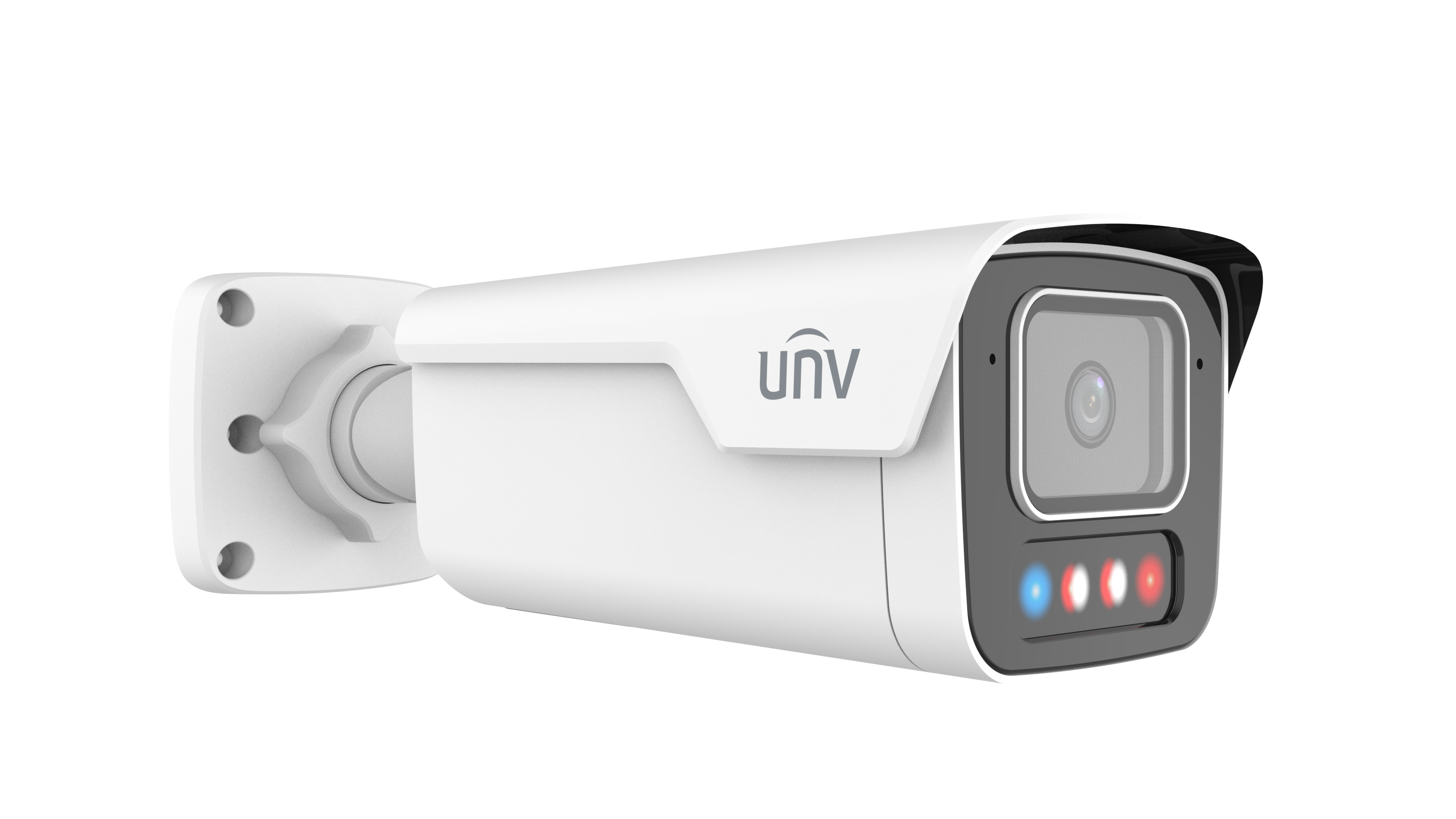

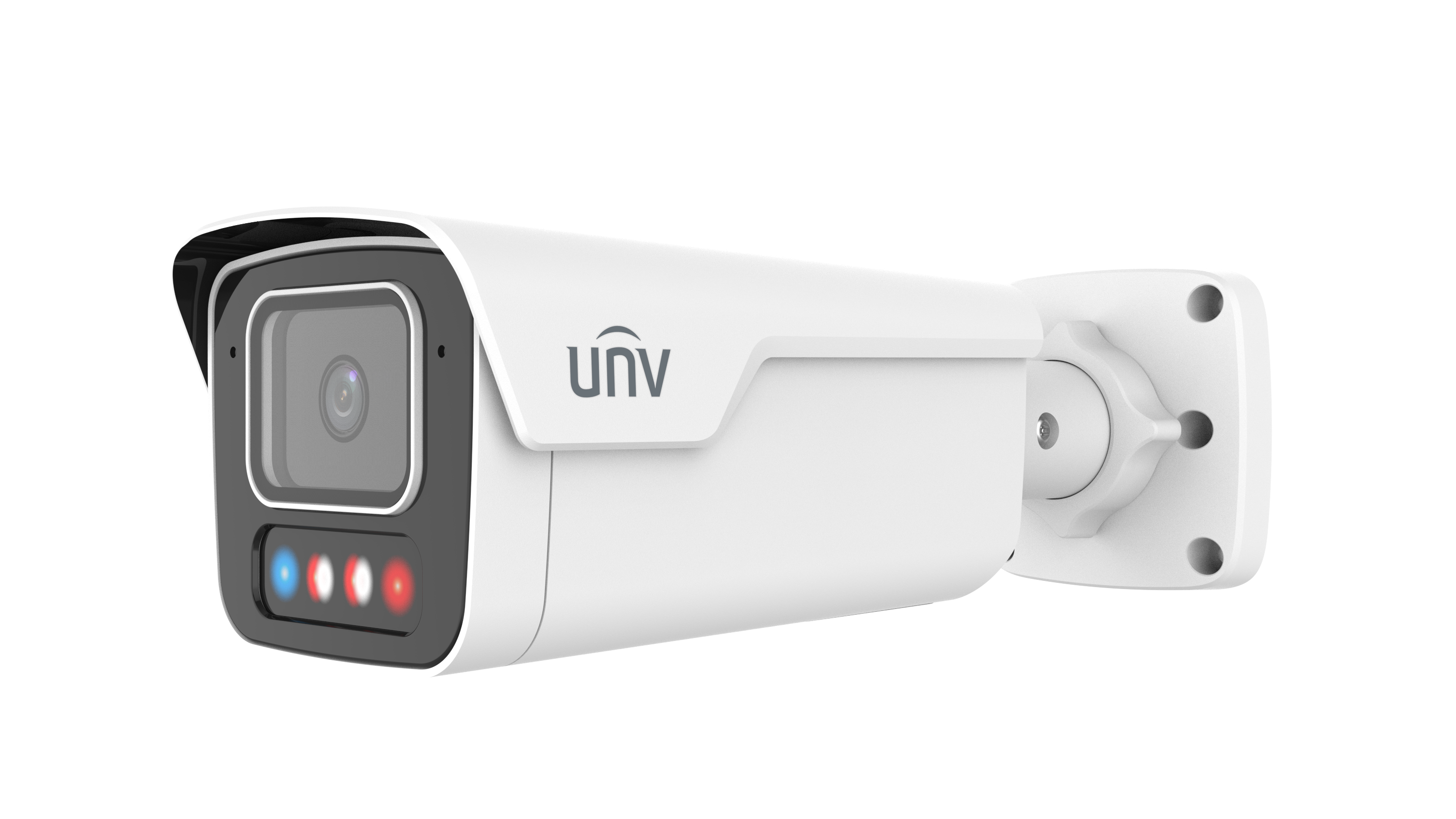

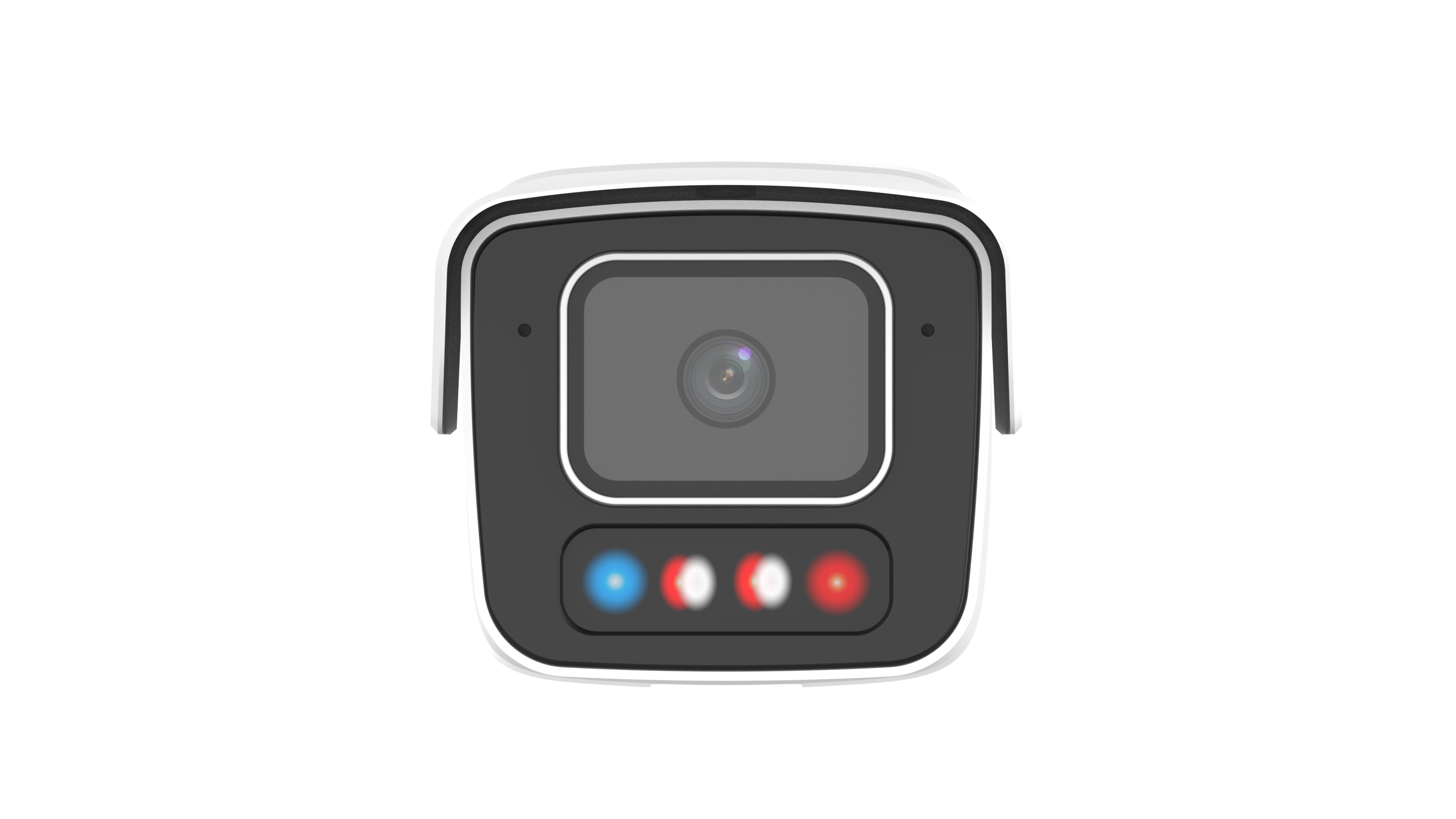

Uniview - IPC2B14SE-ADF28KMC-WP-I1N - 4MP Dual-light Bullet Warning Network Camera
• High quality image with 4 MP, 1/1.8" CMOS sensor
• Features an F1.0 large-aperture lens
• 4 MP (2688 × 1520)@30/25 (default) fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1
• Built-in dual-mic and speaker
• Smart IR, up to 40 m (131.2 ft) IR distance
• White light, up to 40 m (131.2 ft) warm light distance
• MicroSD, up to 512 GB
• IK10 vandal resistant
• Supports NEMA 4X and IP67 protection
| Camera | |
| Max Resolution | 4 MP |
| Sensor | 1/1.8" CMOS |
| Min. Illumination (Color) | 0.0003 Lux (F1.0, AGC ON) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | > 56 dB |
| WDR | 130 dB |
| Lens | |
| Focal Length | 2.8 mm |
| Iris Type / Iris | Fixed / F1.0 |
| Field of View (H/V/D) | H: 111.0°, V: 61.4°, D: 133.0° |
| Lens Type | Fixed |
| DORI Distance | |
| Detect | 43.4 m (142.4 ft.) |
| Observe | 17.4 m (57.1 ft.) |
| Recognize | 8.7 m (28.5 ft.) |
| Identify | 4.3 m (14.1 ft.) |
| Illuminator | |
| Supplemental Light | Dual light (IR and Warm Light) |
| Illumination Distance (IR/Warm) | 40 m (131.2 ft) |
| Wavelength | 850 nm |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate (Main Stream) | 4 MP (2688 × 1520), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Video Stream | Triple streams |
| Image | |
| Min. Illumination Feature | 0.0003 Lux (F1.0) for superior low-light performance |
| Digital Noise Reduction | 2D/3D DNR |
| Smart Illumination / ASM | Support / Support (Auto Scene Match) |
| HLC / BLC / Defog | Support (HLC, BLC, Digital defog) |
| Intelligent & Events | |
| Smart Intrusion Prevention | Cross line, intrusion, enter/leave area detection (with human/vehicle filtering) |
| People Counting / Attribute Collection | Support / SIP with color retrieval |
| Basic Detection | Motion, Tampering, Audio, Object removed, Object Left Behind |
| Audio & Interface | |
| Audio Features | Two-way Audio Support, Built-in Dual-Mic & Speaker Support |
| Audio I/O | 1 Input, 1 Output |
| Alarm I/O | 1 Input / 1 Output |
| Storage & Network | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Interface | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Compatible Integration | ONVIF (Profile S, G, T, M), API, SDK |
| General & Environment | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 5.0 W |
| Dimensions (L × W × H) | 265.2 mm × 95.2 mm × 82.9 mm (10.4" × 3.7" × 3.3") |
| Protection Rating | IP67, IK10, NEMA 4X |
| Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉) |
This camera features a 4MP resolution from its large 1/1.8" CMOS sensor. The key optical component is a fixed 2.8 mm focal length lens with an extremely large F1.0 aperture, providing a wide 111.0° horizontal field of view. It supports a primary video stream of 2688 x 1520 at 30 fps using Ultra 265, H.265, H.264, and MJPEG compression. For low-light performance, it is equipped with a dual-light system that provides both infrared (IR) and white/warm light up to 40 meters.
The ColorHunter handles core image processing with Wise-ISP technology, 130 dB true WDR, and 2D/3D DNR. Built-in dual microphones and a speaker enable two-way audio, and the device also features physical alarm and audio I/O terminals. The device is built for harsh environments and has a triple-protection rating: IP67 (dust/water), IK10 (vandal resistance) and NEMA 4X (corrosion resistance). It can operate in extreme temperatures ranging from -40°C to 60°C and is powered by either DC 12V or PoE (IEEE 802.3af), with a maximum power draw of 5.0 watts.
