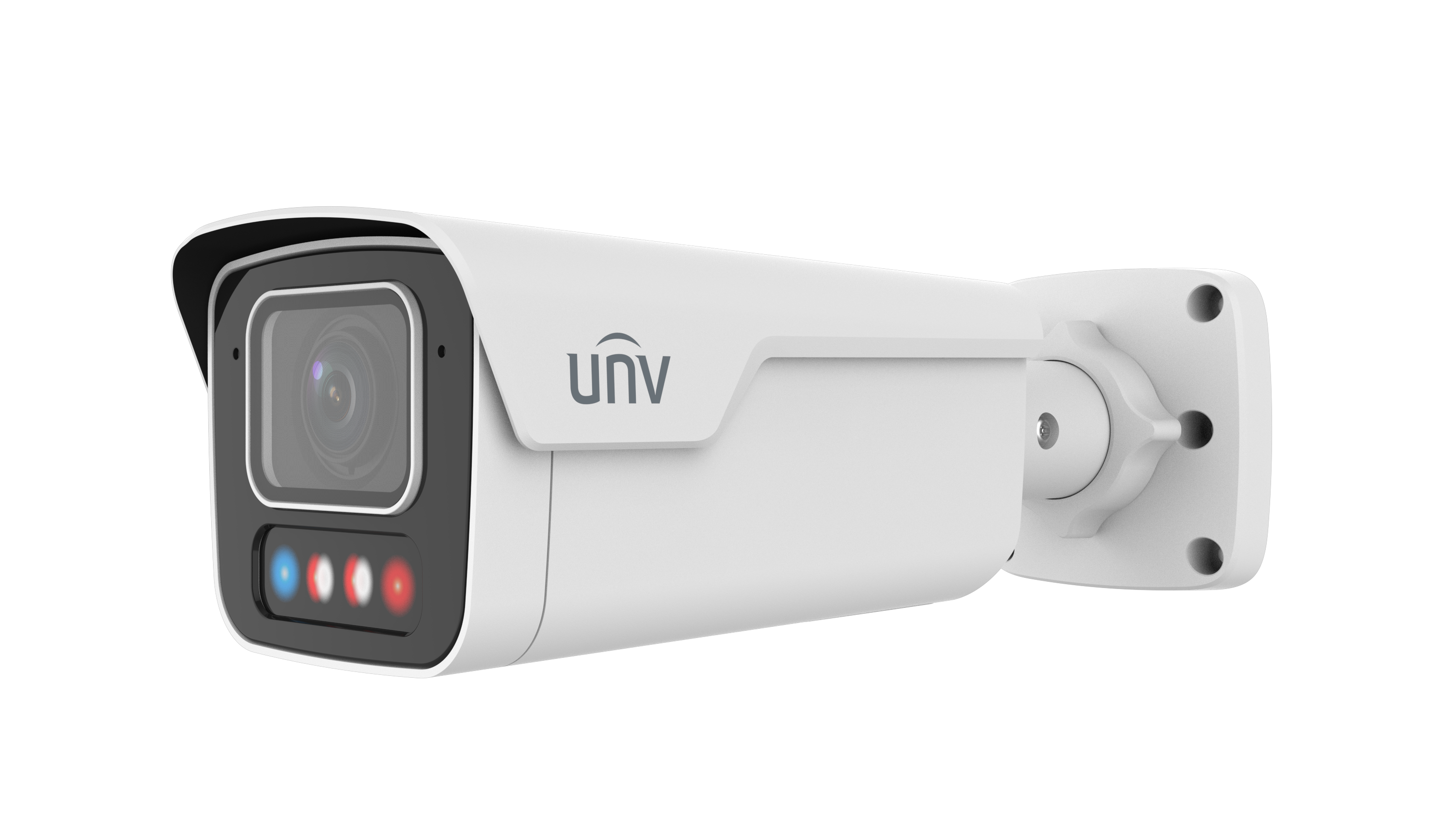

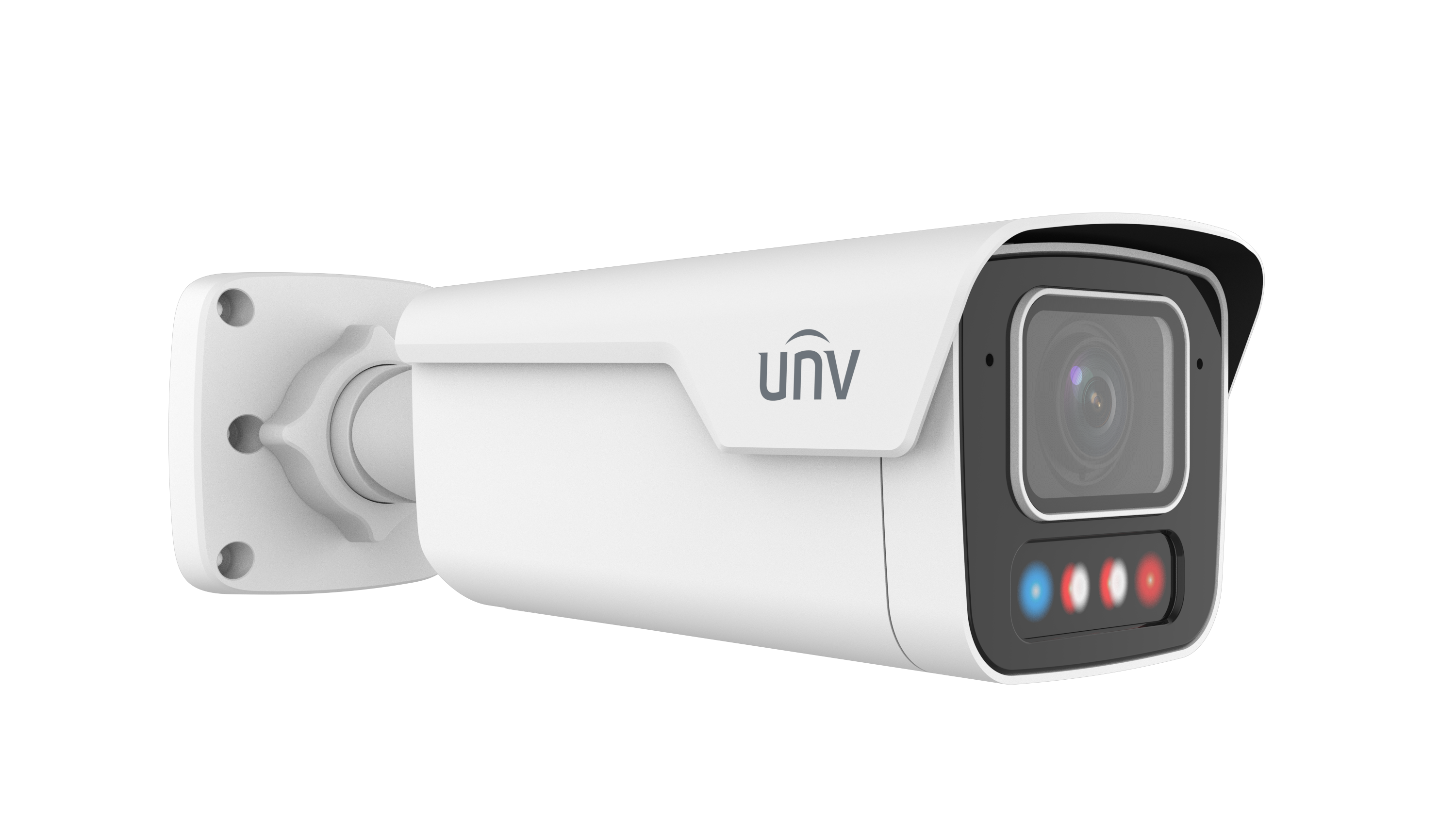

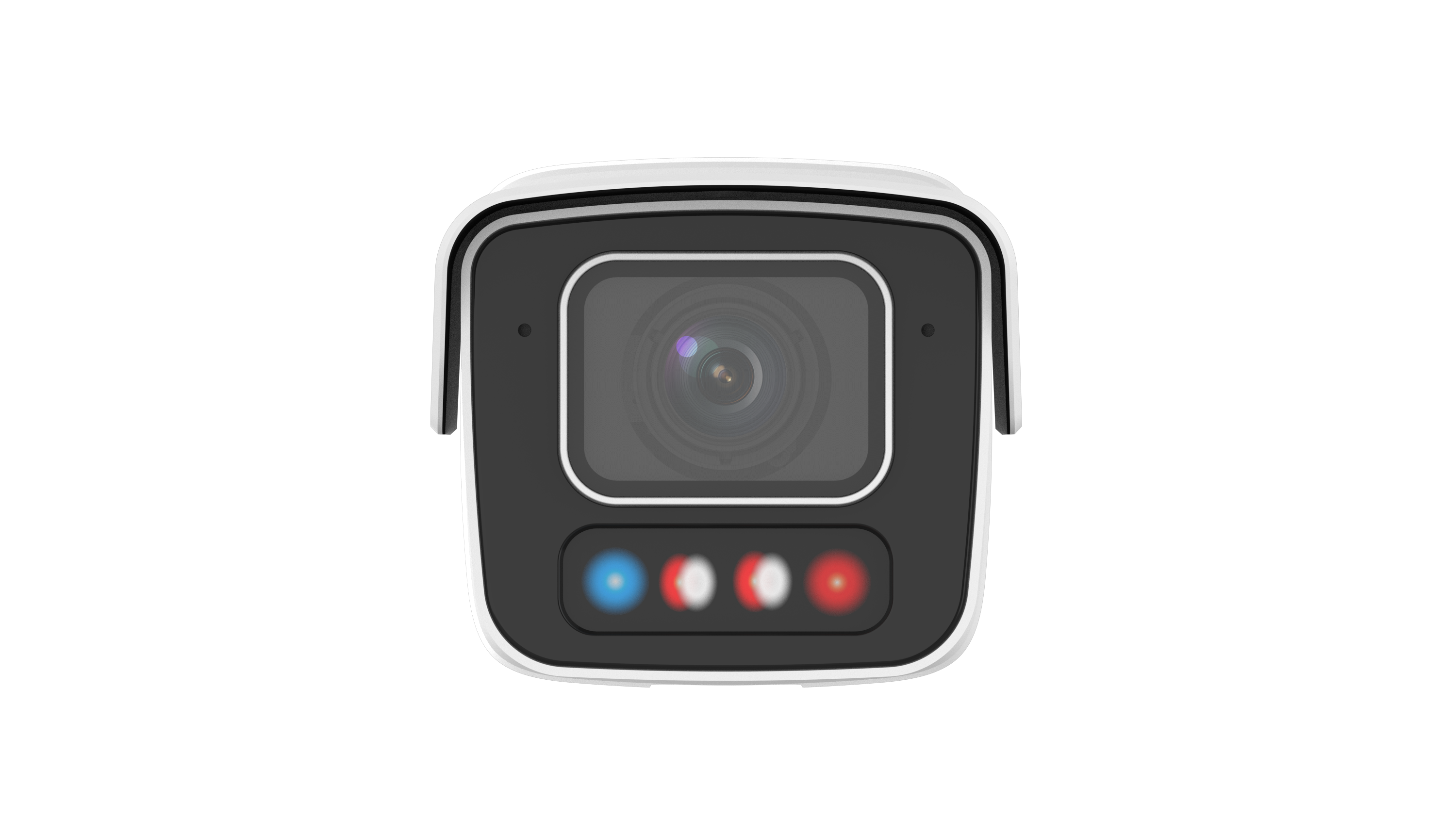

Uniview - IPC2B14SE-ADZKMC-WP-I1 - 4MP OwlView Plus Tri-Guard VF Dual-light Bullet Network Camera
• High quality image with 4 MP, 1/1.8" CMOS sensor
• Features an F1.2 large-aperture lens
• 4 MP (2688 × 1520)@30/25 (default) fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduces false alarm caused by leaves, birds and lights, accurately focusing on human, motor vehicle and non-motor vehicle
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1, built-in mic and speaker
• Smart IR, up to 40 m (131.2 ft) IR distance
• White light, up to 40 m (131.2 ft) warm light distance
• MicroSD, up to 512 GB
• IK10 vandal resistant and IP67 protection
| Camera | |
| Max Resolution / Sensor | 4 MP / 1/1.8" CMOS |
| Min. Illumination (Color) | 0.0005 Lux (F1.2, AGC ON) |
| Day/Night / Shutter | IR-cut filter with auto switch (ICR) / Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N / WDR | > 56 dB / 130 dB |
| Lens | |
| Focal Length / Lens Type | 2.8 to 12 mm / Motorized |
| Iris Type / Iris | Fixed / F1.2 |
| Field of View (H/V/D) | H: 113.5° to 54.6°, V: 61.6° to 30.8°, D: 131.1° to 62.8° |
| DORI Distance | |
| DORI Distance (Detect) | 43.4 m to 186.2 m (142.4 ft. to 610.9 ft) |
| DORI Distance (Observe) | 17.4 m to 74.5 m (57.1 ft. to 244.4 ft) |
| DORI Distance (Recognize) | 8.7 m to 37.2 m (28.5 ft. to 122.1 ft) |
| DORI Distance (Identify) | 4.3 m to 18.6 m (14.1 ft. to 61.0 ft) |
| Illuminator | |
| Supplemental Light | Dual light (IR and Warm Light) |
| Illumination Distance (IR/Warm) | 40 m (131.2 ft) |
| Control / Wavelength | IR On/Off and Light On/Off Auto/Manual / 850 nm |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG (Baseline/Main/High profile) |
| Frame Rate (Main Stream) | 4 MP (2688 × 1520), max. 30 fps |
| Video Bit Rate / Stream | 128 Kbps to 16 Mbps / Triple streams |
| OSD / Privacy Mask / ROI / U-code | Up to 8 OSDs / Up to 4 areas / Support / Support |
| Image | |
| Digital Noise Reduction | 2D/3D DNR |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Features | ASM (Support), HLC (Support), BLC (Support), Defog (Digital defog) |
| Intelligent | |
| Smart Intrusion Prevention | Cross line, intrusion, enter/leave area detection (human/vehicle filtering) |
| Counting / Collection | People Counting (Support flow/crowd density) / Attribute Collection (SIP with color retrieval) |
| Basic Events | Motion, Ultra motion, Tampering, Audio detection, Object removed, Object Left Behind |
| Audio | |
| Compression / Bitrate | G.711U, G.711A / 64 Kbps (Sampling Rate 8 kHz) |
| Two-way Audio / Suppression | Support / Support |
| Storage & Network | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, G, T, M), API, SDK |
| Security | TLS 1.2, DTLS 1.2, Strong Password, Secure Boot, Firmware Encryption, etc. |
| Interface | |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Built-in Mic / Speaker | Built-in dual-mic / Support |
| Network / Video Output | 1 × RJ45 10 M/100 M Base-TX Ethernet / N/A |
| General & Environment | |
| Power / Power Consumption | DC 12 V±25%, PoE (IEEE 802.3af) / Max. 5.0 W |
| Dimensions (L × W × H) | 265.2 mm × 95.2 mm × 82.9 mm (10.4" × 3.7" × 3.3" ) |
| Weight / Material | 0.98 kg (2.16 lb) / Metal + Plastic |
| Protection Rating | IP67, IK10, NEMA 4X |
| Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection / Reset Button | 4 KV / Support |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4), FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863), WEEE (2012/19/EU) |
| Web Client Language | 20 Languages |
This 4-megapixel bullet camera utilizes a large 1/1.8" CMOS sensor and an F1.2 aperture lens. Its defining feature is the motorized varifocal lens, which has a focal length range of 2.8 mm to 12 mm. This allows the horizontal field of view to be adjusted from a wide angle of 113.5° to a telephoto angle of 54.6°. It supports a primary video stream of 2688 x 1520 at 30 frames per second and uses Ultra 265, H.265, H.264, and MJPEG compression. For low-light operation, it is equipped with a dual-light system comprising IR and warm white lights, both of which provide illumination up to 40 metres.
Core imaging technologies include 130 dB true Wide Dynamic Range and 2D/3D Digital Noise Reduction, enhanced by ColorHunter with Wise-ISP and Auto Scene Match for 24-hour, full-colour imaging. Built-in dual microphones and a speaker enable two-way audio, and there are also physical alarm and audio input/output terminals. The device offers comprehensive physical protection, boasting an IP67 rating for dust and water resistance, IK10 certification for vandal resistance, and NEMA 4X certification for corrosion resistance. It operates within an extended temperature range of -40°C to 60°C and can be powered via DC 12V or PoE (IEEE 802.3af), with a maximum power consumption of 5.0 watts.
