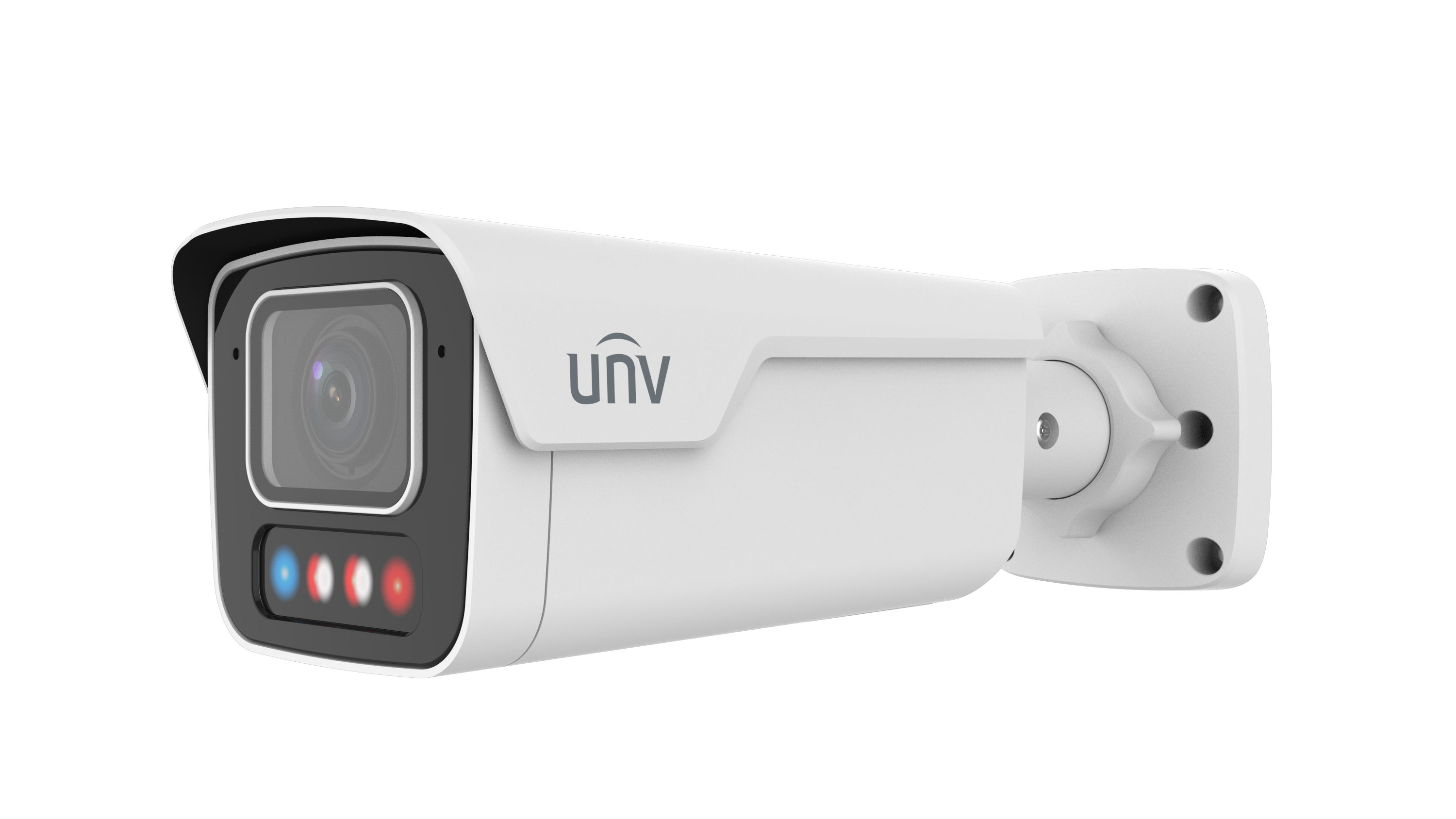

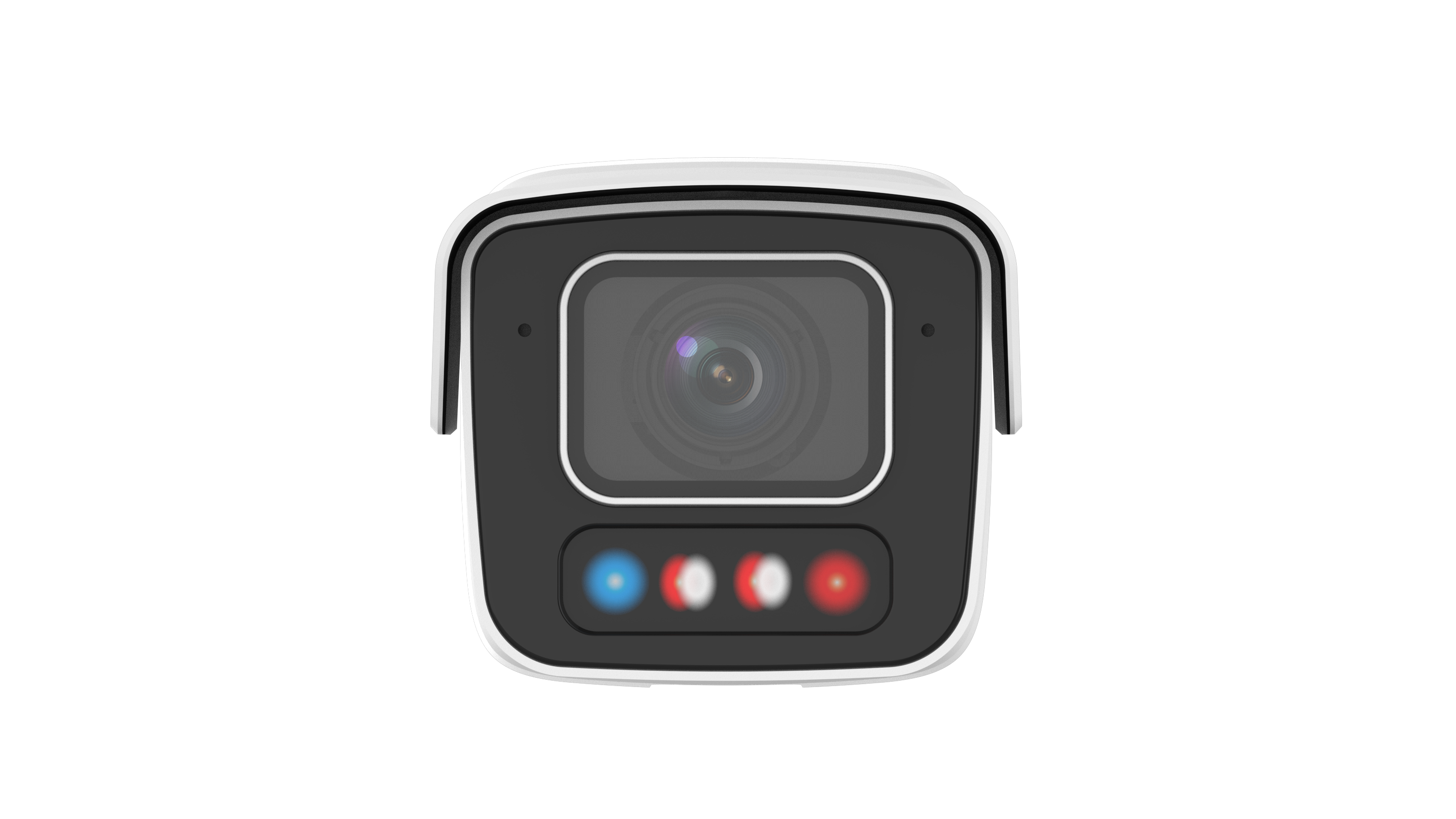

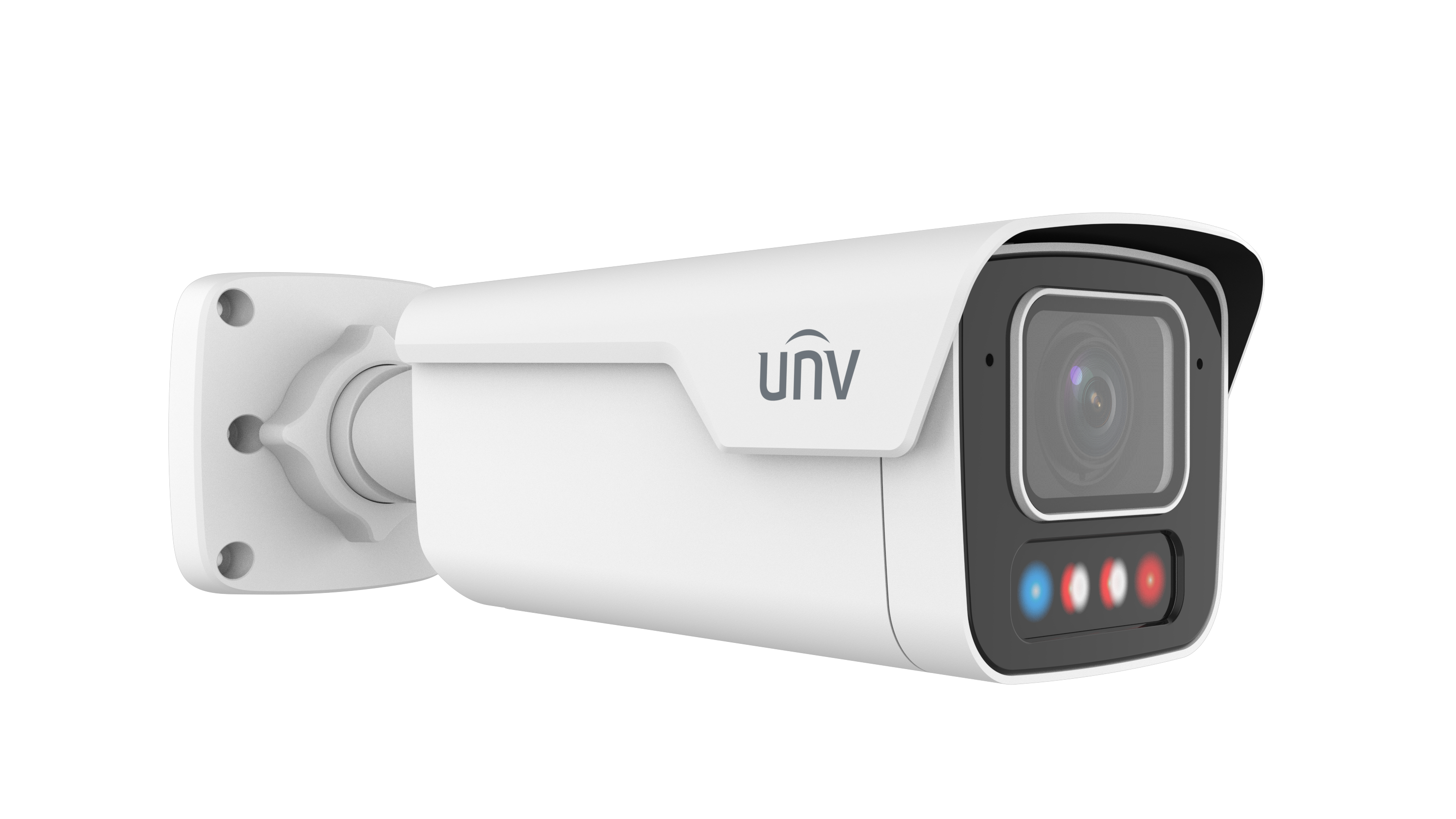

Uniview - IPC2B18SE-ADZKMC-WP-I1N - 8MP OwlView Plus Tri-Guard VF Dual-light Bullet Network Camera
• High quality image with 8 MP, 1/1.8" CMOS sensor
• Features an F1.2 large-aperture lens
• 8 MP (3840 × 2160)@30/25 (default) fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduces false alarm caused by leaves, birds and lights, accurately focusing on human, motor vehicle and non motor vehicle
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1, built-in mic and speaker
• Smart IR, up to 40 m (131.2 ft) IR distance
• White light, up to 40 m (131.2 ft) warm light distance
• MicroSD, up to 512 GB
• IK10 vandal resistant and IP67 protection
| Camera | |
| Max Resolution / Sensor | 8 MP / 1/1.8" CMOS |
| Min. Illumination (Color) | 0.0005 Lux (F1.2, AGC ON) |
| Day/Night / Shutter | IR-cut filter with auto switch (ICR) / Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle (Tilt) | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N / WDR | > 56 dB / 130 dB |
| Lens | |
| Focal Length / Lens Type | 2.8 to 12 mm / Motorized |
| Iris Type / Iris | Fixed / F1.2 |
| Field of View (H/V/D) | H: 111.5° to 54.1°, V: 60.2° to 30.6°, D: 128.7° to 61.9° |
| DORI Distance | |
| DORI Distance (Detect) | 63.0 m to 270.0 m (206.7 ft. to 885.8 ft) |
| DORI Distance (Observe) | 25.2 m to 108.0 m (82.7 ft. to 354.3 ft) |
| DORI Distance (Recognize) | 12.6 m to 54.0 m (41.3 ft. to 177.2 ft) |
| DORI Distance (Identify) | 6.3 m to 27.0 m (20.7 ft. to 88.6 ft) |
| Illuminator | |
| Supplemental Light | Dual light (IR and Warm Light) |
| Illumination Distance (IR/Warm) | 40 m (131.2 ft) |
| Control / Wavelength | IR On/Off and Light On/Off Auto/Manual / 850 nm |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG (Baseline/Main/High profile) |
| Frame Rate (Main Stream) | 8 MP (3840 × 2160), max. 30 fps |
| Video Bit Rate / Stream | 128 Kbps to 16 Mbps / Triple streams |
| Image | |
| Digital Noise Reduction | 2D/3D DNR |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Features | Smart IR (Support), ASM (Support), HLC (Support), BLC (Support), Defog (Digital defog) |
| Intelligent | |
| Smart Intrusion Prevention | Cross line, intrusion, enter/leave area detection (human/vehicle filtering) |
| Counting / Collection | People Counting (Support flow/crowd density) / Attribute Collection (SIP with color retrieval) |
| Basic Events | Motion, Ultra motion, Tampering, Audio detection, Object removed, Object Left Behind, Alarm input, Alarm output |
| Audio | |
| Compression / Bitrate | G.711U, G.711A / 64 Kbps (Sampling Rate 8 kHz) |
| Two-way Audio / Suppression | Support / Support |
| Built-in Mic / Speaker | Built-in dual-mic / Support |
| Storage & Network | |
| Edge Storage / Network Storage | MicroSD, up to 512 GB / ANR, NAS (NFS) |
| Compatible Integration | ONVIF (Profile S, G, T, M), API, SDK |
| Interface | |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Network / Video Output | 1 × RJ45 10 M/100 M Base-TX Ethernet / N/A |
| General & Environment | |
| Power / Power Consumption | DC 12 V±25%, PoE (IEEE 802.3af) / Max. 7.0 W |
| Dimensions (L × W × H) | 265.2 mm × 95.2 mm × 82.9 mm (10.4" × 3.7" × 3.3" ) |
| Weight / Material | 0.86 kg (1.90 lb) / Metal + Plastic |
| Protection Rating | IP67, IK10, NEMA 4X |
| Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection / Reset Button | 4 KV / Support |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4), FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863), WEEE (2012/19/EU) |
| Web Client Language | 20 Languages |
This camera utilizes an 8 MP, 1/1.8" CMOS sensor, providing video resolution up to 3840 × 2160 at 30 frames per second. Video compression is supported by Ultra 265, H.265, H.264, and MJPEG formats across triple video streams. The optical system features a motorized varifocal lens with a 2.8 mm to 12 mm focal range and an F1.2 aperture. This provides a continuously adjustable horizontal field of view from 111.5° (wide) down to 54.1° (tele). The illumination system is a Dual Light type, offering both Smart IR and Warm Light, with both sources supporting a maximum range of 40 meters.
Image enhancement includes 130 dB True Wide Dynamic Range, 2D/3D Digital Noise Reduction, Backlight Compensation, Highlight Compensation, and Digital Defog. ColorHunter technology with Wise-ISP ensures color imaging capability in low-light conditions. The unit is equipped with a built-in dual microphone array and a speaker, enabling two-way audio and active deterrence capabilities, in addition to physical 1-in/1-out audio and alarm interfaces. Advanced analytics include Smart Intrusion Prevention with human/vehicle classification for perimeter detection (cross line, intrusion, enter/leave area), people flow counting, and crowd density monitoring. The camera offers robust environmental protection, rated IP67, IK10 (vandal resistance), and NEMA 4X (corrosion resistance). Power is supplied via DC 12V or PoE (IEEE 802.3af), with a maximum consumption of 7.0 W. It is certified for operation in a wide temperature range of -40 °C to 60 °C.
