Uniview - IPC2B28SA-ADZK-PI-I2A - 8MP Super Starlight WDR IR VF P-IRIS Bullet Network Camera
• High quality image with 8 MP, 1/1.8" CMOS sensor
• 3840 × 2160@30 fps in the main stream, delivers ultra high definition live
• Motorized lens with P-iris, supports accurate control of exposure
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
• People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Traffic monitoring, supports capturing license plate and collecting car information when the car passes tripwire
• Wise-ISP technology, comprehensive improvement in image quality
• Up to 130 dB optical WDR (wide dynamic range)
• DC 12 V, PoE (IEEE 802.3af) power supply
• Alarm I/O: 1/1, audio I/O: 1/1
• IP67, IK10
| Camera | |
| Max Resolution / Sensor | 8 MP / 1/1.8" CMOS |
| Min. Illumination (Color/IR) | 0.001 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night / Shutter | IR-cut filter with auto switch (ICR) / Auto/Manual, 1 to 1/100000 s |
| S/N / WDR | > 56 dB / 130 dB |
| Lens | |
| Focal Length / Optical Zoom | 2.7 to 13.5 mm / 5X |
| Iris Type / Iris | P-iris / F1.2 |
| Field of View (H/V/D) | H: 104.7° to 49.1°, V: 56.4° to 27.9°, D: 128.8° to 60.4° |
| DORI Distance | |
| DORI Distance (Detect) | 98.6 m to 209.9 m (323.3 ft. to 688.7 ft) |
| DORI Distance (Observe) | 39.4 m to 84.0 m (129.3 ft. to 275.5 ft) |
| DORI Distance (Recognize) | 19.7 m to 42.0 m (64.7 ft. to 137.7 ft) |
| DORI Distance (Identify) | 9.9 m to 21.0 m (32.3 ft. to 68.9 ft) |
| Illuminator | |
| Supplemental Light | IR (Dual Light mentioned elsewhere, but IR distance is primary) |
| Illumination Distance (IR) | 80 m (262.5 ft) |
| Control / Wavelength | IR On/Off Auto/Manual / 850 nm |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate (Main Stream) | 8 MP (3840 × 2160), max. 30 fps |
| Video Bit Rate / Stream | 128 Kbps to 16 Mbps / Five streams |
| OSD / Privacy Mask / ROI / U-code | Up to 8 OSDs / Up to 8 areas / Up to 8 areas / Support |
| Intelligent | |
| Smart Intrusion Prevention | Cross line, intrusion, enter/leave area detection (human/vehicle filtering) |
| Traffic Monitoring | Support capturing car license picture and car information (up to 4 lanes) |
| Counting / Exception Detection | People Counting (flow/crowd density) / Object removed, Left Behind, Scene change, Defocus detection |
| Image | |
| Digital Noise Reduction | 2D/3D DNR |
| Flip / Defog / EIS | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise/Anti-clockwise / Digital defog / Support |
| Audio | |
| Compression / Bitrate | G.711U, G.711A / 128 Kbps (Sampling Rate 8 kHz, 16 kHz) |
| Two-way Audio / Built-in Mic | Support / Built-in dual-mic |
| Storage & Network | |
| Edge Storage / Network Storage | MicroSD, up to 512 GB / ANR, NAS (NFS) |
| Compatible Integration | ONVIF (Profile S, G, T, M), API, SDK |
| Security | TLS 1.3, Strong Password, HTTPS Encryption, TLS 1.2, etc. |
| Interface | |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O / Serial Port | 1/1 / 1 × RS485 |
| Network / Video Output | 1 × RJ45 10 M/100 M Base-TX Ethernet / N/A |
| General & Environment | |
| Power / Power Consumption | DC 12 V (±25%), PoE (IEEE 802.3af) / Max. 12.5 W |
| Dimensions (L × W × H) | 268 mm × 96 mm × 82 mm (10.5" × 3.7" × 3.2") |
| Weight / Material | 1 kg (2.2 lb) / Metal + Plastic |
| Protection Rating | IP67, IK10, NEMA 4X |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
| Surge Protection | 6 KV |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130), FCC-SDoC (47 CFR Part15, Subpart B) |
| Safety | CE-LVD (EN IEC 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |

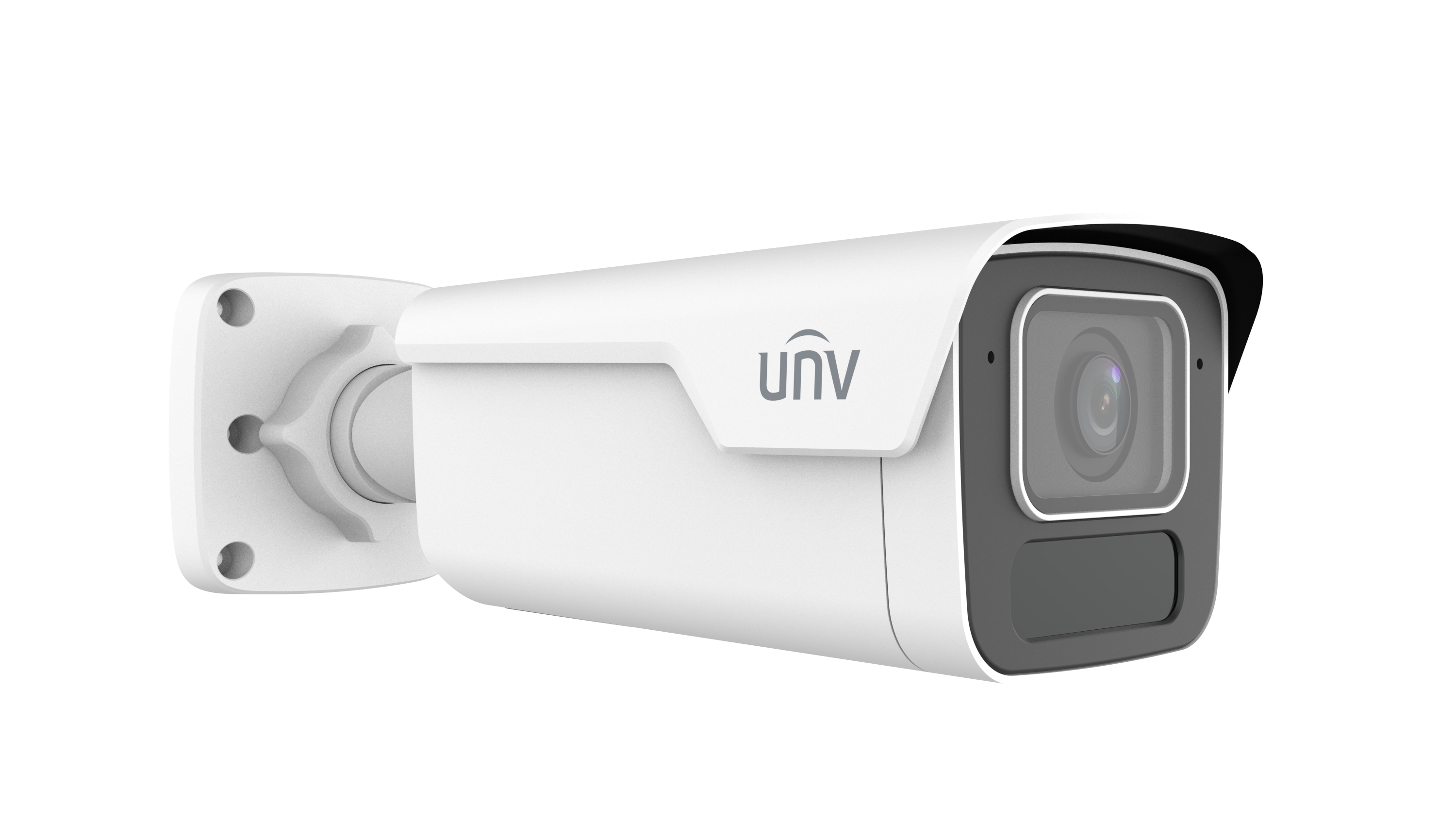

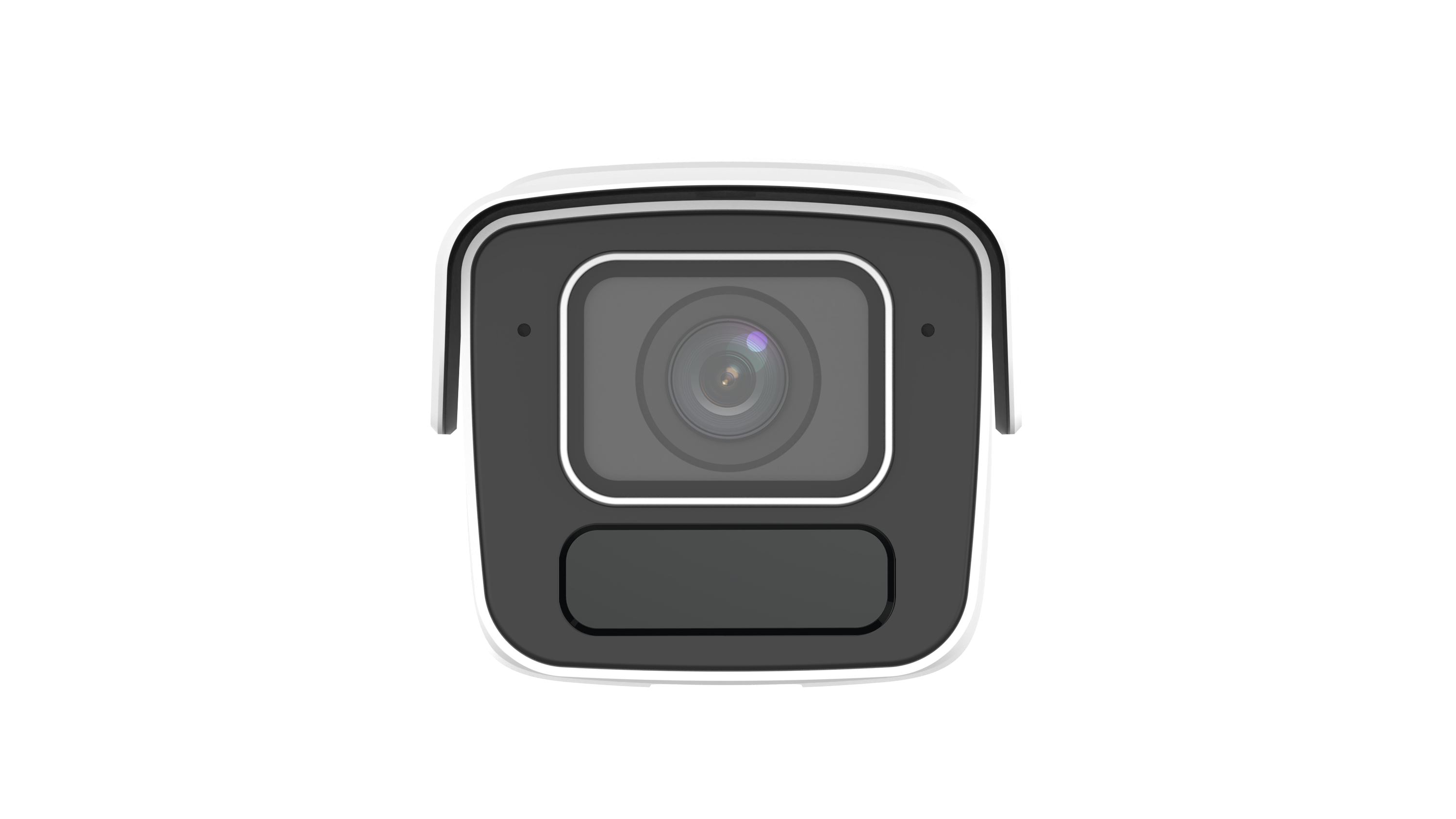

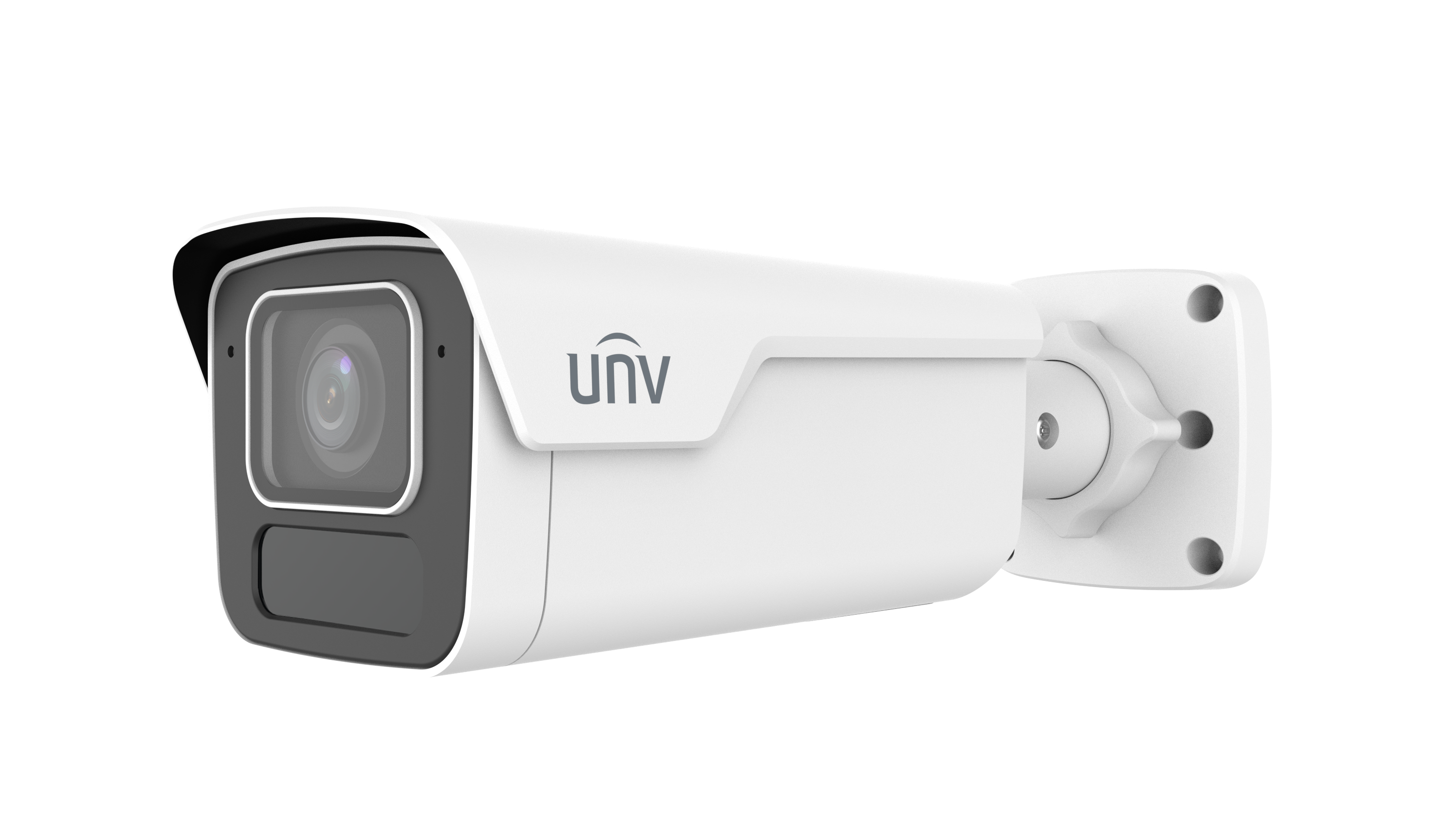

This is an 8 MP Super Starlight WDR IR VF P-IRIS Bullet Network Camera from the Prime IV Series, designed for high-performance surveillance. It features an 3840 × 2160 resolution at 30 fps from a 1/1.8" CMOS sensor. The lens is a motorized varifocal 2.7 mm to 13.5 mm with 5X optical zoom and a P-iris for precise exposure control. Illumination is provided by Smart IR up to 80 meters. The camera utilizes Super Starlight and Wise-ISP technologies for exceptional low-light imaging and features 130 dB Optical WDR for high-contrast scenes. Video is compressed using Ultra 265, H.265, H.264, and MJPEG across five streams.
Intelligent capabilities include Smart Intrusion Prevention that classifies humans and vehicles, People Counting, and specialized Traffic Monitoring (license plate capture). It supports two-way audio via built-in dual microphones and has 1/1 audio and alarm I/O ports. The unit is built for durability with IP67 and IK10 ratings, 6 KV surge protection, and operates in temperatures ranging from -30 °C to 60 °C. Power options are DC 12V or PoE (IEEE 802.3af).
