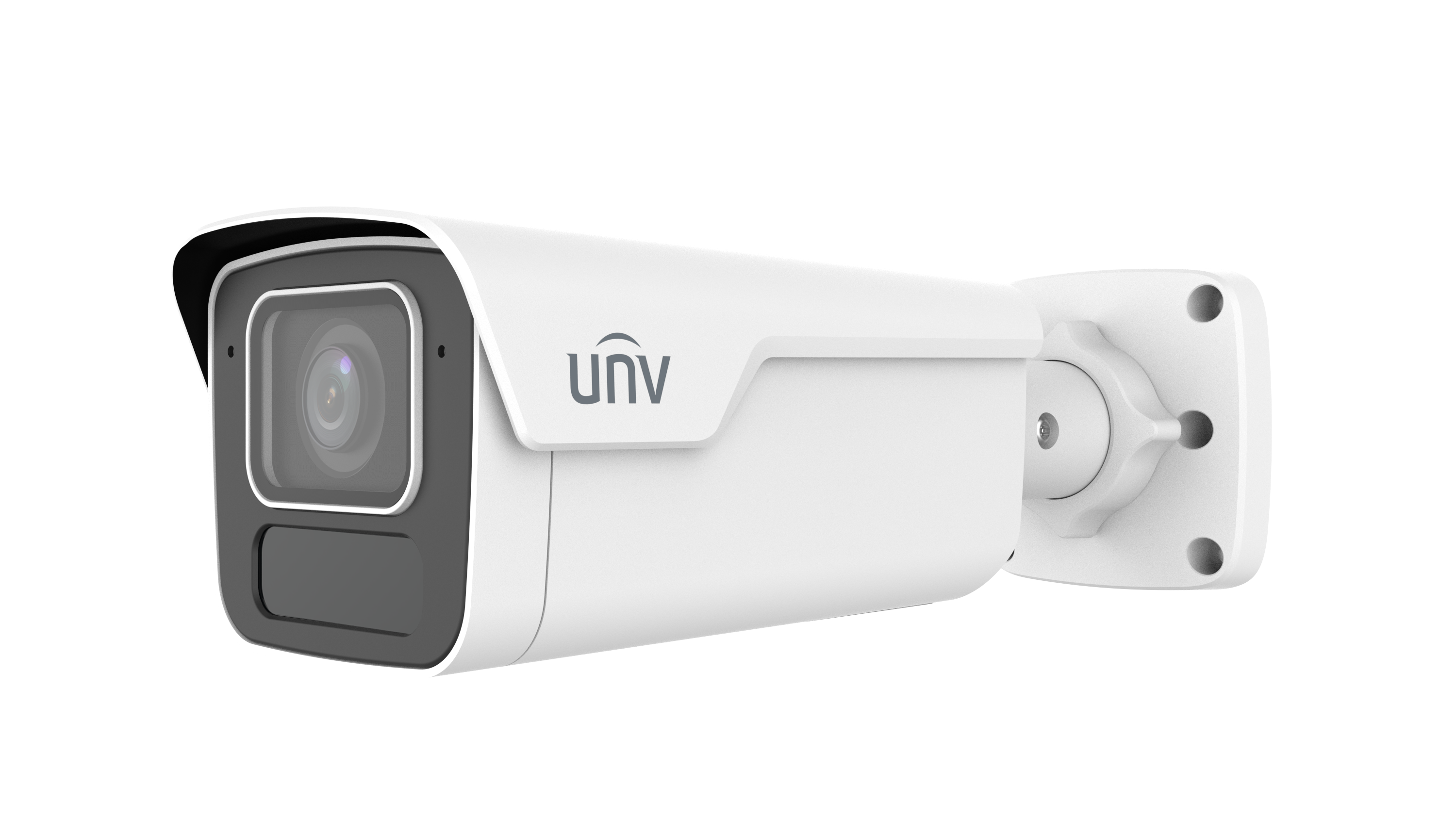

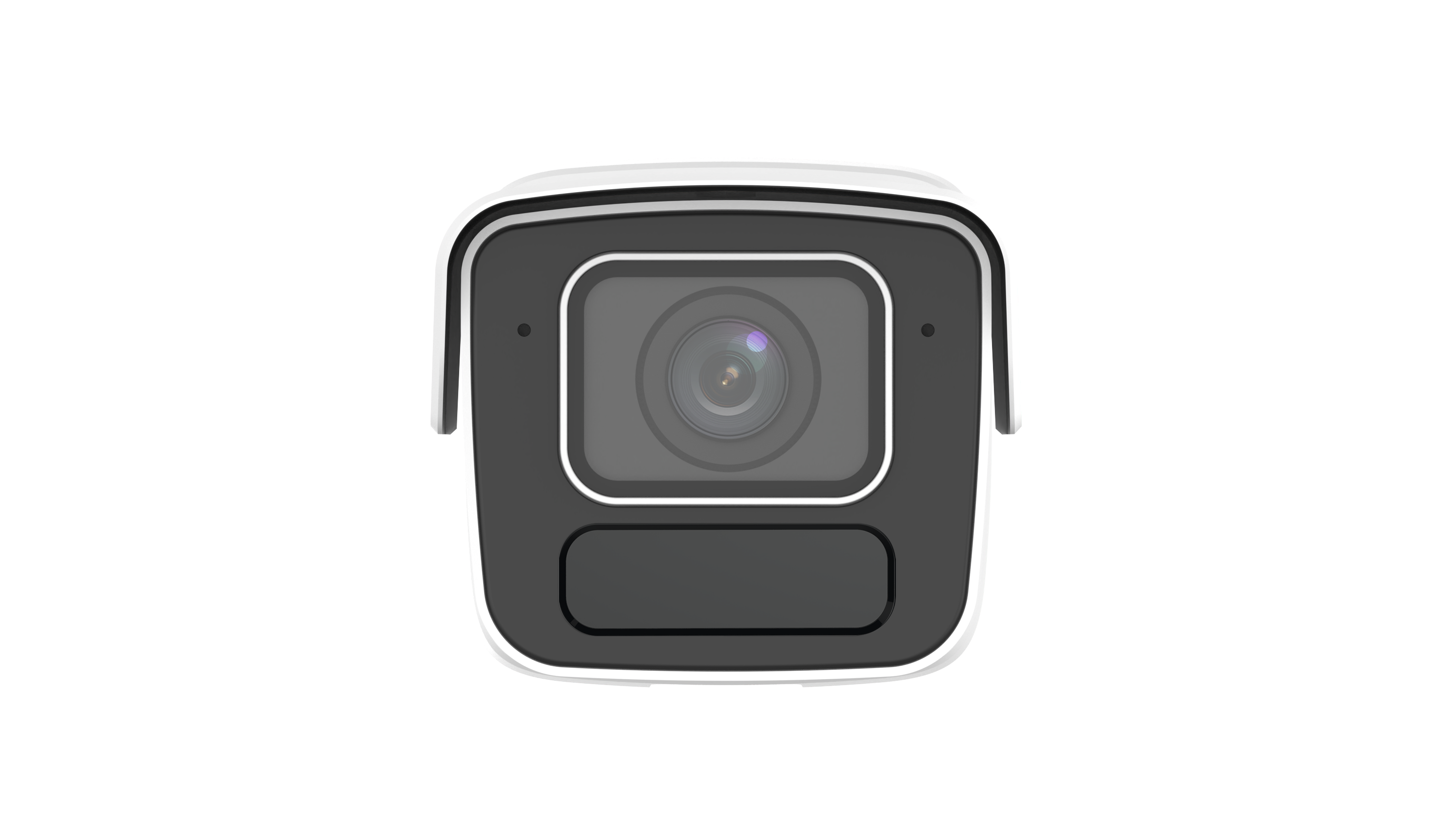

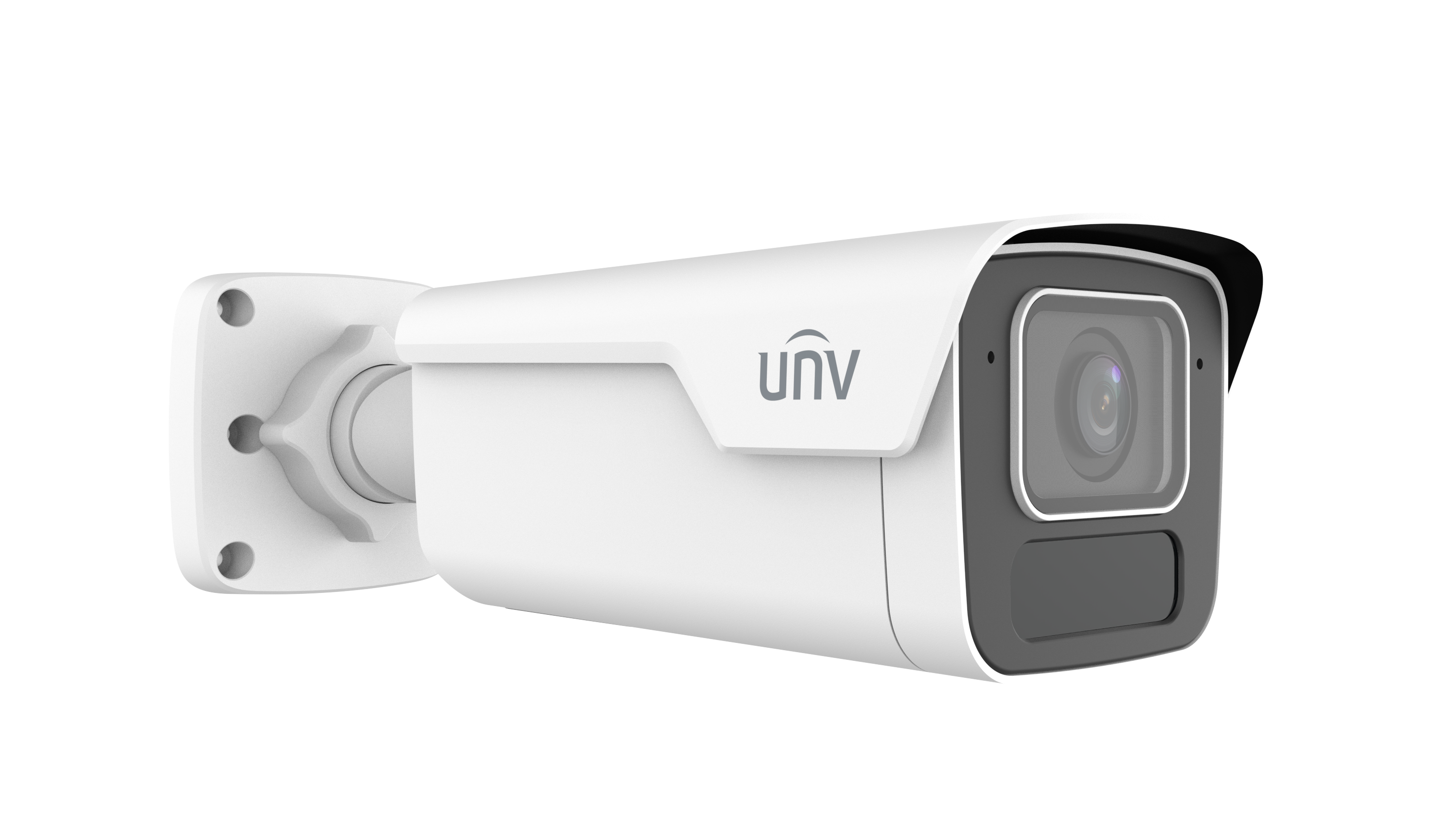

Uniview - IPC2B28SA-ADZK-WP-PI-I2A - 8MP Super Starlight WDR IR VF P-IRIS Bullet Network Camera
• High quality image with 8 MP, 1/1.8" CMOS sensor
• 3840 × 2160@30 fps in the main stream, delivers ultra high definition live
• Motorized lens with P-iris, supports accurate control of exposure
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
• People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Traffic monitoring, supports capturing license plate and collecting car information when the car passes tripwire
• Wise-ISP technology, comprehensive improvement in image quality
• Up to 130 dB optical WDR (wide dynamic range)
• DC 12 V, PoE (IEEE 802.3af) power supply
• Alarm I/O: 1/1, audio I/O: 1/1
• IP67, IK10
| Camera | |
| Max Resolution / Sensor | 8 MP / 1/1.8" CMOS |
| Min. Illumination (Color/IR) | 0.001 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night / Shutter | IR-cut filter with auto switch (ICR) / Auto/Manual, 1 to 1/100000 s |
| S/N / WDR | > 56 dB / 130 dB |
| Lens | |
| Focal Length / Optical Zoom | 2.7 to 13.5 mm / 5X |
| Iris Type / Iris | P-iris / F1.2 |
| Field of View (H/V/D) | H: 104.7° to 49.1°, V: 56.4° to 27.9°, D: 128.8° to 60.4° |
| DORI Distance | |
| DORI Distance (Detect) | 98.6 m to 209.9 m (323.3 ft. to 688.7 ft) |
| DORI Distance (Observe) | 39.4 m to 84.0 m (129.3 ft. to 275.5 ft) |
| DORI Distance (Recognize) | 19.7 m to 42.0 m (64.7 ft. to 137.7 ft) |
| DORI Distance (Identify) | 9.9 m to 21.0 m (32.3 ft. to 68.9 ft) |
| Illuminator | |
| Supplemental Light | IR (0 Lux with IR) |
| Illumination Distance (IR) | 80 m (262.5 ft) |
| Control / Wavelength | IR On/Off Auto/Manual / 850 nm |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate (Main Stream) | 8 MP (3840 × 2160), max. 30 fps |
| Video Bit Rate / Stream | 128 Kbps to 16 Mbps / Five streams |
| OSD / Privacy Mask / ROI / U-code | Up to 8 OSDs / Up to 8 areas / Up to 8 areas / Support |
| Intelligent | |
| Smart Intrusion Prevention | Cross line, intrusion, enter/leave area detection (human/vehicle filtering) |
| Traffic Monitoring | Support capturing car license picture and car information (up to 4 lanes) |
| Counting / Exception Detection | People Counting (flow/crowd density) / Object removed, Left Behind, Scene change, Defocus detection |
| UMD (Ultra Motion Detection) | Support |
| Image | |
| Digital Noise Reduction / EIS | 2D/3D DNR / Support |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
| Flip / Defog | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise/Anti-clockwise / Digital defog |
| Audio | |
| Compression / Bitrate | G.711U, G.711A / 128 Kbps (Sampling Rate 8 kHz, 16 kHz) |
| Two-way Audio / Suppression | Support / Support |
| Built-in Mic | Built-in dual-mic |
| Storage & Network | |
| Edge Storage / Network Storage | MicroSD, up to 512 GB / ANR, NAS (NFS) |
| Compatible Integration | ONVIF (Profile S, G, T, M), API, SDK |
| Security | TLS 1.3, Strong Password, HTTPS Encryption, TLS 1.2, etc. |
| Interface | |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O / Serial Port | 1/1 / 1 × RS485 |
| Network / Video Output | 1 × RJ45 10 M/100 M Base-TX Ethernet / N/A |
| General & Environment | |
| Power / Power Consumption | DC 12 V (±25%), PoE (IEEE 802.3af) / Max. 12.5 W |
| Dimensions (L × W × H) | 268 mm × 96 mm × 82 mm (10.5" × 3.7" × 3.2") |
| Weight / Material | 1 kg (2.2 lb) / Metal + Plastic |
| Protection Rating | IP67, IK10 |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
| Surge Protection | 6 KV |
| Certification | |
| EMC | CE-EMC, FCC-SDoC |
| Safety | CE-LVD, UL/CUL |
| Environment | CE-RoHS, WEEE |
The IPC2B28SA-ADZK-WP-PI-I2A camera features a high-quality 8 MP (3840 × 2160) 1/1.8" CMOS sensor, providing ultra-high definition video at a maximum frame rate of 30 frames per second. The optical system utilizes a motorized varifocal lens with a focal range of 2.7 mm to 13.5 mm, 5X optical zoom. This configuration yields an adjustable horizontal field of view ranging from 104.7° (wide) to 49.1° (tele). The lens incorporates a sophisticated P-iris for precise control of the aperture and depth of field. For night operation, the camera is equipped with Smart IR illumination capable of reaching a distance of 80 meters. It supports multiple video compression formats, including Ultra 265, H.265, H.264, and MJPEG, and can transmit up to five independent video streams.
Image processing features include 130 dB Wide Dynamic Range, which processes scenes with strong lighting contrast to ensure detail is maintained in both bright and dark areas. 2D/3D Digital Noise Reduction is applied to clean up visual noise, particularly in low-light conditions. Other supported image controls are Backlight Compensation, Highlight Compensation, Digital Defog, Electronic Image Stabilization, and various White Balance settings. The camera is constructed for robust outdoor installation, carrying an IP67 ingress protection rating against dust and water immersion, and an IK10 vandal resistance rating against high-impact damage. The operational temperature range is specified from -30 °C to 60 °C (-22 °F to 140 °F). Power can be supplied via DC 12 V or Power over Ethernet, with a maximum power consumption of 12.5 W.
