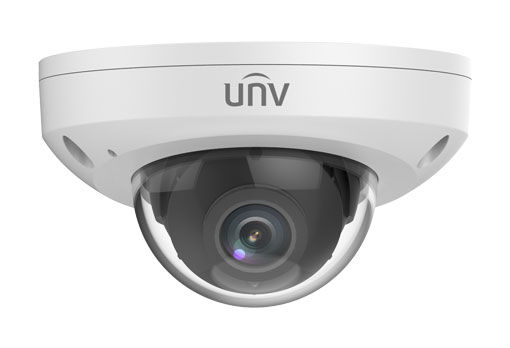

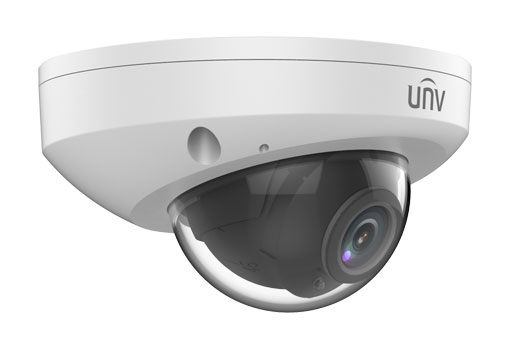

Uniview - IPC312SR-VPF28-C - UNV 2MP Network Fixed Mini Dome(2.8mm,30m IR,SD Slot,3 Axis,PoE,Build-in MicroPhone,Audio,H.265)
Part number:
IPC312SR-VPF28-C
Price:
UNV 2MP Network Fixed Mini Dome(2.8mm,30m IR,SD Slot,3 Axis,PoE,Build-in MicroPhone,Audio,H.265)
Optics:
- Day/night functionality
- Smart IR, up to 15m (49ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Car-grade LEDs, brighter and uniform light compensation
Compression:
- Ultra 265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- Customized OSD
Network:
- ONVIF Conformance
Structure:
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide voltage range of ±25%
- Built-in microphone
- IK10 vandal resistant
- IP66
| IPC312SR-VPF28-C | IPC312SR-VPF40-C | |||||||
| Camera | ||||||||
| Sensor | 1/2.9", 2.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 45 | 18 | 9 | 4.5 | ||||
| 4.0 | 64.3 | 25.7 | 12.9 | 6.4 | ||||
| Angle of View (H) | 107.8° | 82.0° | ||||||
| Angle of View (V) | 56.7° | 41.4° | ||||||
| Angle of View (O) | 140.2° | 100.9° | ||||||
| Adjustment angle | Pan: 0° ~ 90° | Tilt: 0° ~ 65° | Rotate: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Minimum Illumination | Colour: 0.005Lux (F2.0, AGC ON) 0Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | ≥52dB | |||||||
| IR Range | Up to 15m (49ft) IR range | |||||||
| Defog | Digital Defog | |||||||
| WDR | DWDR | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| 9:16 Corridor Mode | Supported | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 8 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Audio | ||||||||
| Audio Compression | G.711 | |||||||
| Two-way audio | Supported | |||||||
| Suppression | Supported | |||||||
| Sampling Rate | 8KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, Up to 256GB | |||||||
| Network Storage | ANR | |||||||
| Network | |||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||
| Interface | |||
| Audio I/O | audio cable | ||
| Input: impedance 35kΩ; amplitude 2V [p-p] | |||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||
| Built-in Mic | Supported | ||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||
| General | |||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||
| Power consumption: Max 4.5W | |||
| Dimensions (Ø x H) | Φ110 x 61mm (Ø4.3” x 2.4”) | ||
| Weight | 0.25kg (0.55lb) | ||
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
| Ingress Protection | IP66 | ||
| Vandal Resistant | IK10 | ||
