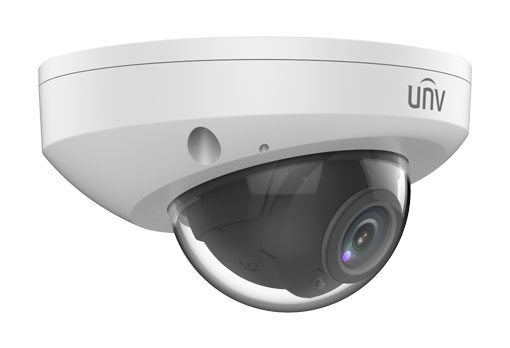

Uniview - IPC314SR-DVPF36 - 4MP Network Fixed Mini Dome Camera 3.6mm,30m IR,WDR
Part number:
IPC314SR-DVPF36
Price:
UNV 4MP Network Fixed Mini Dome(3.6mm,30m IR,WDR,SD Slot,3 Axis,PoE,Built-in MicroPhone,Audio)
Features:
- 1/3",progressive scan,CMOS
- Up to 2592×1520 resolution,20fps
- 2.8mm/3.6mm optional
- Smart IR, up to 15m IR distance
- 2D/3D DNR, ROI, 9:16 corridor mode
- Ultra 265,H.265,ONVIF
- DC12V,PoE.Wide voltage range of ±25%
- IP67
- IK10
Optics:
- Day/night functionality
- Smart IR, up to 15m (49ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Up to 120dB Optical WDR (Wide Dynamic Range)
Compression:
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
Network:
- ONVIF Conformance
Structure:
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide voltage range of ±25%
- Built-in microphone
- IK10 vandal resistant
- IP67
- 3-Axis
| IPC314SR-DVPF28 | IPC314SR-DVPF36 | ||||||||
| Camera | |||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | ||||||||
| Lens | 2.8mm@F2.0 | 3.6mm@F2.0 | |||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | |||||
| 3.6 | 81 | 32.4 | 16.2 | 8.1 | |||||
| Angle of View (H) | 104.4° | 76.8° | |||||||
| Angle of View (V) | 54.4° | 44.1° | |||||||
| Angle of View (O) | 135.7° | 99.8° | |||||||
| Adjustment angle | Pan: 0° ~ 90° | Tilt: 0° ~ 65° | Rotate: 0° ~ 360° | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Minimum Illumination | Colour: 0.03Lux (F2.0, AGC ON) 0Lux with IR | ||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| S/N | ≥55 dB | ||||||||
| IR Range | Up to 15m (49ft) IR range | ||||||||
| wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Defog | Digital Defog | ||||||||
| WDR | 120dB | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||||
| Frame Rate | Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| 9:16 Corridor Mode | Supported | ||||||||
| OSD | Up to 8 OSDs | ||||||||
| Privacy Mask | Up to 8 areas | ||||||||
| ROI | Up to 8 areas | ||||||||
| Motion Detection | Up to 4 areas | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
| Dewarping | Support | ||||||||
| HLC | Support | ||||||||
| BLC | Support | ||||||||
| Smart | |||||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||||
| Audio | |||||||||
| Audio Compression | G.711 | ||||||||
| Suppression | Supported | ||||||||
| Suppression | Supported | ||||||||
| Sampling Rate | 8KHZ | ||||||||
| Storage | |||||||||
| Edge Storage | Micro SD, Up to 256GB | ||||||||
| Network Storage | ANR, NAS(NFS) | ||||||||
| Network | |||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||||
| Client | EZStation EZView EZLive | ||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||||
| Interface | |||||||||
| Audio I/O | Audio cable | ||||||||
| Input: impedance 35kΩ; amplitude 2V [p-p] | |||||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||||||
| Built-in Mic | Supported | ||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||||
| Certifications | |||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||||
| General | |||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
| Power consumption: Max 4.5W | |||||||||
| Dimensions (Ø x H) | Φ110 x 61mm (Ø4.3” x 2.4”) | ||||||||
| Net Weight | 0.25kg (0.55lb) | ||||||||
| Material | Metal + Plastic | ||||||||
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Strorage Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| surge protection | 2KV | ||||||||
| Ingress Protection | IP67 | ||||||||
| Vandal Resistant | IK10 | ||||||||
