UNV - IPC318SB-ADF28KMC-DL-I1 - 8MP HD Intelligent Light and Audible Warning Fixed Mini Dome

Product Overview

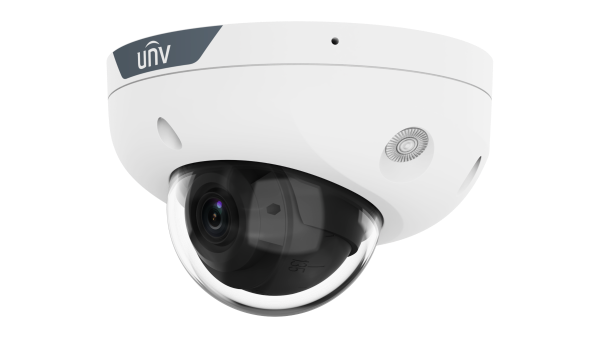

The Uniview IPC318SB-ADF28KMC-DL-I1 is an 8MP ColorHunter intelligent dual-light mini dome camera with Wise-ISP technology and a 2.8 mm fixed lens. It combines full-color imaging, Smart Intrusion Prevention, people counting, 130 dB true WDR, and integrated light-and-audible warning functions.

The camera supports 4K video at up to 30 fps, built-in dual microphones and speaker, two-way audio, alarm input/output, microSD storage up to 512 GB, and IP67/IK10 protection.

Key Configuration

Model: IPC318SB-ADF28KMC-DL-I1 | Resolution: 8MP, 3840 × 2160 at up to 30 fps | Lens: 2.8 mm fixed, F1.6 | Connectivity: 10/100 Mbps RJ45 with ONVIF Profile S/G/T/M | Protection: IP67, IK10

Key Features

• · 8MP 1/2.7-inch CMOS sensor with 3840 × 2160 video at up to 30 fps
• · ColorHunter with Wise-ISP technology for 24-hour full-color imaging
• · 2.8 mm fixed wide-angle lens with 104° horizontal field of view
• · Dual-light illumination with infrared and warm light up to 30 m each
• · 130 dB true WDR, 2D/3D DNR, HLC, BLC, and digital defog
• · Smart Intrusion Prevention with cross-line, intrusion, enter-area, and leave-area detection
• · Target classification and false-alarm filtering for people, vehicles, and non-motor vehicles
• · People-flow counting and crowd-density monitoring
• · Built-in dual microphones and speaker with two-way audio
• · 1 alarm input and 1 alarm output, microSD storage up to 512 GB, IP67, and IK10 protection

Technical Context

ColorHunter with Wise-ISP is designed to preserve color detail in low-light scenes, while dual-light illumination combines infrared and warm light up to 30 m. Smart Intrusion Prevention classifies detected targets to reduce false alarms, and the integrated speaker enables audible warnings at the camera location.

Installation Notes

The metal mini-dome housing supports pan adjustment from -48° to 48°, tilt from 0° to 80°, and rotation from 0° to 360°. It operates from -30°C to 60°C with humidity up to 95% RH, non-condensing. Power can be supplied through DC 12 V or IEEE 802.3af PoE. Optional junction-box, wall, slant, pole, pendant, and corner-mount accessories are available.
