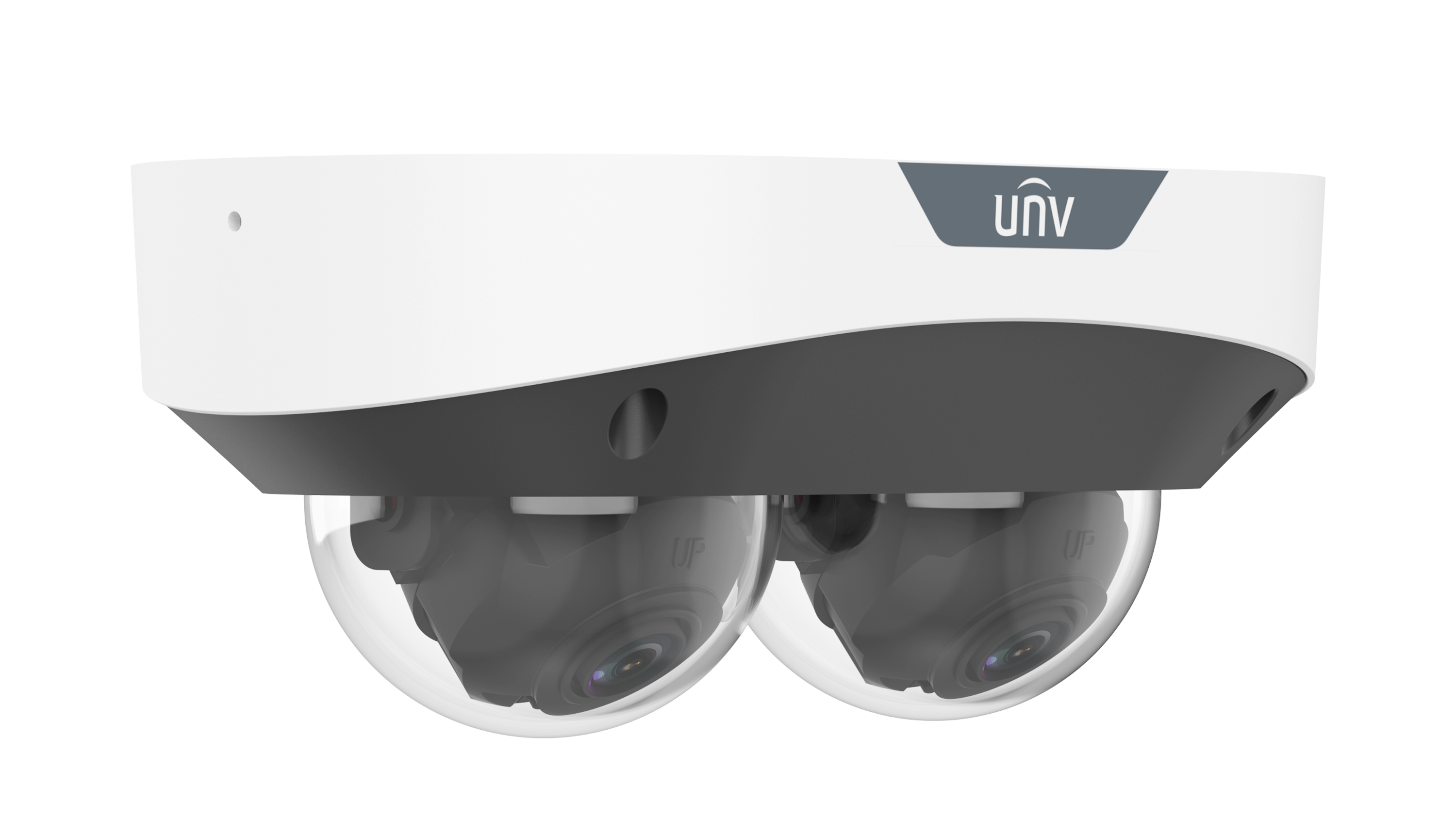

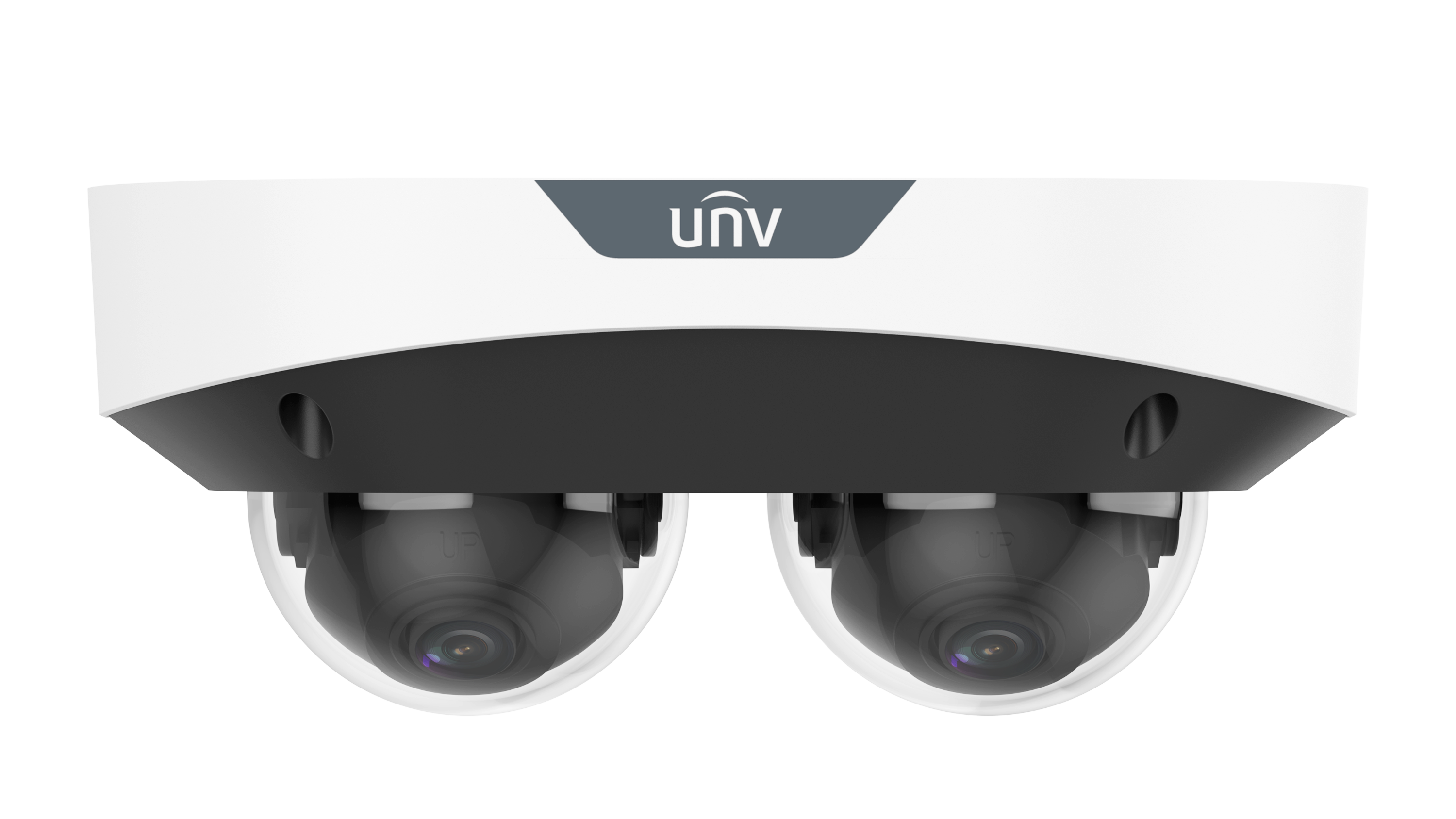

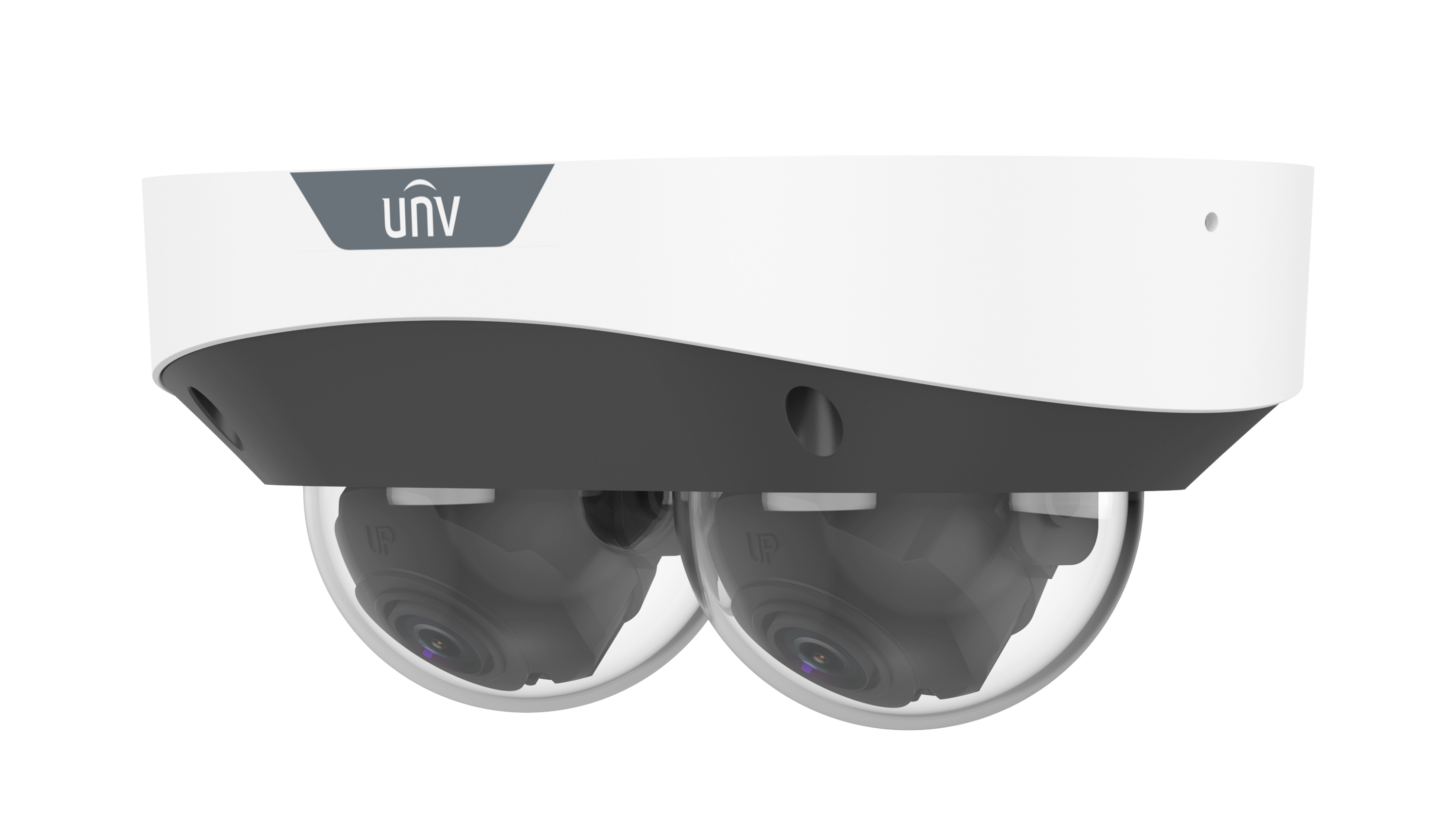

Uniview - IPC3222SS-ADF40K-I1 - UNV 2MP Dual Lens Non-Splicing Dome Camera, 4.0mm
Part number:
IPC3222SS-ADF40K-I1
Price:
2MP Dual Lens Non-Splicing Dome Camera, 2.8mm Lens
Features:
- High quality image with 2*2MP resolution, 1/2.8"CMOS sensor
- Single IP with dual channels
- 2MP (1920*1080)@30/25fps; 720P (1280*720) @30/25fps
- Ultra 265, H.264,H.265, MJPEG
- Both channels support intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and motor vehicle and non-motor vehicle
- Intelligent (Only Channel 1)
- Intelligent People Flow Counting and Crowd Density Monitoring (Only Channel 1)
- 130dB true WDR technology enables clear image in strong light scene
- Built-in two Mics
- Supports 512 GB Micro SD card
- DC12V or PoE(IEEE 802.3af) power supply
- IP67 protection and IK10 vandal resistant
- 3-Axis
| IPC3222SS-ADF28K-I1 | |||
| Channel | Channel 1 | Channel 2 | |
| Camera | |||
| Max Resolution | 2MP | 2MP | |
| Sensor | 1/2.8" CMOS | 1/2.8" CMOS | |
| Min. Illumination | Colour: 0.003 lux (F1.6, AGC ON) 0 lux with IR on | Colour: 0.003 lux (F1.6, AGC ON) 0 lux with IR on | |
| Day/Night | IR-cut filter with auto switch (ICR) | IR-cut filter with auto switch (ICR) | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | Auto/Manual, 1 ~ 1/100000s | |
| Adjustment Angle | Pan: 0° ~ 180°, Tilt: 0° ~ 66°, Rotate: 0° ~ 346° | Pan: 0° ~ 180°, Tilt: 0° ~ 66°, Rotate: 0° ~ 346° | |
| S/N | >52dB | >52dB | |
| WDR | 130dB | 130dB | |
| Lens | |||
| Focal Length | 2.8 mm | 2.8 mm | |
| Iris Type | Fixed | Fixed | |
| Iris | F1.6 | F1.6 | |
| Field of View (H) | 100.2° | 100.2° | |
| Field of View (V) | 54.5° | 54.5° | |
| Field of View (D) | 104.92° | 104.92° | |
| Lens Type | Fixed | Fixed | |
| DORI | |||
| DORI Distance(Lens) | 2.8mm | 2.8mm | |
| DORI Distance(Detect) | 43.4m(142.3ft) | 43.4m(142.3ft) | |
| DORI Distance(Observe) | 17.4m(57.1ft) | 17.4m(57.1ft) | |
| DORI Distance(Recognize) | 8.7m(28.5ft) | 8.7m(28.5ft) | |
| DORI Distance(Identify) | 4.3m(14.1ft) | 4.3m(14.1ft) | |
| Illuminator | |||
| Supplemental Light | IR | IR | |
| Illumination Distance(IR) | 30 m (98.4 ft) | 30 m (98.4 ft) | |
| IR On/Off Control | Auto/Manual | Auto/Manual | |
| Wavelength | 850 nm | 850 nm | |
| Video | |||
| Video Compression | Ultra 265|H.265|H.264|MJPEG | Ultra 265|H.265|H.264|MJPEG | |
| H.264 Code Profile | Baseline profile, Main profile, High profile | Baseline profile, Main profile, High profile | |
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |
| Video Bit Rate | 128 Kbps ~ 16 Mbps | 128 Kbps ~ 16 Mbps | |
| U-code | Support | Support | |
| OSD | Up to 8 OSDs | Up to 8 OSDs | |
| Privacy Mask | Up to 4 areas | Up to 4 areas | |
| ROI | Up to 8 areas | Up to 8 areas | |
| Video Stream | Triple Streams | Triple Streams | |
| Image | |||
| White Balance | Auto|Outdoor|Fine Tune|Sodium Lamp|Locked|Auto2 | Auto|Outdoor|Fine Tune|Sodium Lamp|Locked|Auto2 | |
| Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR | |
| Smart IR | Support | Support | |
| Flip | Normal|Flip Vertical|Flip Horizontal|180°|90°Clockwise|90°Anti-clockwise | Normal|Flip Vertical|Flip Horizontal|180°|90°Clockwise|90°Anti-clockwise | |
| Dewarping | N/A | N/A | |
| HLC | Support | Support | |
| BLC | Support | Support | |
| Defog | Digital Defog | Digital Defog | |
| Image Stabilization | N/A | N/A | |
| Intelligent | |||
| Smart Intrusion Prevention | Support False Alarm Filtering: Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection | Support False Alarm Filtering: Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection | |
| Recognition | Face capture | N/A | |
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | N/A | |
| Events | |||
| Basic Detection | Motion Detection|Ultra Motion Detection|Tampering Alarm|Audio Detection | Motion Detection|Ultra Motion Detection|Tampering Alarm|Audio Detection | |
| General Function | Watermark|IP Address Filtering|Access Policy|ARP Protection|RTSP Authentication|User Authentication|HTTP Authentication|Alarm Input|Alarm Output | Watermark|IP Address Filtering|Access Policy|ARP Protection|RTSP Authentication|User Authentication|HTTP Authentication|Alarm Input|Alarm Output | |
| Audio | |||
| Audio Compression | G.711U|G.711A | G.711U|G.711A | |
| Audio Bitrate | 64 Kbps | 64 Kbps | |
| Two-way Audio | Support | Support | |
| Suppression | Support | Support | |
| Sampling Rate | 8 KHz | 8 KHz | |
| Storage | |||
| Edge Storage | Micro SD, up to 512 GB | Micro SD, up to 512 GB | |
| Network Storage | ANR|NAS (NFS) | ANR|NAS (NFS) | |
| Network | |||
| Protocols | IPv4|IPv6|IGMP|ICMP|ARP|TCP|UDP|DHCP|PPPoE|RTP|RTSP|RTCP|RTMP|DNS|DDNS|NTP|FTP|UPnP|HTTP|HTTPS|SMTP|802.1x|SNMP|QoS|SSL/TLS|SSH | IPv4|IPv6|IGMP|ICMP|ARP|TCP|UDP|DHCP|PPPoE|RTP|RTSP|RTCP|RTMP|DNS|DDNS|NTP|FTP|UPnP|HTTP|HTTPS|SMTP|802.1x|SNMP|QoS|SSL/TLS|SSH | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T)| API|SDK | ONVIF (Profile S, Profile G, Profile T)| API|SDK | |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | Up to 32 users. 3 user levels: administrator, common user and operator | |
| Security | Password Protection|Strong Password|HTTPS Encryption|Export Operation Logs|Basic and Digest Authentication for RTSP|Digest Authentication for HTTP|TLS 1.2|WSSE and Digest Authentication for ONVIF | Password Protection|Strong Password|HTTPS Encryption|Export Operation Logs|Basic and Digest Authentication for RTSP|Digest Authentication for HTTP|TLS 1.2|WSSE and Digest Authentication for ONVIF | |
| Client | UNV-Link| UNV-Link Pro|EZStation | UNV-Link| UNV-Link Pro|EZStation | |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above|Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above|Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |
| Interface | |||
| Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p]|1 Output: impedance 600Ω; amplitude 2V [p-p] | 1 Input: impedance 35kΩ; amplitude 2V [p-p]|1 Output: impedance 600Ω; amplitude 2V [p-p] | |
| Alarm I/O | 1/1 | 1/1 | |
| Serial Port | N/A | N/A | |
| Built-in Mic | Built-in two mics | Built-in two mics | |
| Built-in Speaker | N/A | N/A | |
| WIFI | N/A | N/A | |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | 1 x RJ45 10M/100M Base-TX Ethernet | |
| Video Output | N/A | N/A | |
| Certification | |||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) | |
| Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) | IP67 (IEC 60529) IK10 (IEC 62262) | |
| General | |||
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 8.2W | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 8.2W | |
| Power Interface | Ø 5.5 mm coaxial power plug | Ø 5.5 mm coaxial power plug | |
| Dimensions | 176×104×72mm (6.9” × 4.1’’ ×2.8”) | 176×104×72mm (6.9” × 4.1’’ ×2.8”) | |
| Weight | 0.62kg(1.37lb) | 0.62kg(1.37lb) | |
| Material | Metal | Metal | |
| Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |
| Storage Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |
| Surge Protection | 4KV | 4KV | |
| Reset Button | Support | Support | |
| Web Client Language | 20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese | 20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese | |
